FPC 7160
15.6” Industrial Panel PC
2.6 USB DONGLE INSTALLATION (FPC7160 ONLY)
The installation for an USB dongle is described in this section.
Step 1: Remove the access panel and brackets as described in the HDD installation instructions.

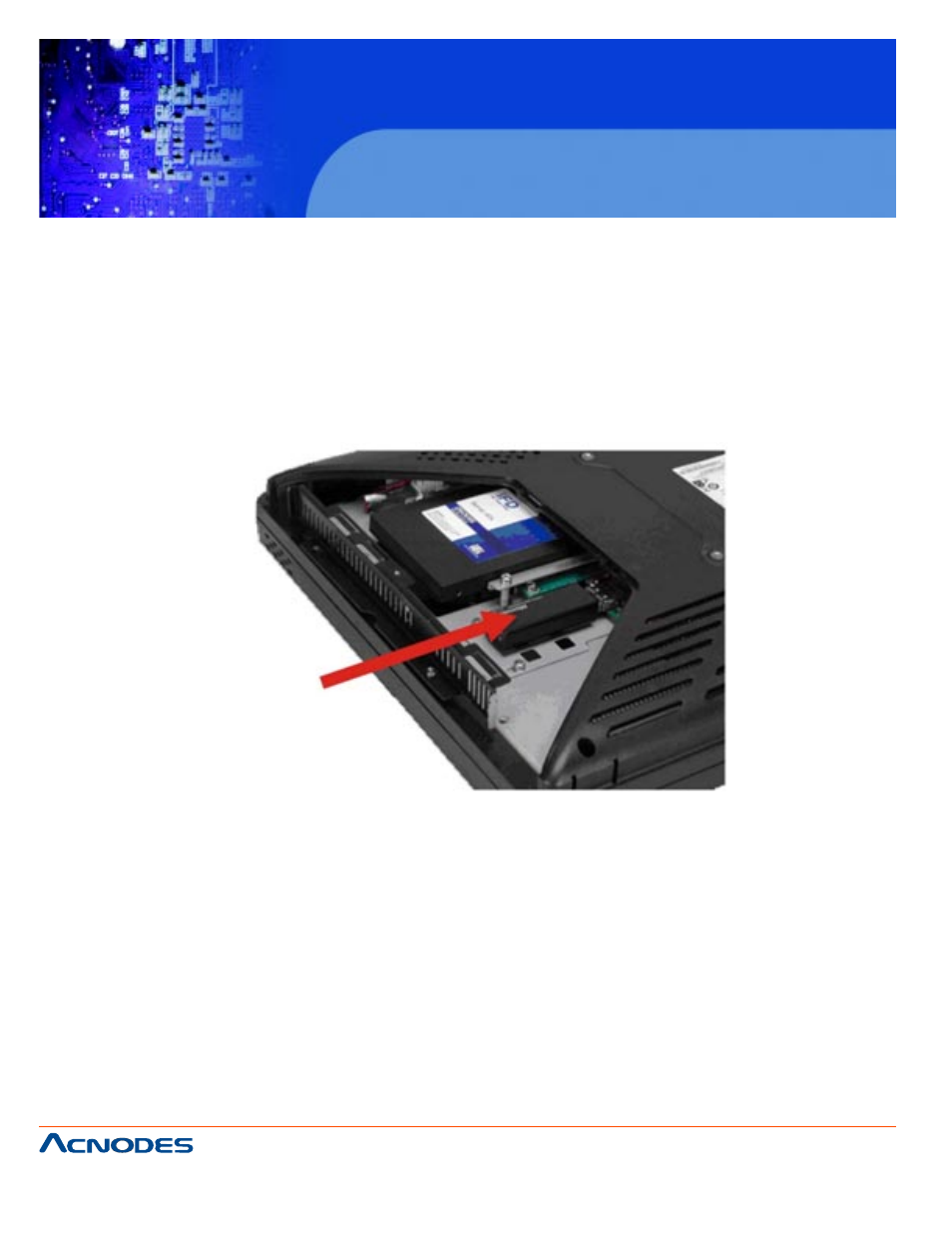

Step 2: Locate the USB dongle connector and install the USB dongle as shown below.
Step 3: Replace the bracket, access panel and screws.
