FPC 7160

15.6” Industrial Panel PC

2.7.1 ACCESS THE JUMPERS

To access the jumpers, please remove the back panel and the internal aluminum chassis. To remove the
back panel, please refer to Section 4.3.

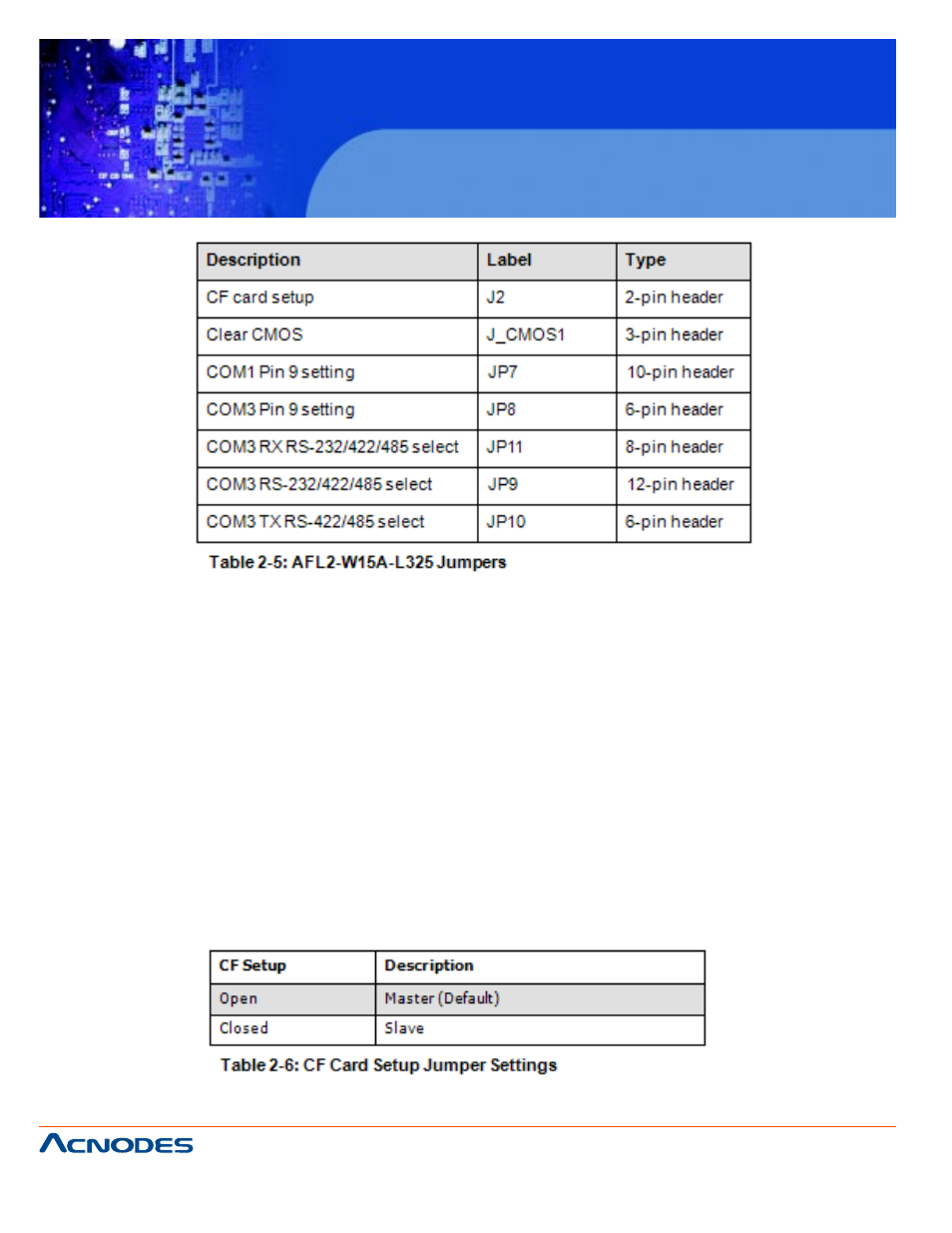

2.7.2 CF CARD SETUP

Jumper Label:

JCF1 (FPC7160) J2 (FPC7162)

Jumper Type: 2-pin header

Jumper Settings:

See Table 2-6

Jumper Location:

See Figure 2-9

The CF Card Setup jumper sets the CF Type I card or CF Type II cards as either the slave device or the
master device. CF Card Setup jumper settings are shown in Table 2-6.
