PC 6408
8” Fanless Panel PC

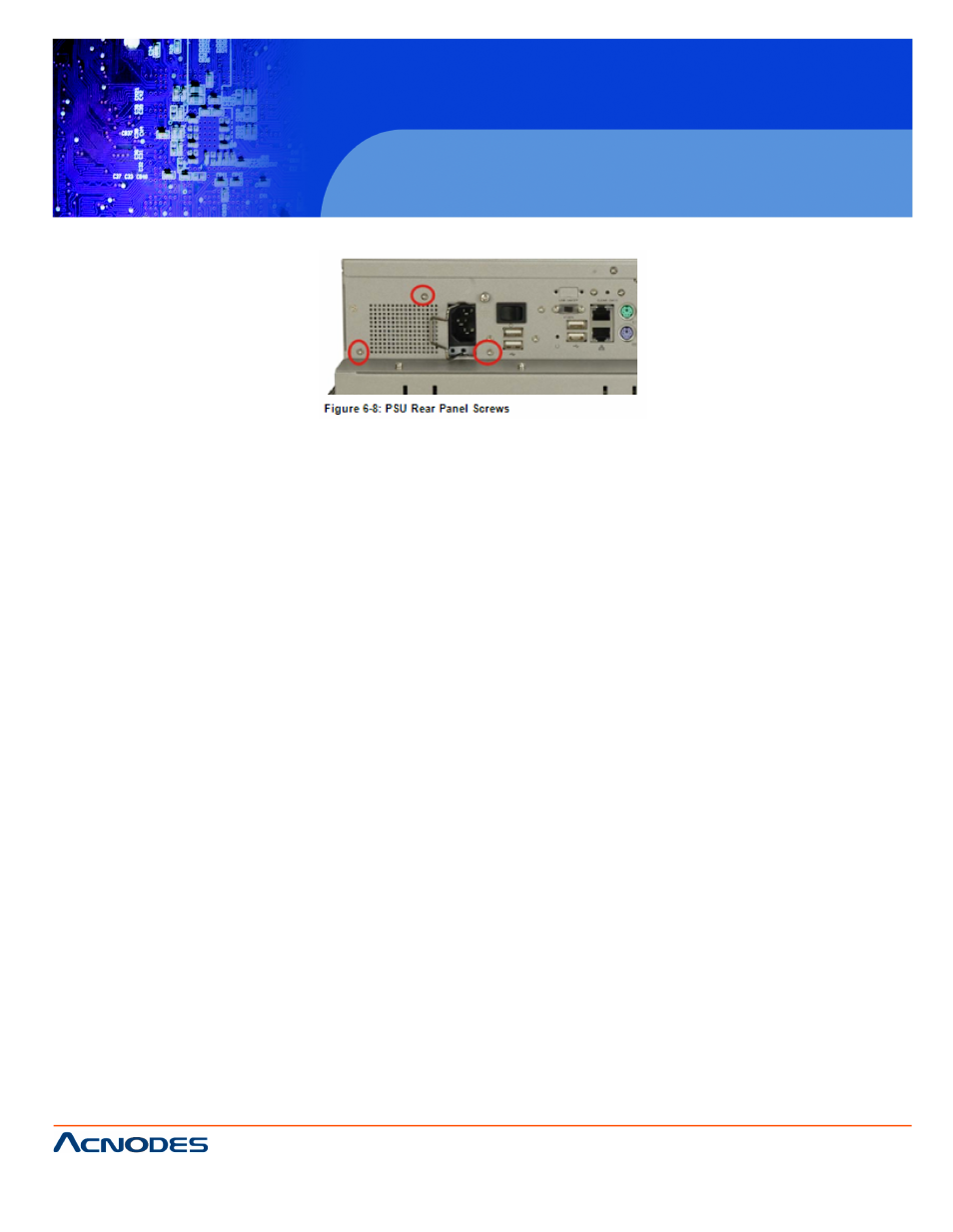

Step 5: Remove the retention screws that connect the PSU bracket to the chassis (Figure 6-8).
Step 6: Remove the retention screws that connect the PSU to the PSU bracket.
6.6.2 INSTALL THE NEW PSU
Installation is done in the reverse order to removal. To install a new PSU module, please follow the
steps below.
Step 1: Attach the PSU bracket to the PSU module with the previously removed retention screws.
Step 2: Insert the PSU module and bracket assembly into the chassis and attach the PSU bracket
to the chassis with the previously removed retention screws.
Step 3: Secure the PSU module to the chassis by reinserting the previously removed retention
screws through the bottom panel.
Step 4: Bundle the cables of the new PSU module and secure them with a plastic tie similar to the
old PSU module.
Step 5: Reconnect all previously disconnected power connectors to the motherboard and disk
drives.
Step 6: Reattach the elevated platform.
Step 7: Replace the back cover.
6.7 SYSTEM COOLING FAN REPLACEMENT
If the system cooling fans have been damaged, they must be replaced. To replace the system
cooling fans, please follow the steps below.
