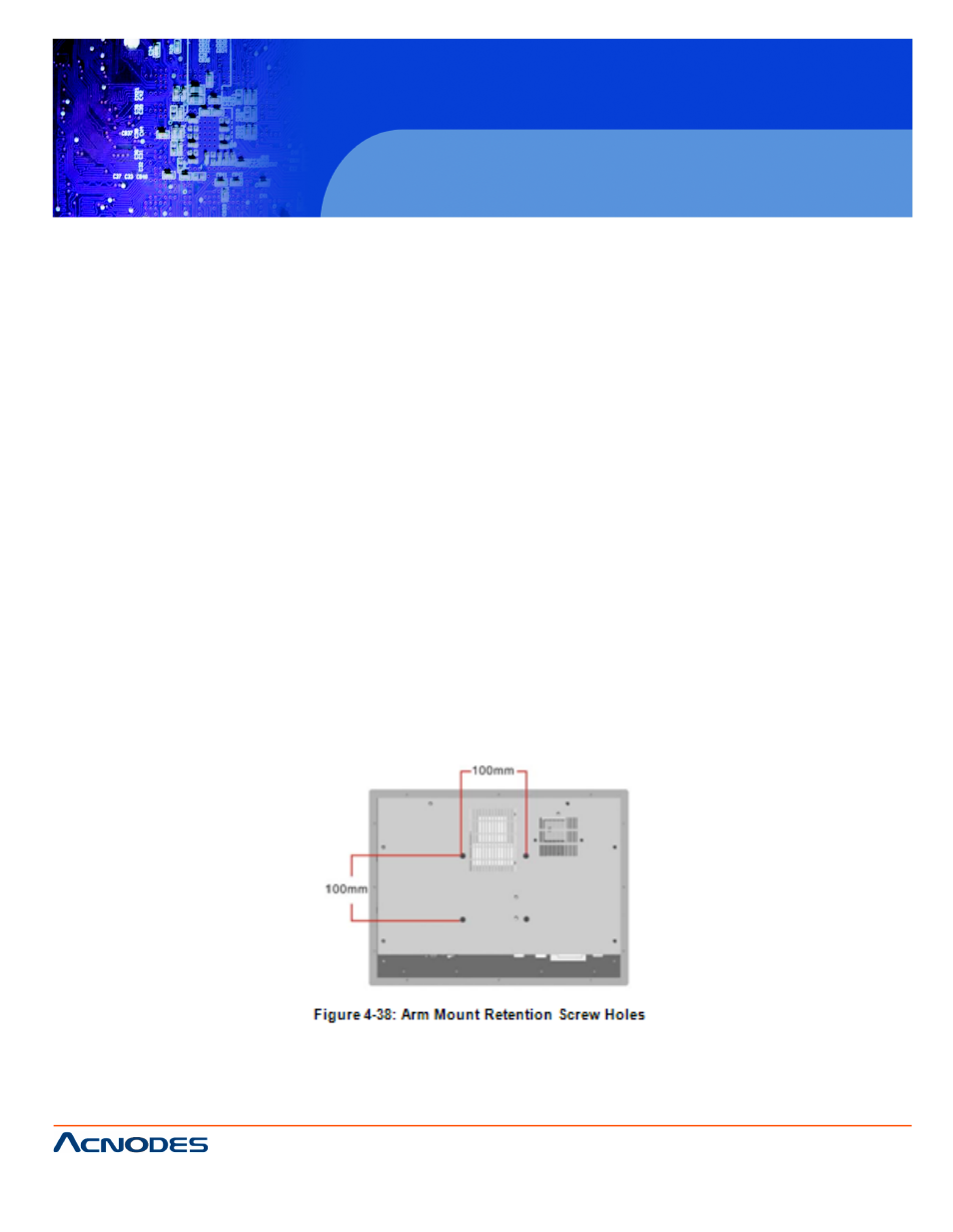

4.11.4 Arm Mounting
The PC5153/ PC5173 is VESA (Video Electronics Standards Association) compliant
and can be mounted on an arm with a 100 mm interface pad. To mount the PC5153/
PC5173 on an arm, please follow the steps below.
Step 1: The arm is a separately purchased item. Please correctly mount the arm onto
the surface it uses as a base. To do this, refer to the installation documentation that
came with the mounting arm.
NOTE:
When purchasing the arm please ensure that it is VESA compliant and that the arm has
a 100 mm interface pad. If the mounting arm is not VESAcompliant, it cannot
be used to support the PC5153/ PC5173 flat panel PC.
Step 2: Once the mounting arm has been firmly attached to its surface, lift the
PC5153/ PC5173 flat panel PC onto the interface pad of the mounting arm.
Step 3: Align the retention screw holes on the mounting arm interface with those in the
PC5153/ PC5173 flat panel PC. ThePC5153/ PC5173 flat panel PC arm mount reten-
tion screw.
Step 4: Secure the PC5153/ PC5173 to the interface pad by inserting four retention
screws through the mounting arm interface pad and into the
PC5153/ PC5173 flat panel PC.
