PC 6408
8” Fanless Panel PC

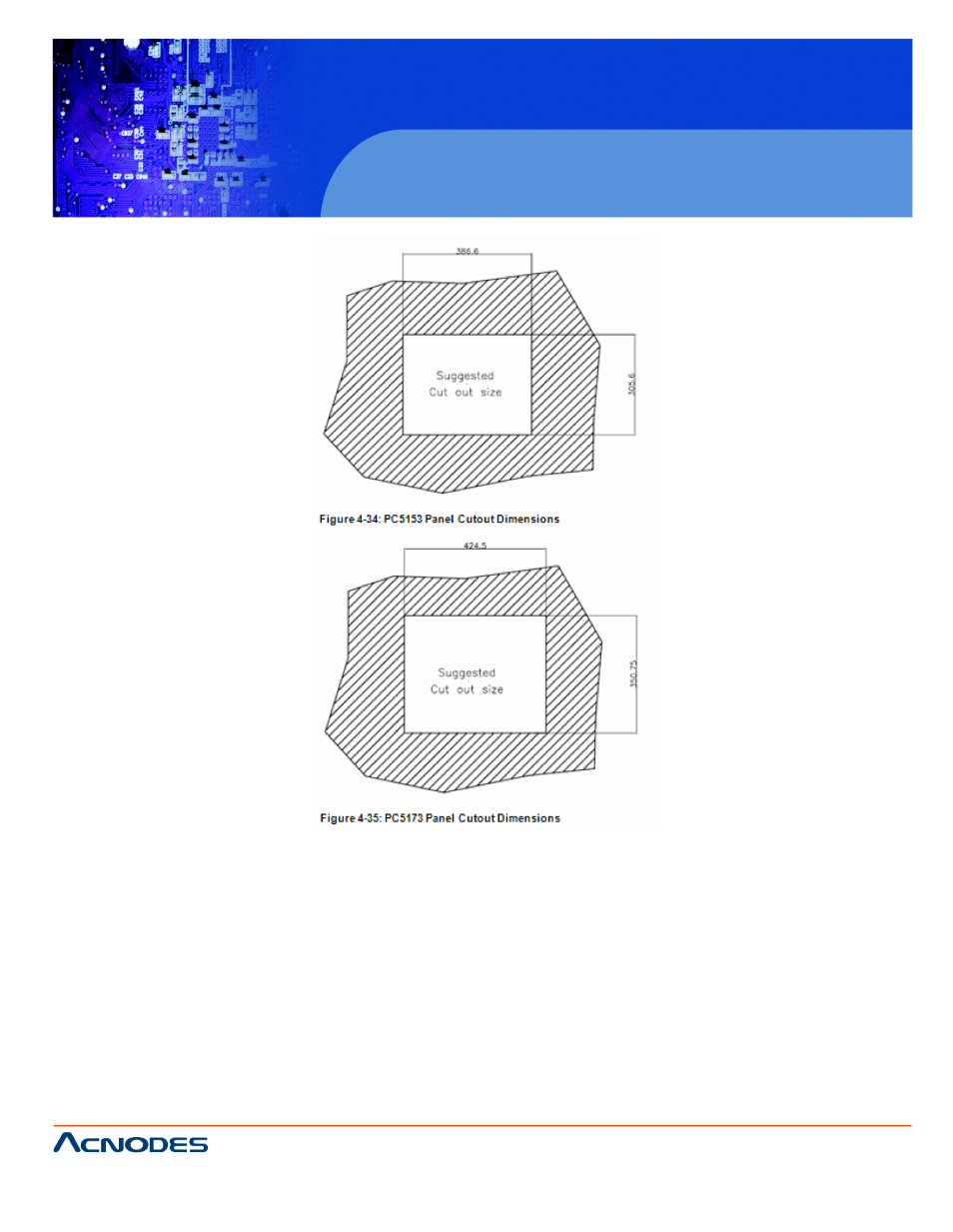

Step 3: Slide the PC5153/ PC5173 through the hole until the metal frame is flush
against the panel.
Step 4: Insert the panel mounting clamps into the pre-formed holes along the edges of
the PC5153/ PC5173, behind the metal frame (Figure 4-36). Refer to the mounting kit
packing list for the required number of mounting clamps.
