PC 6408

8” Fanless Panel PC

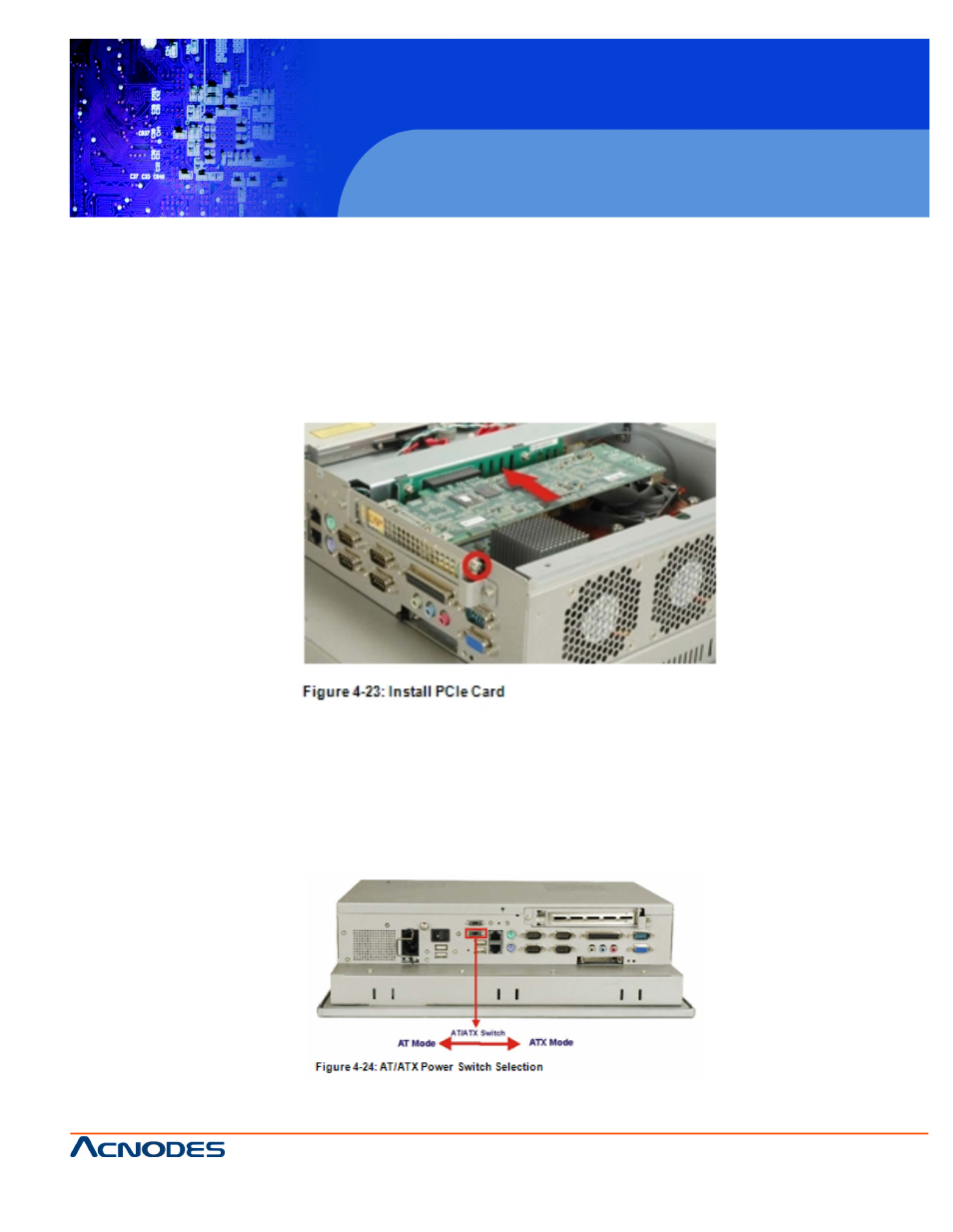

Step 4: Insert the expansion card. Align the PCIe expansion card edge connector with

the PCIe expansion slot on the PCIe riser card. Gently insert the PCIe card into the

PCIe expansion slot.

Step 5: Secure the expansion card. Once the PCIe card is correctly installed in the

system, reinsert the previously removed retention screw to secure the card to the I/O

interface panel.

4.9 AT/ATX Mode Selection

AT and ATX power modes can both be used on the PPC-51xxA-G41/WIDS-51xA-G41

flat panel PC. The selection is made through an AT/ATX switch on the I/O interface

panel. The switch is shown below.
