PC 6408
8” Fanless Panel PC

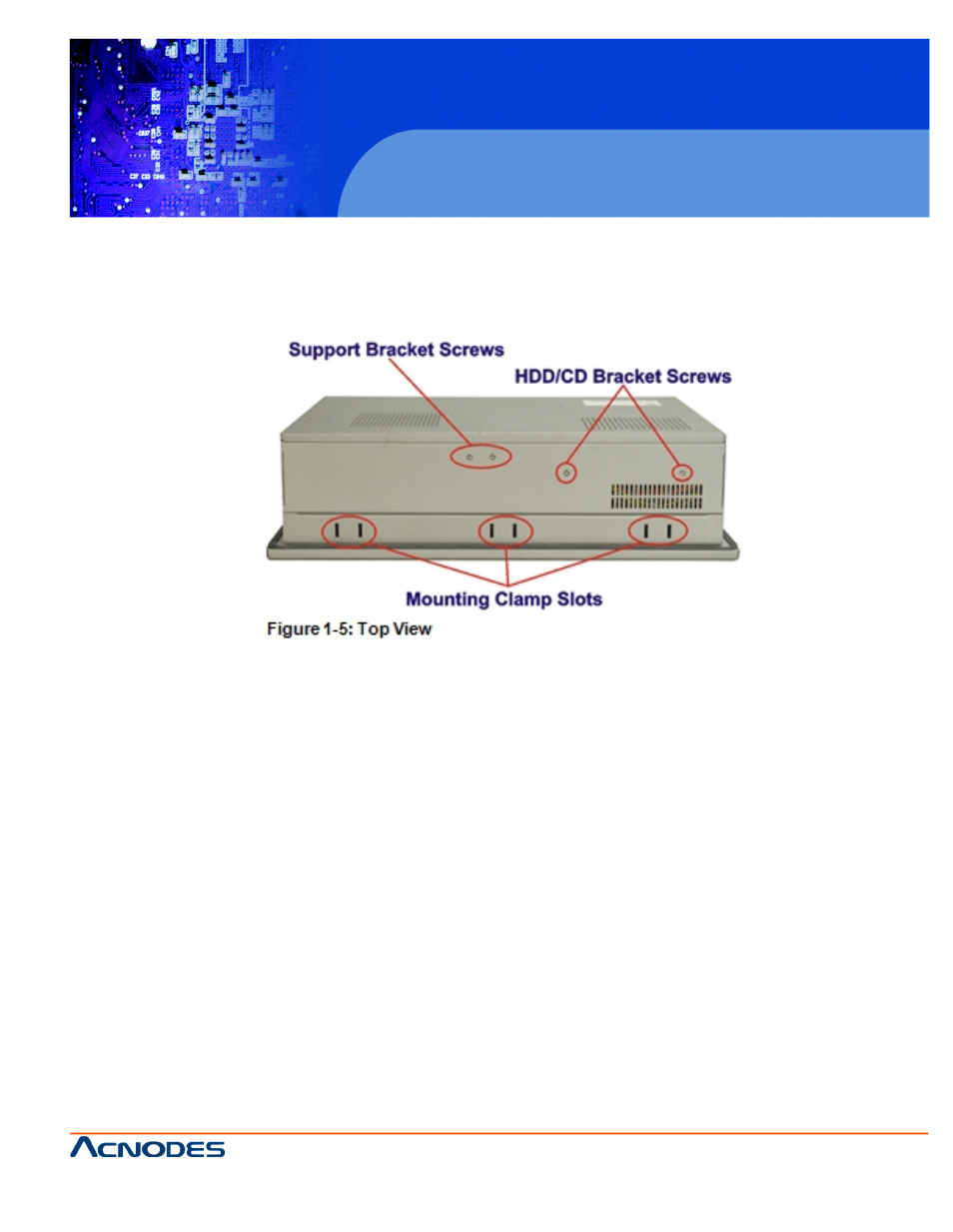

1.2.3 TOP PANEL
The top panel has three sets of mounting clamp slot, fan vents and retention screws for
securing the drive bay bracket. The retention screws are circled in Figure 1-5 below.
1.2.4 BOTTOM PANEL
The bottom panel shown in Figure 1-6 has the following interfaces:
ƒ
1 x Power input connector
ƒ 1 x Power switch
ƒ 4 x USB connectors
ƒ 1 x Reset button
ƒ 2 x RJ-45 GbE connectors
ƒ 1 x PS/2 mouse connector
ƒ 1 x PS/2 keyboard connector
ƒ 4 x RS-232 connectors (COM1, COM2, COM3 and COM4)
ƒ 1 x RS-232/422/485 connector (COM5)
ƒ 1 x PCI/PCIe x1 add-on card slot
ƒ 1 x Parallel port connector
