Pc 6408 – Acnodes PC 6408 User Manual
Page 40
14628 Central Blvd,
Chino, CA91710
tel:909.597.7588, fax:909.597.1939
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product descrions
are subject to change without nomation,
please visit Acnodes’ web site at
PC 6408
8” Fanless Panel
4.7 PCI Expansion Card Installation (Optional)
To install a PCI expansion card, please do the following.
Step 1: Remove the back panel. See Section 4.4.

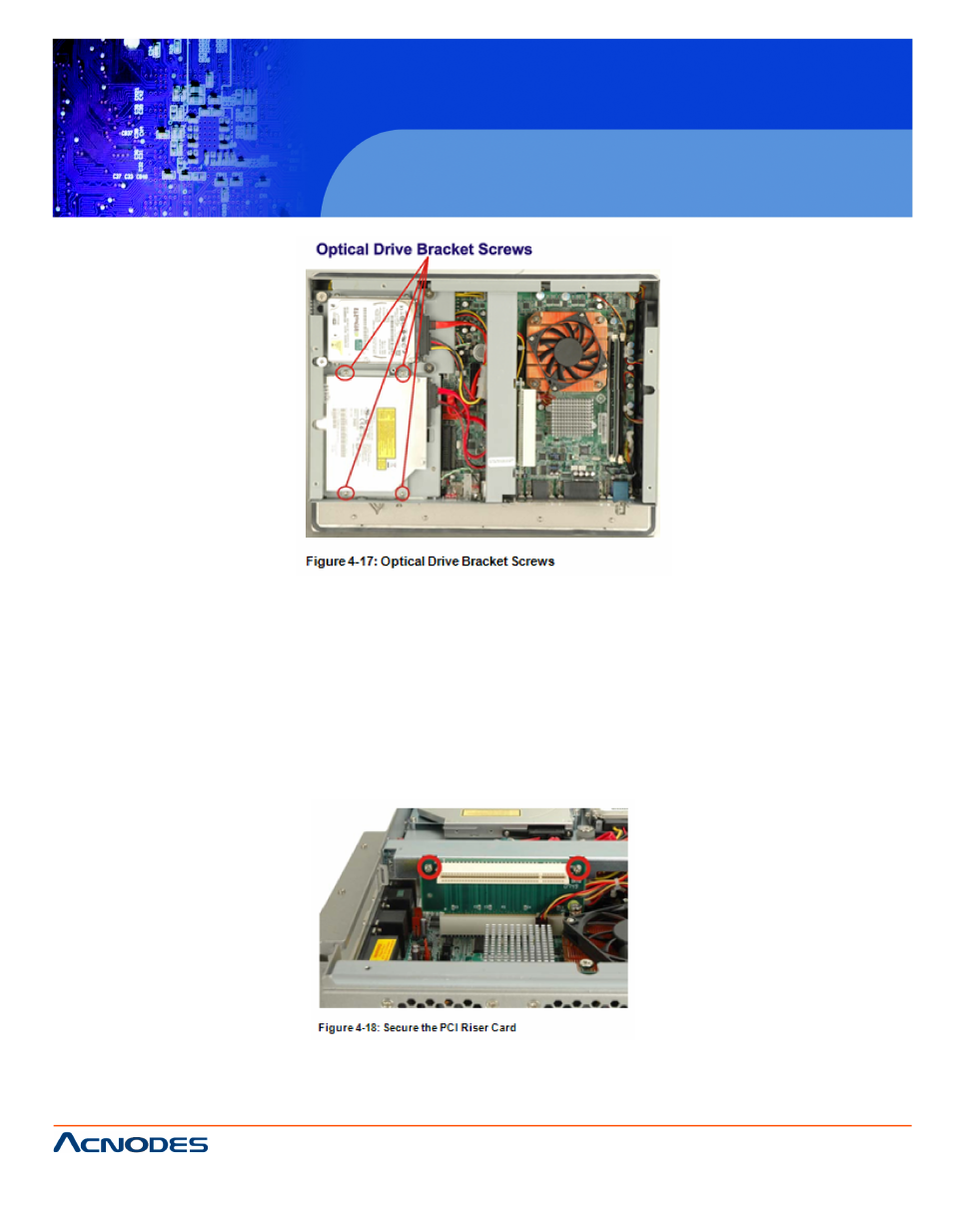

Step 2: Install the PCI riser card. Insert the PCI riser card into the
motherboard of the system. Secure the PCI riser card to the systention
screws.
