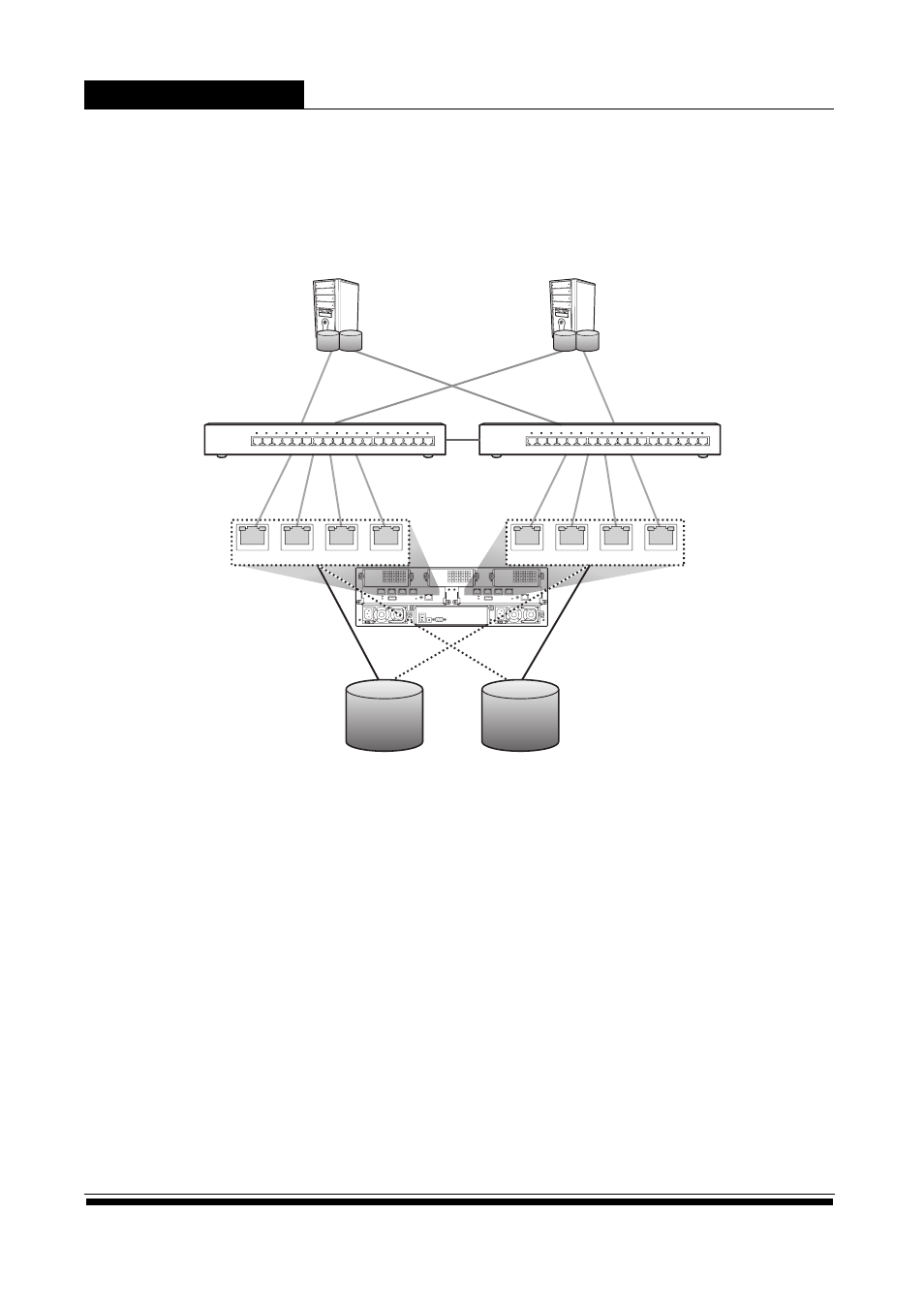

II. Build an IP-SAN with Active-Active Redundant environment
This page will show steps to build an active-active redundancy environment
without single point of failure in between controllers, paths and switches. Follow the
steps below to configure RAID system.
Task List
D2. Set iSCSI Aggregation Port
G. Set iSCSI Initiator on Windows
H. Set PathGuard on Windows 2003 Server
