Page 11

Accusys A16R/A16U-IS

2. Connect the other end to the CH1 port of SAS JBOD enclosure.
3. After connecting the SAS connector, turn the power of the JBOD first,

and then turn the power of the RAID system.

4. Power/Fan/Temp/HDD LED on JBOD lights up green and IO1&2 LED

flashes when the connections are set up properly.

Connecting the Power

Once all of the components have been installed into the RAID system,

and the management interfaces have been connected, the RAID

system can now be powered on.

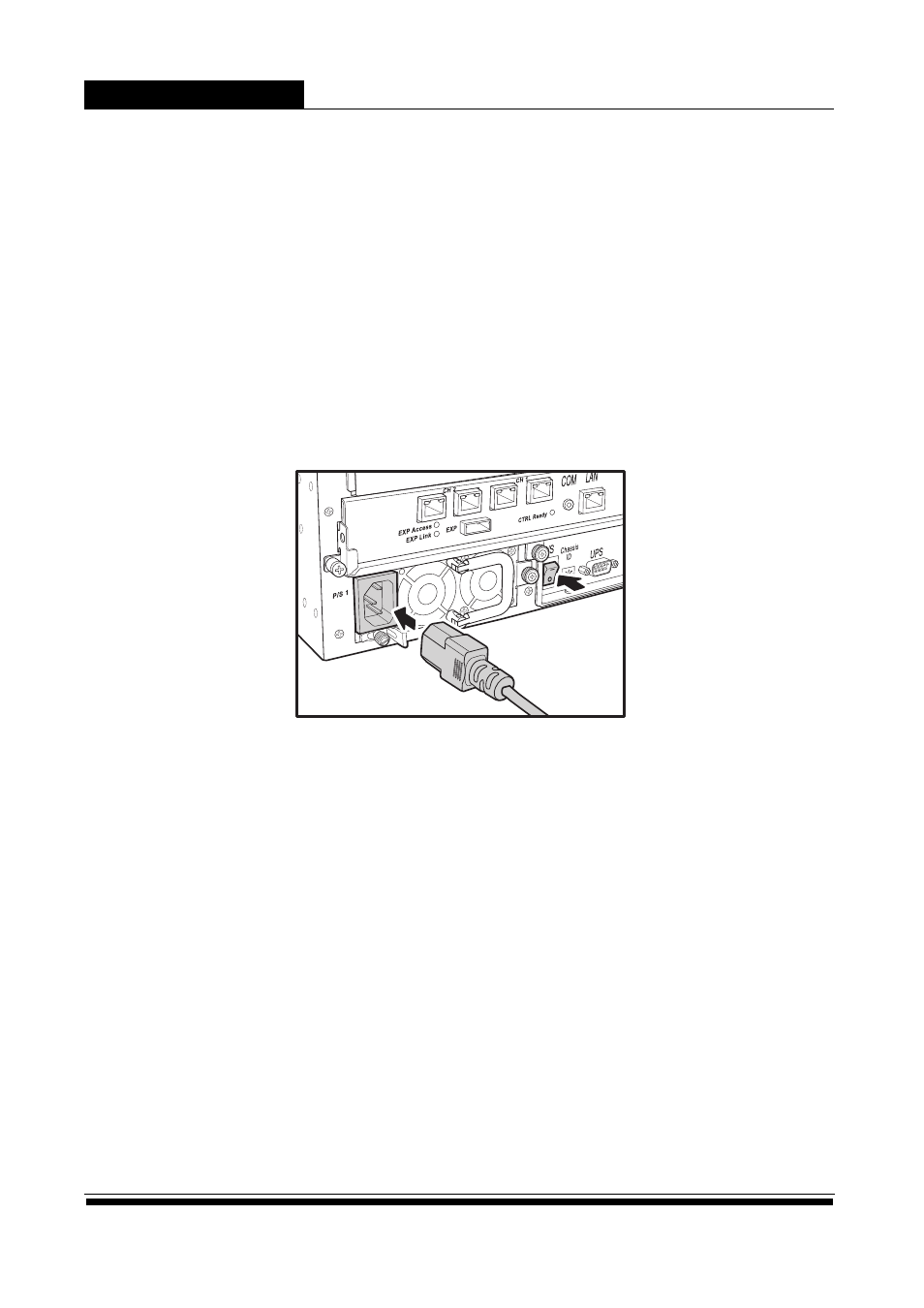

Power on:
1. Plug power cables into each AC power port

2. Turn on the power switch.

Power off:
Before you power off the system, make sure all the running process are

completed on the host computer.
Please follow the following procedure to shut down your system properly.

By LCD
1. Log in from the LCD panel by inputting the password. The default

on using the LCD panel.

2. Select System Setup > Shutdown > Yes to power off the system.
