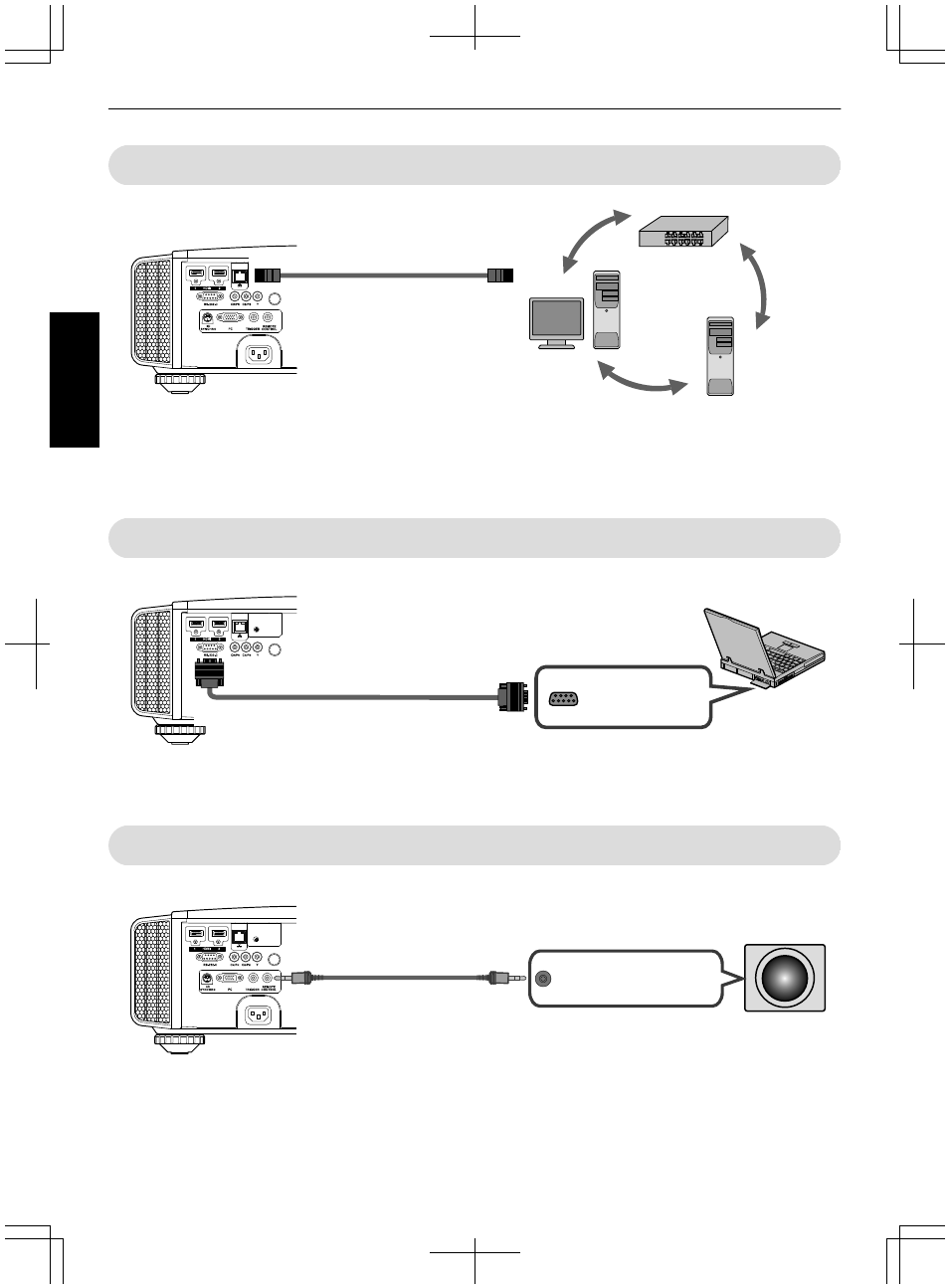

Connecting to the LAN Terminal
.
Desktop PC, etc.
Server
Hub
Network
Connection Cable
(Sold Separately)
This Unit
To [LAN] Terminal
0
The network is used to control this unit. It is not used for sending or receiving video signals.
0
Please contact your network administrator for information concerning the network connection.
0
Set “ECO Mode” to “Off” if RS-232C/LAN communication is performed or the HDMI link function is used in the
0
For more information on control, please refer to “External Control” (p. 72).
Connecting to the RS-232C Terminal
.
RS-232C Terminal
Laptop, etc.
RS-232C Connection Cable (Sold Separately)
To [RS-232C] Terminal
This Unit
0
Set “ECO Mode” to “Off” if RS-232C/LAN communication is performed or the HDMI link function is used in the
0
For more information on control, please refer to “External Control” (p. 72).
Connecting to the REMOTE Terminal
.
External Infrared Sensor
(Sold Separately)
Connection Cable
(Sold Separately)
To [REMOTE] Terminal
This Unit
0
For more information on the external infrared sensor and connecting cable, please contact your dealer.
