Connecting the Projector
0
Do not turn on the power until connection is complete.
0
The connection procedures differ according to the device used. For details, please refer to the instruction manual
of the device to be connected.
0
This projector is used for projecting images. To output the audio of connected devices, please connect a separate
audio output device, such as an amplifier or speaker.
0
The images may not be displayed depending on the devices and cables to be connected.
Use only HDMI cables (sold separately) that are HDMI-certified.
0 Some cables cannot be connected to this unit due to the size of their connector cover.
Connecting to the HDMI Input Terminal (Digital Input)

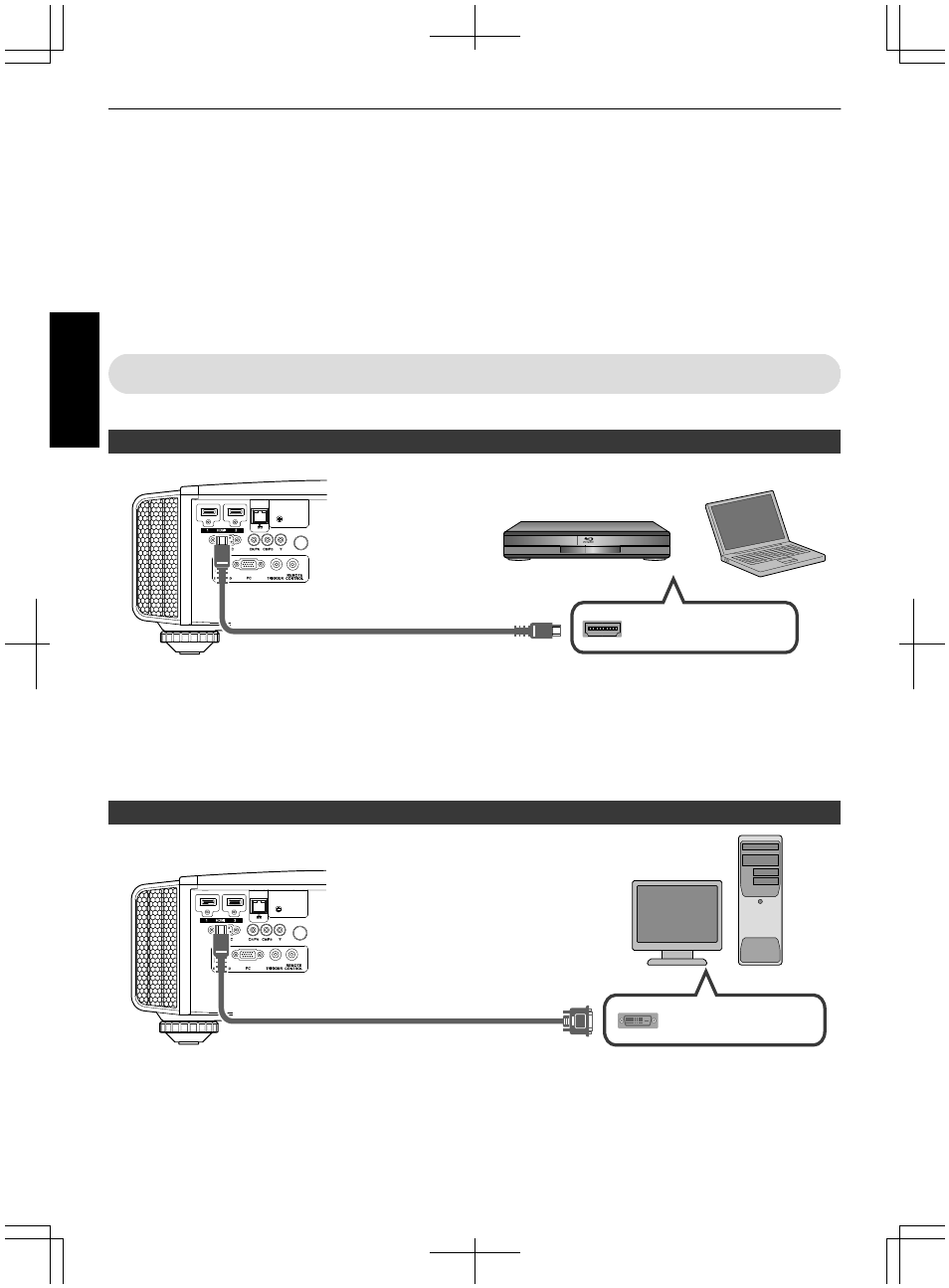

Connecting via HDMI cable
.
HDMI Output Terminal
BD/DVD Recorder, etc.
Laptop, etc.
HDMI Cable (Sold Separately)
This Unit
To [HDMI 1] or [HDMI 2] input
terminal
0 If noise occurs, move the laptop away from this unit.
0
For a transmission bandwidth in compliance with the HDMI standard, a 340 MHz cable is recommended. When
using a cable with a bandwidth of 75 MHz, you are recommended to set the resolution of the equipment transmitting
the video to 1080i or lower.
0
If the video is not displayed, try to reduce the length of the cable or lower the resolution of the video transmitting
equipment.
Connecting via HDMI-DVI conversion cable
.
HDMI-DVI Conversion Cable (Sold Separately)
To [HDMI 1] or [HDMI 2] input
terminal
This Unit
DVI Output Terminal
Desktop PC, etc.
0
If noise occurs, move the desktop PC away from this unit.
0 If the video is not displayed, try to reduce the length of the cable or lower the resolution of the video transmitting
equipment.
