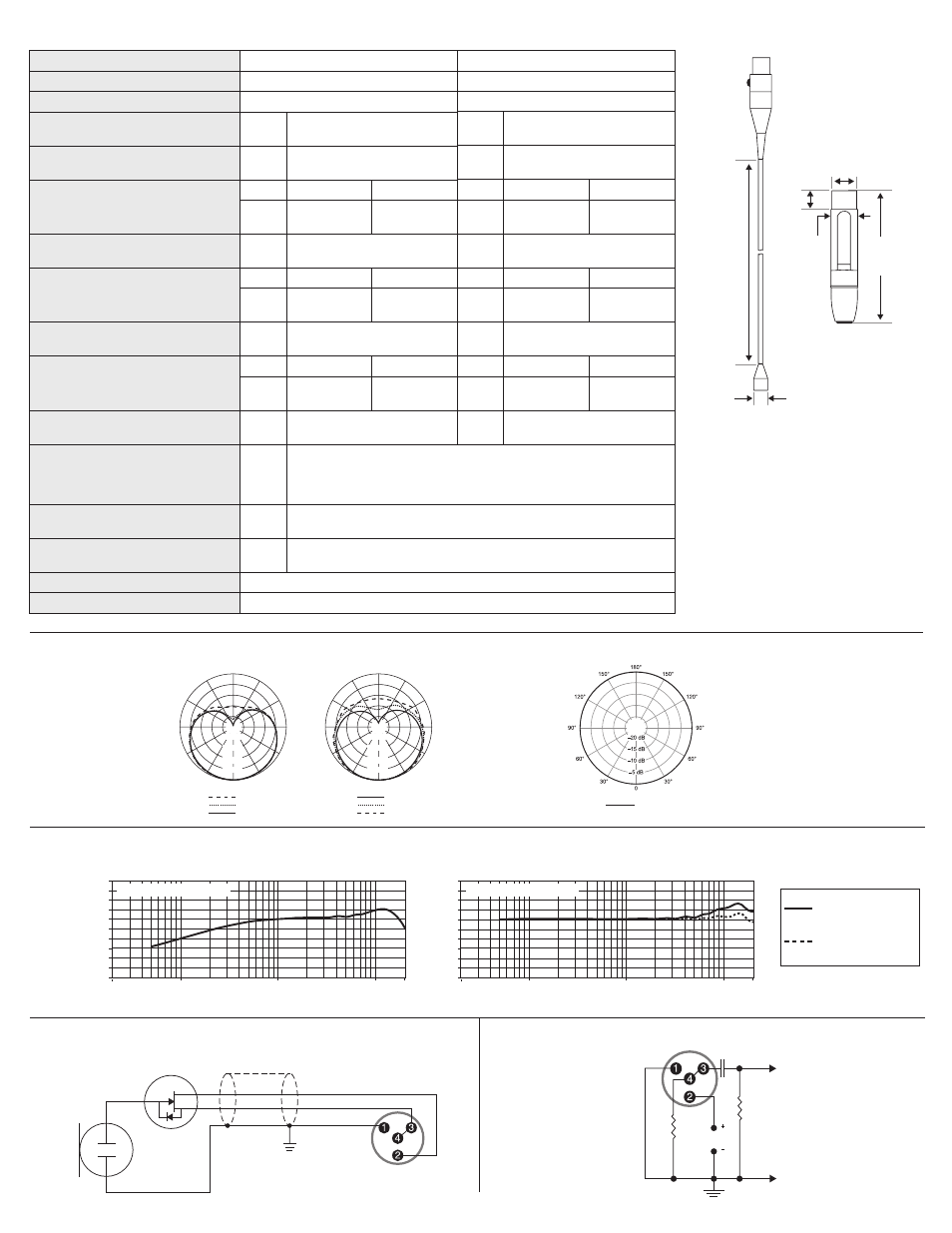

Specifications
Typical Polar Patterns
150°
120°
150°
120°
180°
30°
60°
90°
30°
60°
0
90°
–10 dB
–20 dB
–15 dB
–5 dB
150°
120°
150°
120°
180°
30°
60°
90°
30°
60°
0
90°
–10 dB
–20 dB
–15 dB
–5 dB
500 Hz
1000 Hz
250 Hz
6400 Hz
10000 Hz
2500 Hz
Cardioid
1000 Hz
Omnidirectional
Presence Boost
Equalization Cap
Normal Equalization
Cap
Impedance Converter
Cartridge
Shield
Red
Black +5 V DC
Audio
Connector
Polar Pattern Cardioid
Transducer Type Electret Condenser
Frequency Response 20 to 20,000 Hz
Output Impedance TQG: N/A
XLR: 165.5 Ω
Sensitivity
open circuit voltage, @ 1 kHz, typical
TQG: -51.0 dBV/Pa [1] (3.0 mV)
XLR: -39.0 dBV/Pa [1] (11.0 mV)
Maximum SPL
1 kHz at 1% THD [2]
2500 Ω load: 1000 Ω load:
TQG: 147.5 dB SPL 147.5 dB SPL
XLR: 134.5 dB SPL 129.5 dB SPL
Signal-to-Noise Ratio [3] TQG: 57.5 dB
XLR: 57.0 dB
Dynamic Range
@ 1 kHz
2500 Ω load: 1000 Ω load:
TQG: 111.0 dB SPL 111.0 dB SPL
XLR: 97.5 dB SPL 92.5 dB SPL
Self Noise
equivalent SPL, A-weighted, typical
TQG: 36.5 dB
XLR: 37.0 dB
Clipping Level
@ 1 kHz, 1% THD
2500 Ω load: 1000 Ω load:
TQG: 2.0 dBV 1.5 dBV
XLR: 1.0 dBV -4.5 dBV
Common Mode Rejection
20 to 20,000 Hz
TQG: N/A
XLR: ≥60 dB
Frequency Response
MX150/O MX150/C
1.0 uf
5 Vdc
20 k
100 k
Omnidirectional
Electret Condenser
20 to 20,000 Hz
TQG: N/A
XLR: 165.0 Ω
TQG: -46.5 dBV/Pa [1] (4.5 mV)
XLR: -34.5 dBV/Pa [1] (19.0 mV)
2500 Ω load: 1000 Ω load:
TQG: 143.0 dB SPL 143.0 dB SPL
XLR: 130.0 dB SPL 125.0 dB SPL
TQG: 60.0 dB
XLR: 59.5 dB
2500 Ω load: 1000 Ω load:
TQG: 109.0 dB SPL 109.0 dB SPL
XLR: 95.5 dB SPL 90.5 dB SPL
TQG: 34.0 dB
XLR: 34.5 dB
2500 Ω load: 1000 Ω load:
TQG: 2.0 dBV 1.5 dBV
XLR: 1.0 dBV -4.5 dBV
TQG: N/A
XLR: ≥60 dB
[1] 1 Pa=94 dB SPL
[2] THD of microphone preamplifier when applied
input signal level is equivalent to cartridge out-
put at specified SPL
[3] S/N ratio is the difference between 94 dB SPL
and equivalent SPL of self noise, A-weighted
[4] All specifications measured with a 48 Vdc
phantom power supply. The microphone oper-
ates at lower voltages, but with slightly de-
creased headroom and sensitivity.
Test Circuit
Cardioid Omnidirectional
Polarity TQG: Positive pressure on diaphragm produces positive voltage on pin 3 with re-
spect to pin 1
XLR: Positive pressure on diaphragm produces positive voltage on pin 2 with re-
spect to pin 3
Power Requirements TQG: 5 V DC (0.04–0.18 mA)
XLR: 11–52 V DC [4] phantom power (IEC-61938), <2.2 mA
Weight TQG: 21 g (0.7 oz.)
XLR: 121 g (4.3 oz.)
Operating Temperature Range -18°C (0°F) to 57°C (135°F)
Storage Temperature Range -29°C (-20°F) to 74°C (165°F)
20
15
10
5
0
-30
-25
-20
-15
-10
-5 dB
Hz
20 100 1k 10k 20k
0,6 m (2 ft.) from sound source
20
15
10
5
0
-30
-25
-20
-15
-10
-5 dB
Hz
20 100 1k 10k 20k
0,6 m (2 ft.) from sound source
D
S
G
1.52 m
(5 ft.)
5.8 mm
(0.23 in.)
RK100PK
20 mm
(0.79 in.)
99 mm
(3.89 in.)
14 mm
(0.55 in.)
19 mm
(0.75 in.)
Wiring Diagram
