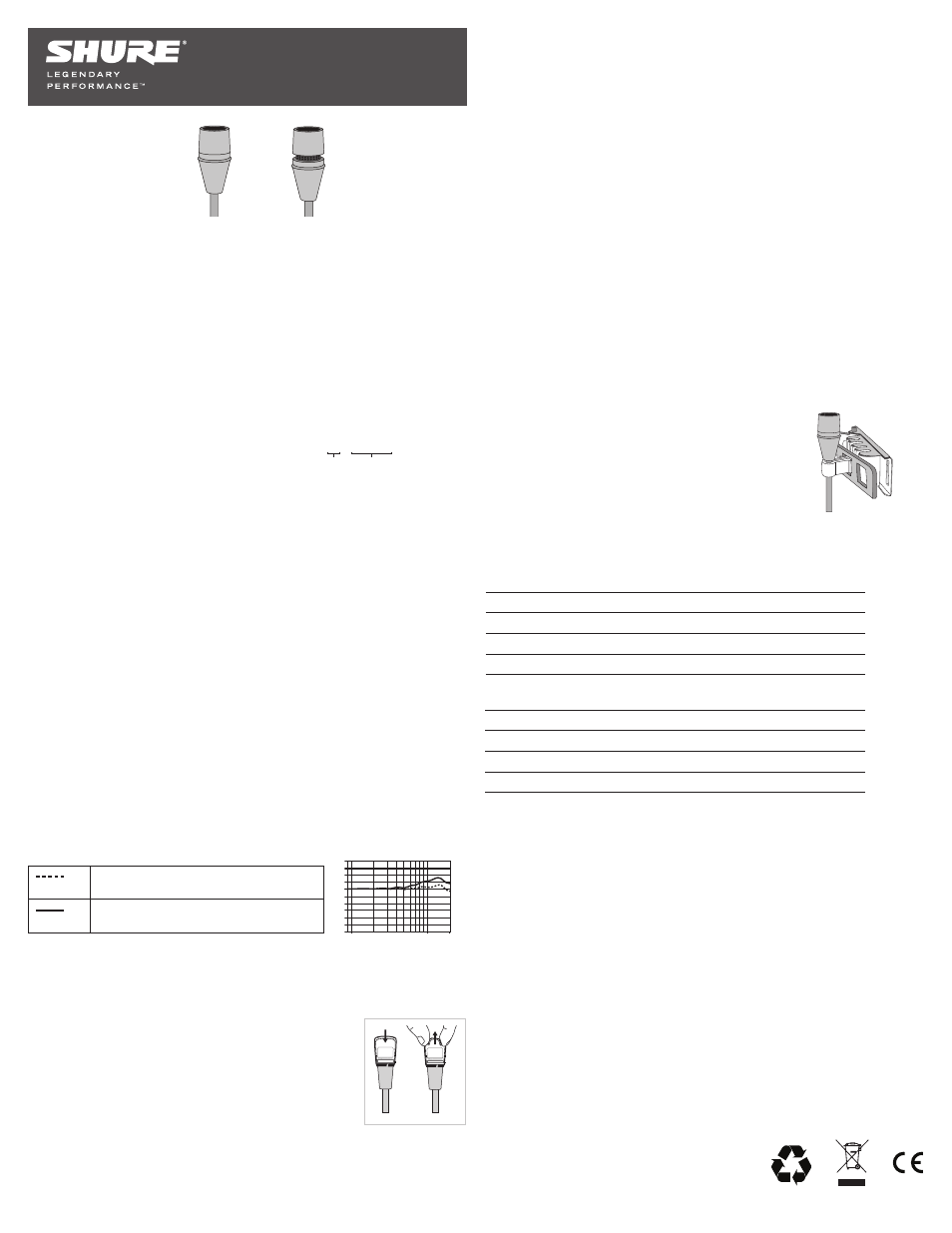

27A15525 (Rev. 1)

Printed in USA

General Description

The MX150 is a professional subminiature electret condenser lavalier microphone ideal for

use in speech and other applications requiring low-profile, discreet placement. Available

with cardioid or omnidirectional patterns, the MX150 provides uncompromised sound qual-

ity and high reliability with minimal visibility for use in television broadcasting, corporate

lectures, A/V teleconferencing, House of Worship, and sound reinforcement. CommShield

Technology offers superior RF immunity from cellular devices and digital bodypack trans-

mitters. Each microphone is supplied with a snap-fit foam windscreen to minimize wind

noise and a multi-position tie clip with integrated cable management to minimize cable

handling noise.

Features

• Available in cardioid or omnidirectional polar patterns and TQG (for use in Shure

bodypacks) or wired XLR variations

• CommShield

Technology guards against interference from Cellular RF devices and

digital bodypack transmitters

• Matte black, sleek, low-profile, design for inconspicuous placement
• Multi-position tie clip allows for a variety of placement options and features an integrated

cable management system for convenient cable dress with minimized handling noise

• Kevlar-reinforced soft-flex cable design further reduces handling noise while providing

superior flexibility for routing and placement

• User-changeable equalization caps for response shaping (omnidirectional only)
• Snap-fit, concise windscreen provides protection from plosives and wind noise with

minimal visibility

• Legendary Shure quality, ruggedness, and reliability

TQG Models

Using with Other Bodypack Transmitters

When connecting the microphone to anything other than a Shure wireless bodypack,

ensure the device provides a regulated +5 V DC (130 µA minimum) to the red conductor.

Refer to the wiring diagram in the specifications.

Model Variations

The MX150 is available in several varieties:

Ⓐ Polar Pattern

C Cardioid
O Omnidirectional

Ⓑ Connectors

TQG For Shure transmitters with 4-pin TA4F/TQG connectors
XLR Includes the RK100PK in-line preamplifier

Snap-fit Windscreen

Use the furnished snap-fit windscreen to provide plosive and wind

protection.
• Snap into the groove below the cartridge to secure to the

microphone.

• To remove, grab the plastic cage in the windscreen and lift over

capsule.

XLR Models

Phantom Power

The supplied RK100PK preamplifier requires phantom power and performs best with a 48

V DC supply (IEC-61938). However, it will operate with slightly decreased headroom with

supplies as low as 11 V DC.
Most modern mixers provide phantom power. You must use a balanced microphone cable:

XLR-to-XLR or XLR-to-TRS.

RFI Filtering

This microphone features CommShield

Technology for RF filtering. For best results in

hostile RF environments, always use the RK100PK preamp furnished with the XLR ver-

sions of this microphone.

Mounting the Microphone

This microphone is furnished with a multi-position tie clip for flex-

ible mounting options and reduced cable noise. Reference the

furnished tie clip guide for placement and routing suggestions.

20
15
10

5
0

-30

-25

-20

-15

-10

-5

100

10k

20k

0,6 m (2 ft.) from sound source

Equalization Caps

The omnidirectional MX150B/O variations ship with two types of equalization caps for high-

frequency shaping:

The cardioid MX150B/C variations are only compatible with the gold cap shipped with the

microphone. Do not use the silver and black omnidirectional screens.

Normal: Silver color screen; provides the

most natural sound in most applications
Presence Boost: Black screen; provides a

smooth, high-frequency boost

Certifications

Eligible to bear CE Marking. Conforms to European EMC Directive 2004/108/EC. Meets

Harmonized Standards EN55103-1:1996 and EN55103-2:1996, for residential (E1) and

light industrial (E2) environments.
The CE Declaration of Conformity can be obtained from: www.shure.com/europe/

compliance
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: 49-7262-92 49 0
Fax: 49-7262-92 49 11 4

Email: [email protected]

Note: Information in this guide is subject to change without notice. For additional informa-

tion about this product, please visit www.shure.com.

MX150B/

TQG

Ⓐ

Ⓑ

Accessories and Parts

Furnished Accessories

Multi-Position Tie Clip (3)

RPM150TC

Snap-fit Windscreen (3)

RPM150WS

Storage Pouch

WA150

In-Line Preamplifier (XLR version only)

RK100PK

Replacement Parts

Normal Cap, Gold, for MX150B/C (5)

RPM208

Normal Cap, Silver, for MX150B/O (5)

RPM213

Boost Cap, Black, for MX150B/O (5)

RPM215

4-Pin Mini Connector (TA4F/TQG)

WA330

MX150B/C

MX150B/O

MX150 Subminiature

Lavalier Microphone
