Chapter 20 Tools
NBG-318S User’s Guide
202

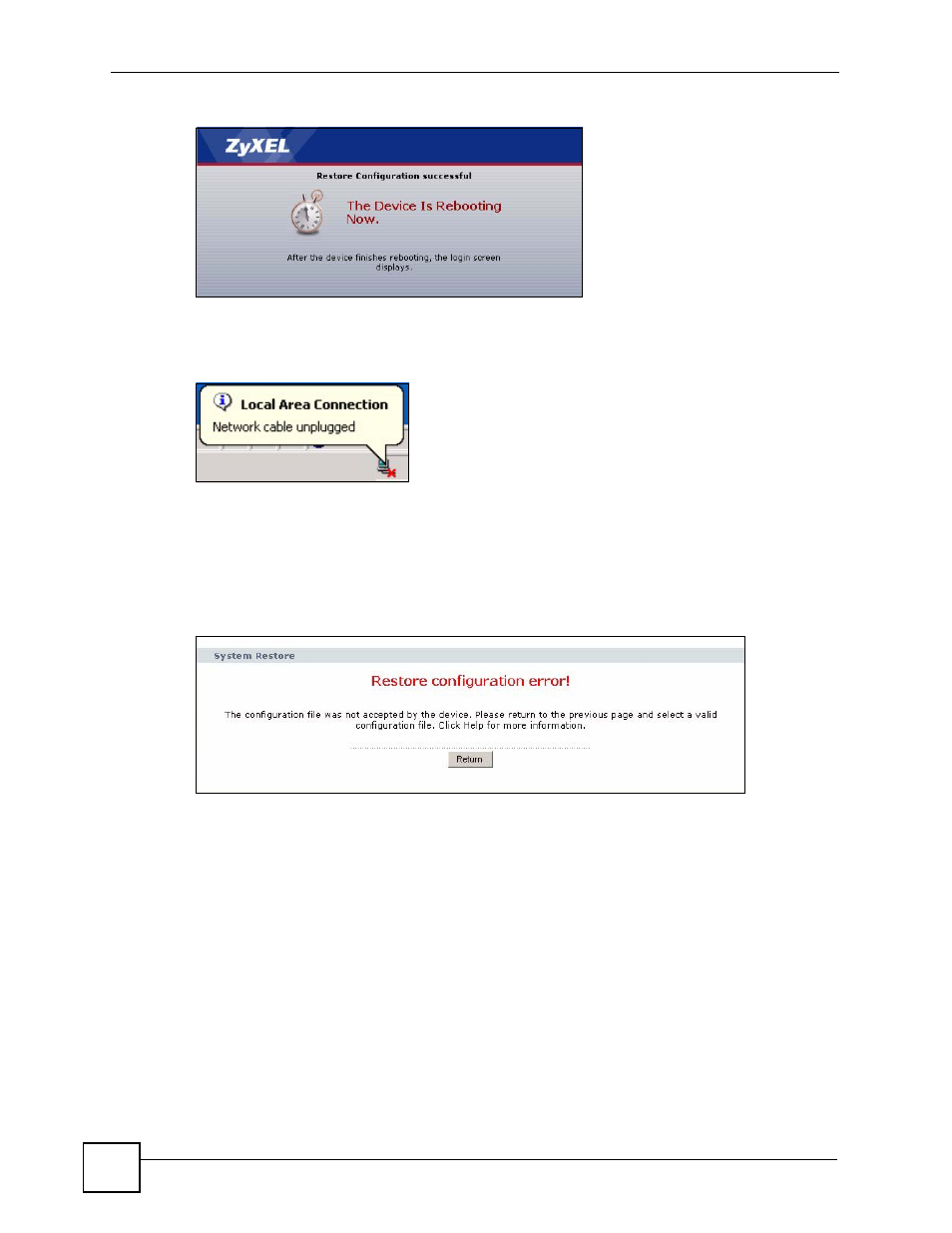

Figure 113 Configuration Restore Successful
The NBG-318S automatically restarts in this time causing a temporary network disconnect. In
some operating systems, you may see the following icon on your desktop.
Figure 114 Temporarily Disconnected
If you uploaded the default configuration file you may need to change the IP address of your
computer to be in the same subnet as that of the default NBG-318S IP address (192.168.1.1).
See your Quick Start Guide for details on how to set up your computer’s IP address.
If the upload was not successful, the following screen will appear. Click Return to go back to
the Configuration screen.
Figure 115 Configuration Restore Error
20.2.3 Back to Factory Defaults
Pressing the Reset button in this section clears all user-entered configuration information and
returns the NBG-318S to its factory defaults.
You can also press the RESET button on the rear panel to reset the factory defaults of your
NBG-318S. Refer to the chapter about introducing the web configurator for more information
on the RESET button.
20.3 Restart Screen
System restart allows you to reboot the NBG-318S without turning the power off.
