7 roof curb dimensions (8” roof curb also, Available), 8 roof curb application – York D2EB030 User Manual
Page 17
360101-XTG-B-0508
Johnson Controls Unitary Products
17

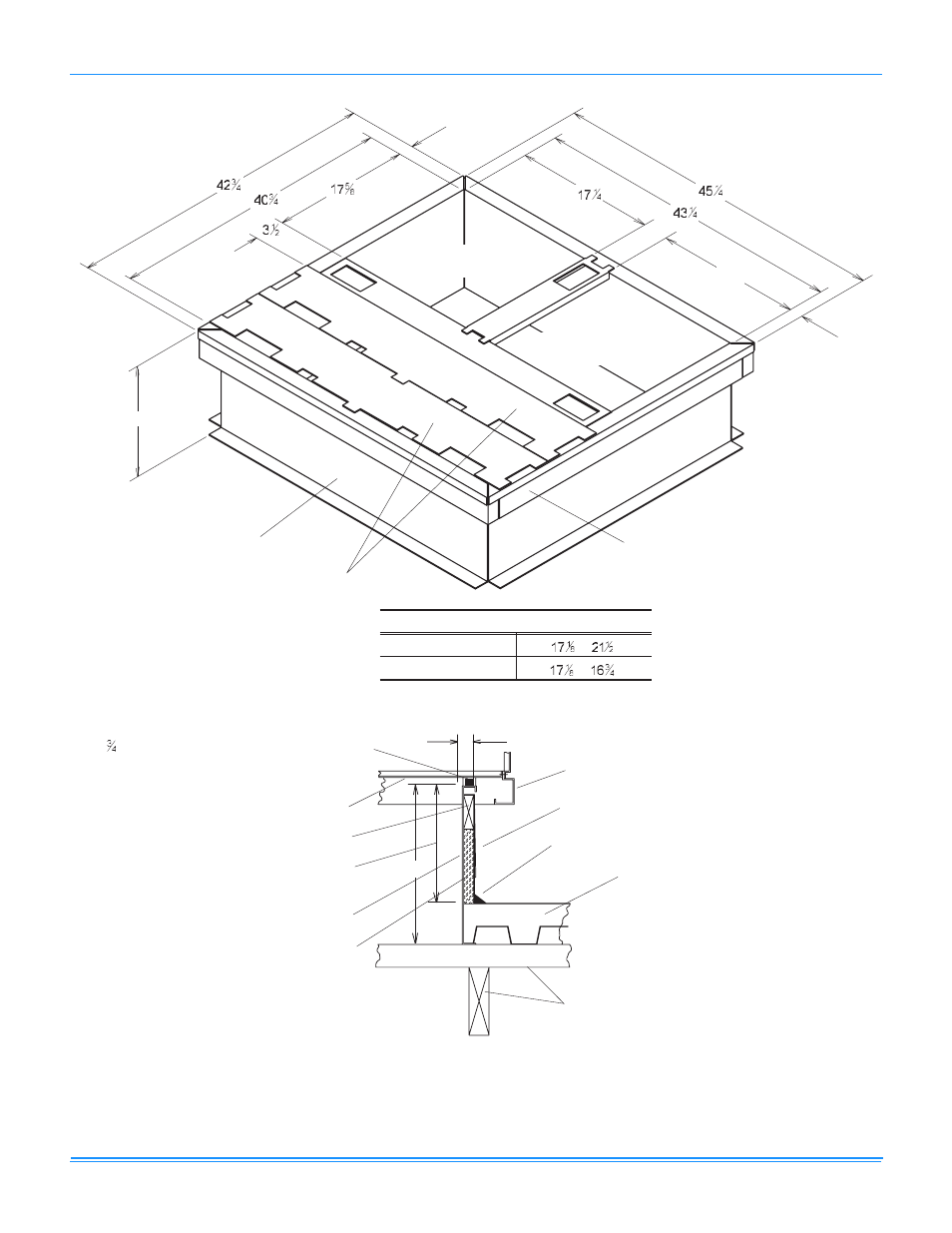

FIGURE 7 - ROOF CURB DIMENSIONS (8” Roof curb also available)
FIGURE 8 - ROOF CURB APPLICATION
FRONT
1
1
WOOD NAILER
4
INSULATED
PANELS
22
14
OPENING FOR
RETURN AIR DUCT
OPENING FOR
SUPPLY AIR DUCT
RECOMMENDED DUCT SIZE
SUPPLY AIR DUCT
" x
"
RETURN AIR DUCT
" x
"
UNIT BASE RAIL
UNIT BASE
WOOD NAILER
8" MIN. ABOVE FINISHED ROOF
CURB FRAME
COUNTERFLASHING
INSULATION
CANT STRIP
ROOF DECK AND ROOFING MATERIAL
INSULATION AND ROOFING MATERIAL
" x 1" WIDE GASKETING FOR CURB FRAME
AND ALL DUCT SUPPORT SURFACES
14"
1"
