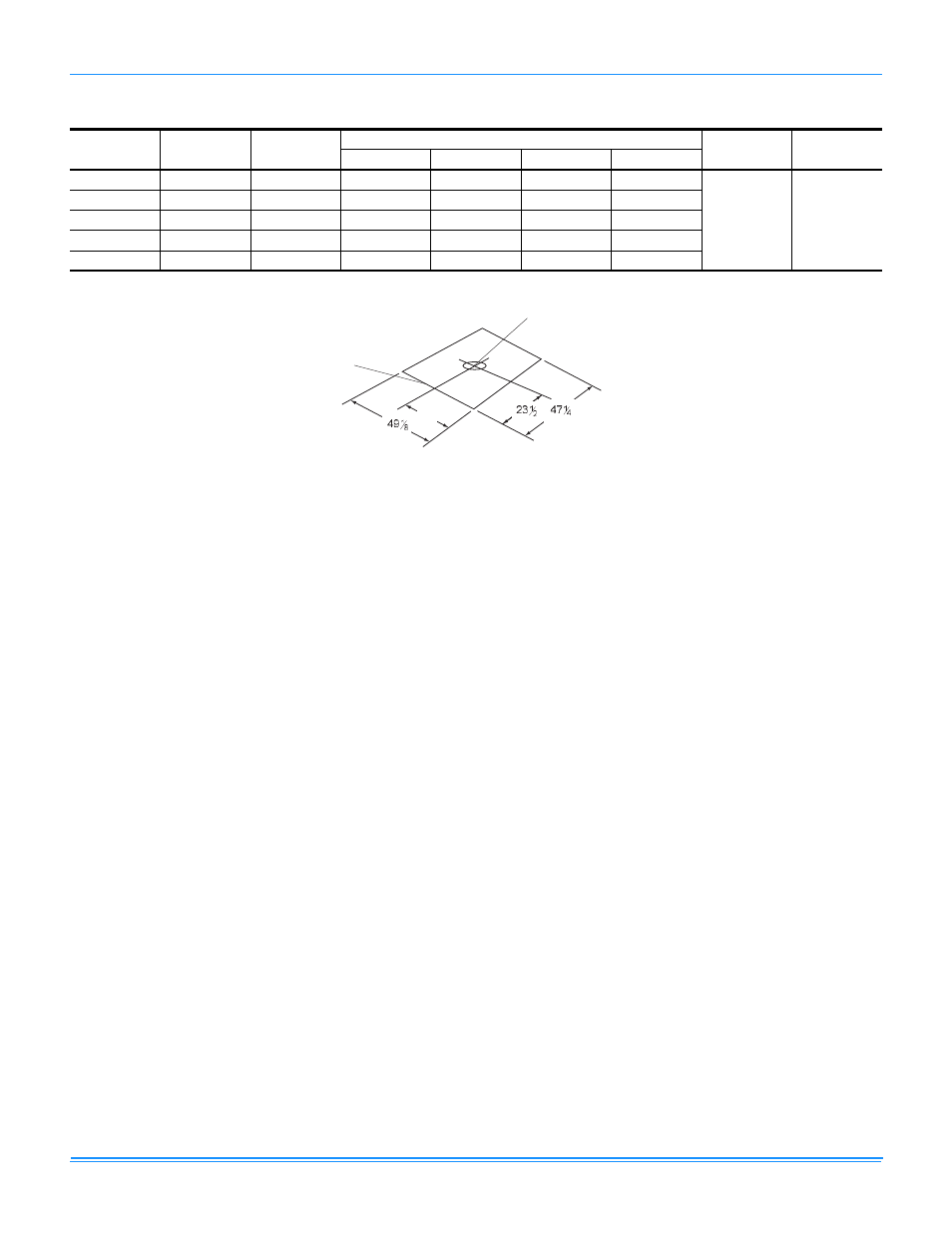

FIGURE 4 - CENTER OF GRAVITY
TABLE 12: UNIT WEIGHTS
Unit Size
Shipping
Weight
Operating
Weight
Corner Weights Economizer
(lbs.)
Roof Curb
(lbs.) A B C D
030 333 328 85 81 82 86
40
8" - 70
14" - 75
036 338 333 91 80 78 88
042 347 342 94 83 80 91
048 368 363 92 88 92 97
060 376 371 105 100 84 87
26
FRONT
OF
UNIT
A
B
C
D
CENTER OF GRAVITY
