High Capacity Stacker Stapler (HCSS)
The High Capacity Stacker Stapler is an optional finishing device which provides
stacking with offset and single or dual stapling output capabilities. Sets of up to
50 sheets of 64 - 80 g/m
2
may be stapled.
The High Capacity Stacker Stapler must be connected to the right end of the
digital press, replacing the Offset Catch Tray. The Stack Tray has a capacity of
2000 sheets of 64 - 80 g/m
2
paper. The HCSS also has an Offset mode which
provides separation between the stacked sets sent to the Stack Tray. The High
Capacity Stacker can also send output (not stapled) of 250 sheets of
64 - 80 g/m
2
paper to the Top Tray.
Banner sheets can be used with your Fiery RIP. The banner sheets must be
printed on LEF 8.5" x 11" paper. Refer to the EX2000 Printing Guide for more
information on how to turn this feature on.
Identifying High Capacity Stacker Stapler Parts

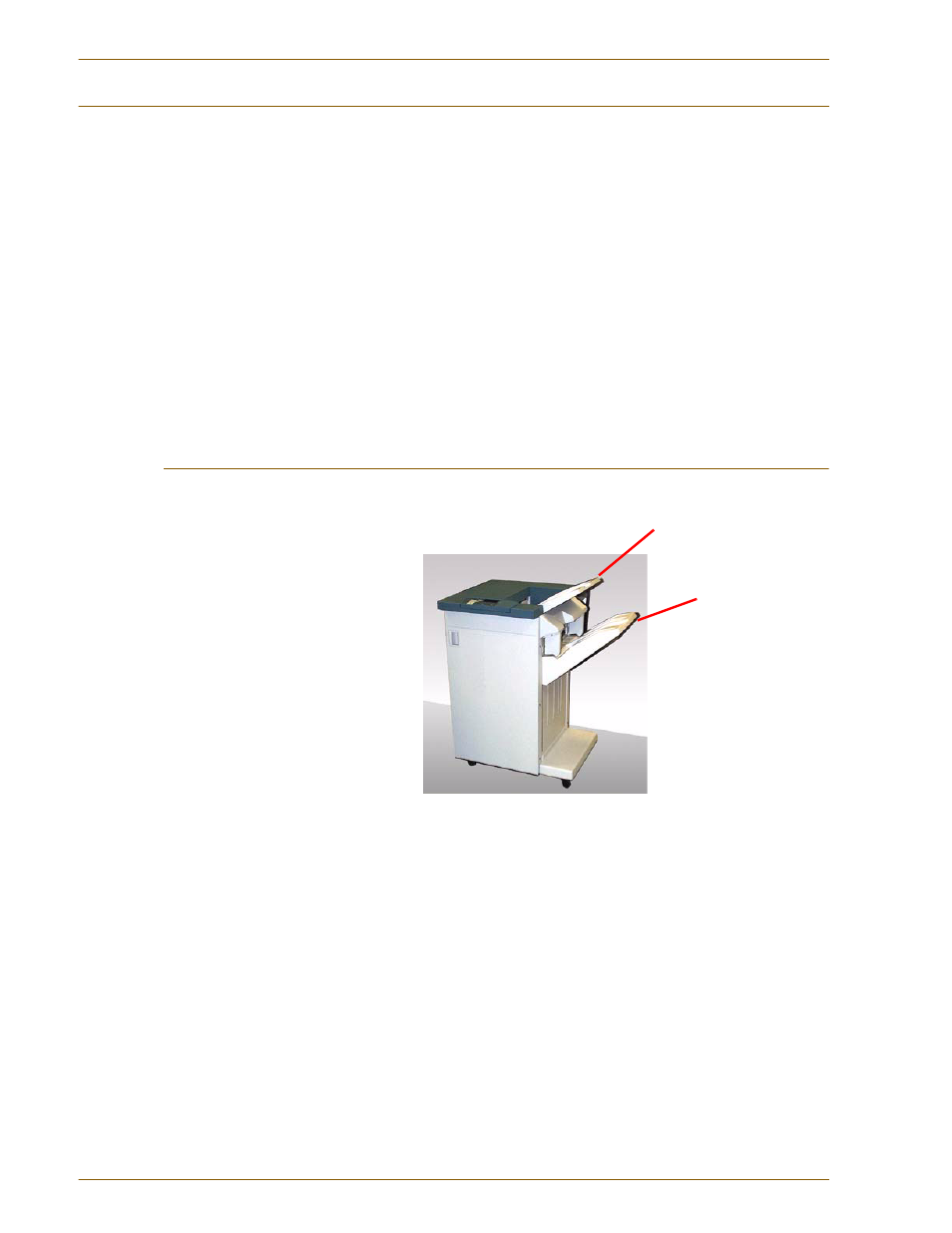

Figure 22. High Capacity Stacker Stapler
Top (or Purge) Tray
Offset Stacker
Stapler Tray
