Chapter 5 Initial Setup Example
GS-3012/GS-3012F User’s Guide
61

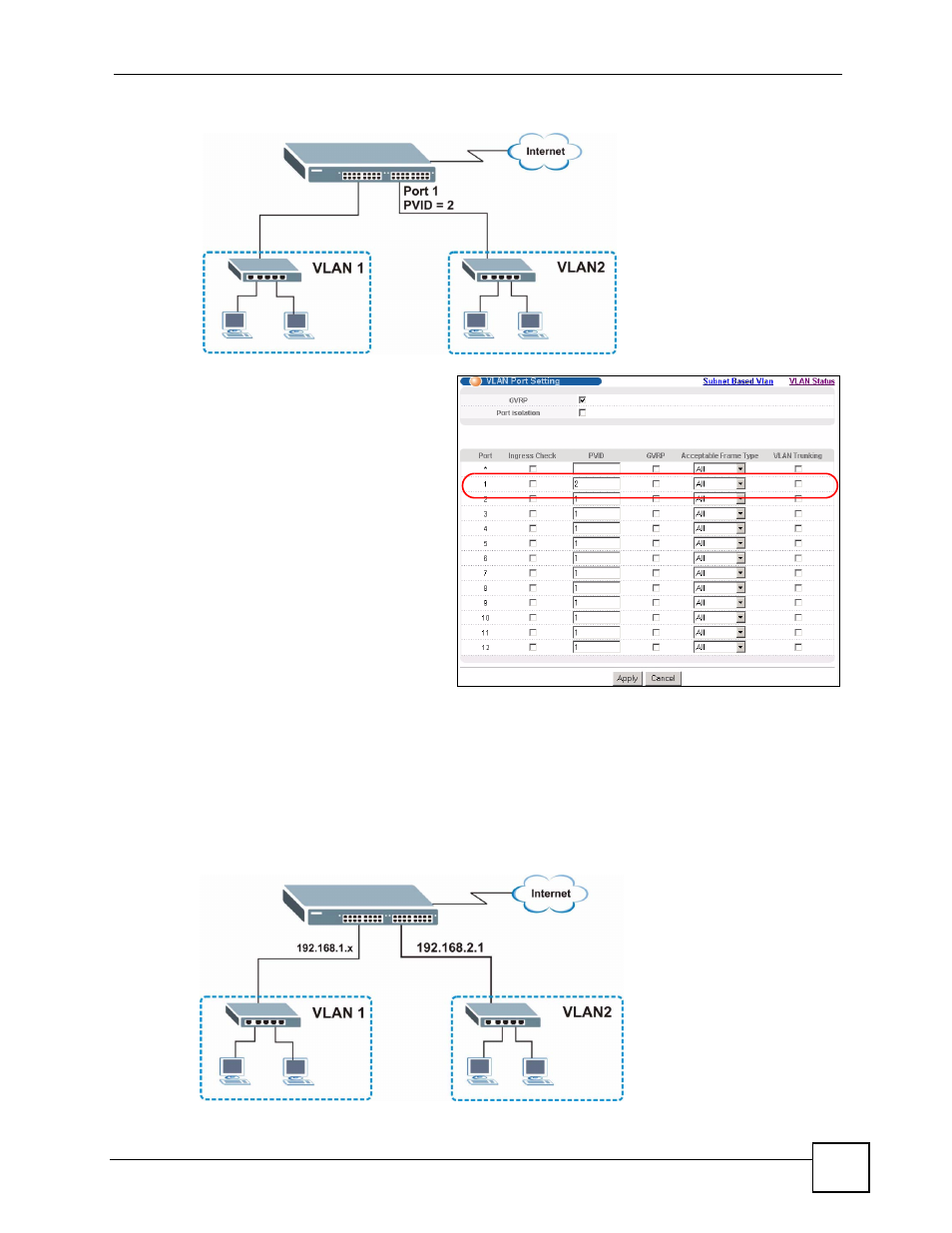

Figure 25 Initial Setup Network Example: Port VID
1 Click Advanced Applications
> VLAN in the navigation
panel. Then click the VLAN
Port Setting link.
2 Enter 2 in the PVID field for
port 1 and click Apply to save
your changes back to the run-
time memory. Settings in the
run-time memory are lost
when the Switch’s power is
turned off.
5.2 Configuring Switch Management IP Address
The default management IP address of the Switch is 192.168.1.1. You can configure another
IP address in a different subnet for management purposes. The following figure shows an
example.
Figure 26 Initial Setup Example: Management IP Address
