Page 124
Chapter 15 Link Aggregation
GS-3012/GS-3012F User’s Guide
124
• You must connect all ports point-to-point to the same Ethernet switch and configure the
ports for LACP trunking.
• LACP only works on full-duplex links.
• All ports in the same trunk group must have the same media type, speed, duplex mode and
flow control settings.
Configure trunk groups or LACP before you connect the Ethernet switch to avoid causing
network topology loops.
15.2.1 Link Aggregation ID
LACP aggregation ID consists of the following information
1
:
15.3 Link Aggregation Status
Click Advanced Application > Link Aggregation in the navigation panel. The Link
Aggregation Status screen displays by default. See
for more
information.

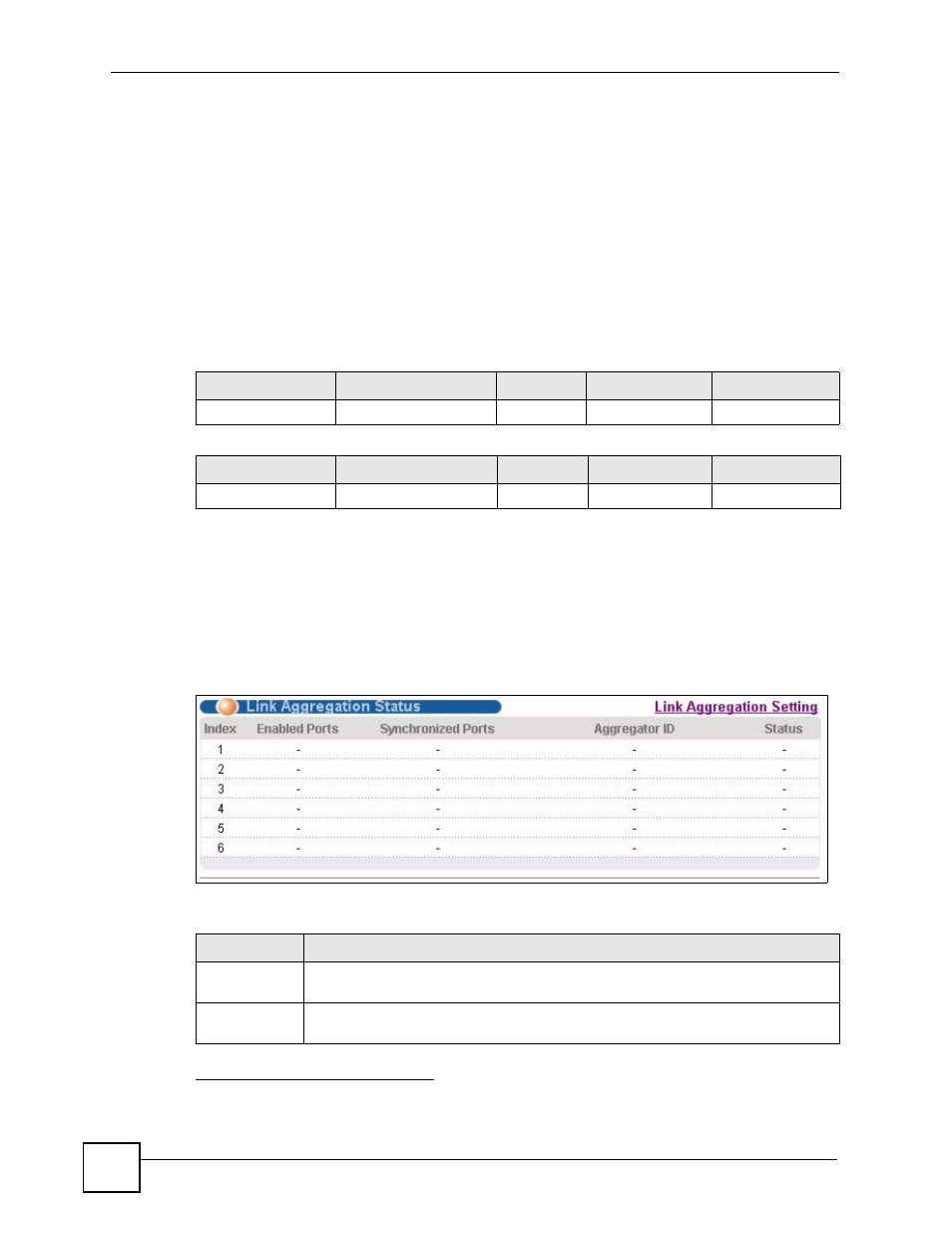

Figure 62 Advanced Application > Link Aggregation Status
The following table describes the labels in this screen.
Table 34 Link Aggregation ID: Local Switch
SYSTEM PRIORITY MAC ADDRESS
KEY
PORT PRIORITY
PORT NUMBER
0000
00-00-00-00-00-00
0000
00
0000
Table 35 Link Aggregation ID: Peer Switch
SYSTEM PRIORITY MAC ADDRESS
KEY
PORT PRIORITY PORT NUMBER
0000
00-00-00-00-00-00
0000
00
0000
1.
Port Priority and Port Number are 0 as it is the aggregator ID for the trunk group, not the individual port.
Table 36 Advanced Application > Link Aggregation Status
LABEL
DESCRIPTION
Index
This field displays the trunk ID to identify a trunk group, that is, one logical link
containing multiple ports.
Enabled Port
These are the ports you have configured in the Link Aggregation screen to be in the
trunk group.
