Chapter 7 VLAN
ES-315/ES-315-F User’s Guide
59

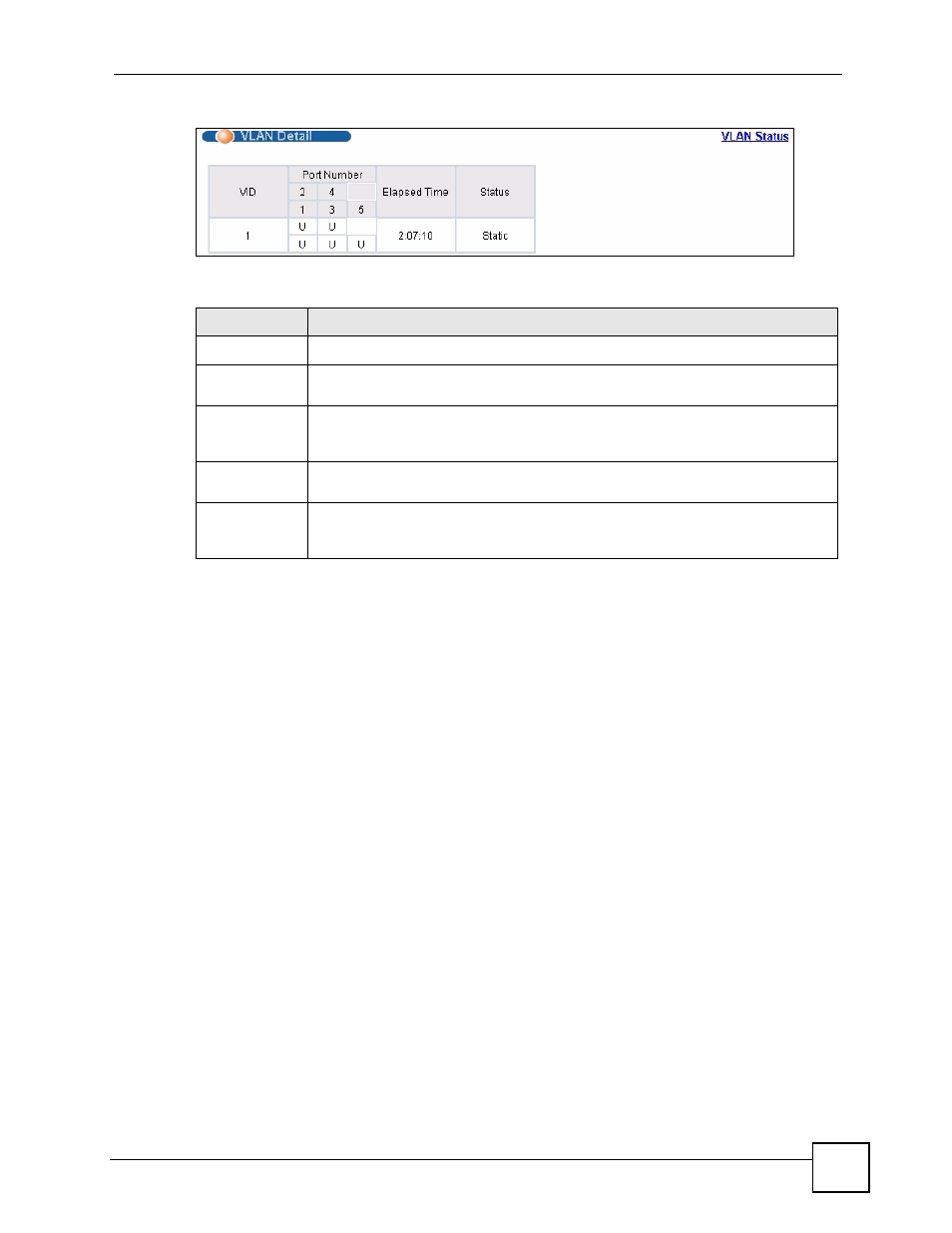

Figure 23 Advanced Application > VLAN > VLAN Detail
The following table describes the labels in this screen.
7.2.3 Configure a Static VLAN
Use this screen to configure and view 802.1Q VLAN parameters for the Switch. See Section
7.1 on page 57 for more information on static VLAN. To configure a static VLAN, click Static
VLAN in the VLAN Status screen to display the screen as shown next.
Table 13 Advanced Application > VLAN > VLAN Detail
LABEL DESCRIPTION
VLAN Status Click this to go to the VLAN Status screen.
VID This is the VLAN identification number that was configured in the Static VLAN
screen.
Port Number This column displays the ports that are participating in a VLAN. A tagged port is
marked as T, an untagged port is marked as U and ports not participating in a VLAN
are marked as “–“.
Elapsed Time This field shows how long it has been since a normal VLAN was registered or a
static VLAN was set up.
Status This field shows how this VLAN was added to the Switch; static - added as a
permanent entry or other - added in another way such as via Multicast VLAN
Registration (MVR).
