ES-315/ES-315-F User’s Guide
43
C
H A P T E R
5
System Status and Port
Statistics
This chapter describes the system status (web configurator home page) and port details
screens.
5.1 Overview
The home screen of the web configurator displays a port summary with links to each port
showing statistical details.
5.2 Port Status Summary
To view the port statistics, click Status in all web configurator screens to display the Status
screen as shown next.

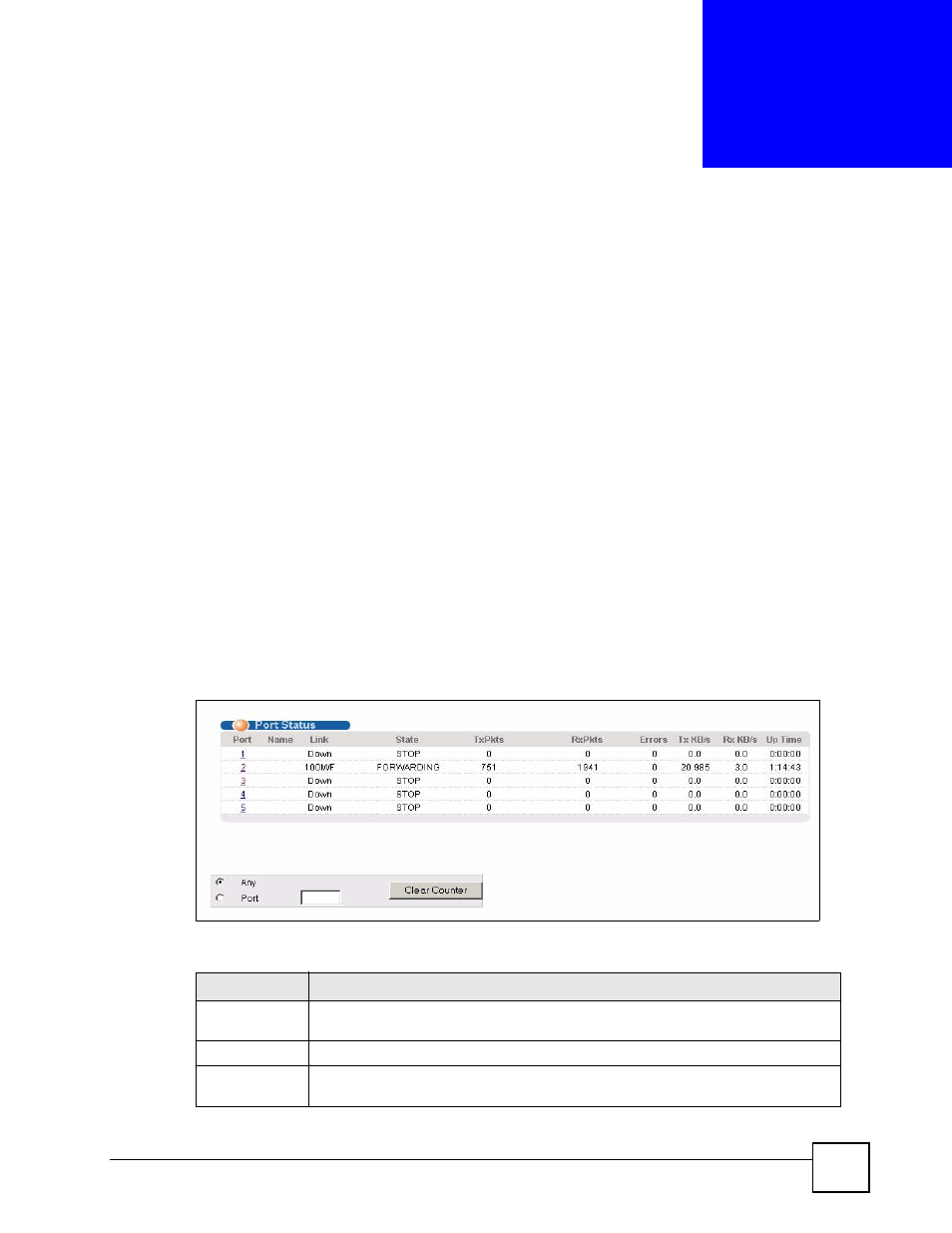

Figure 15 Status
The following table describes the labels in this screen.
Table 5 Status
LABEL
DESCRIPTION
Port
This identifies the Ethernet port. Click a port number to display the Port Details
screen (refer to
).
Name
This is the name you assigned to this port in the Basic Setting, Port Setup screen.
Link
This field displays the speed (either 10M for 10Mbps or 100M for 100Mbps) and the
duplex (F for full duplex or H for half).
