ZyWALL 5/35/70 Series User’s Guide
Appendix B Hardware Installation
670

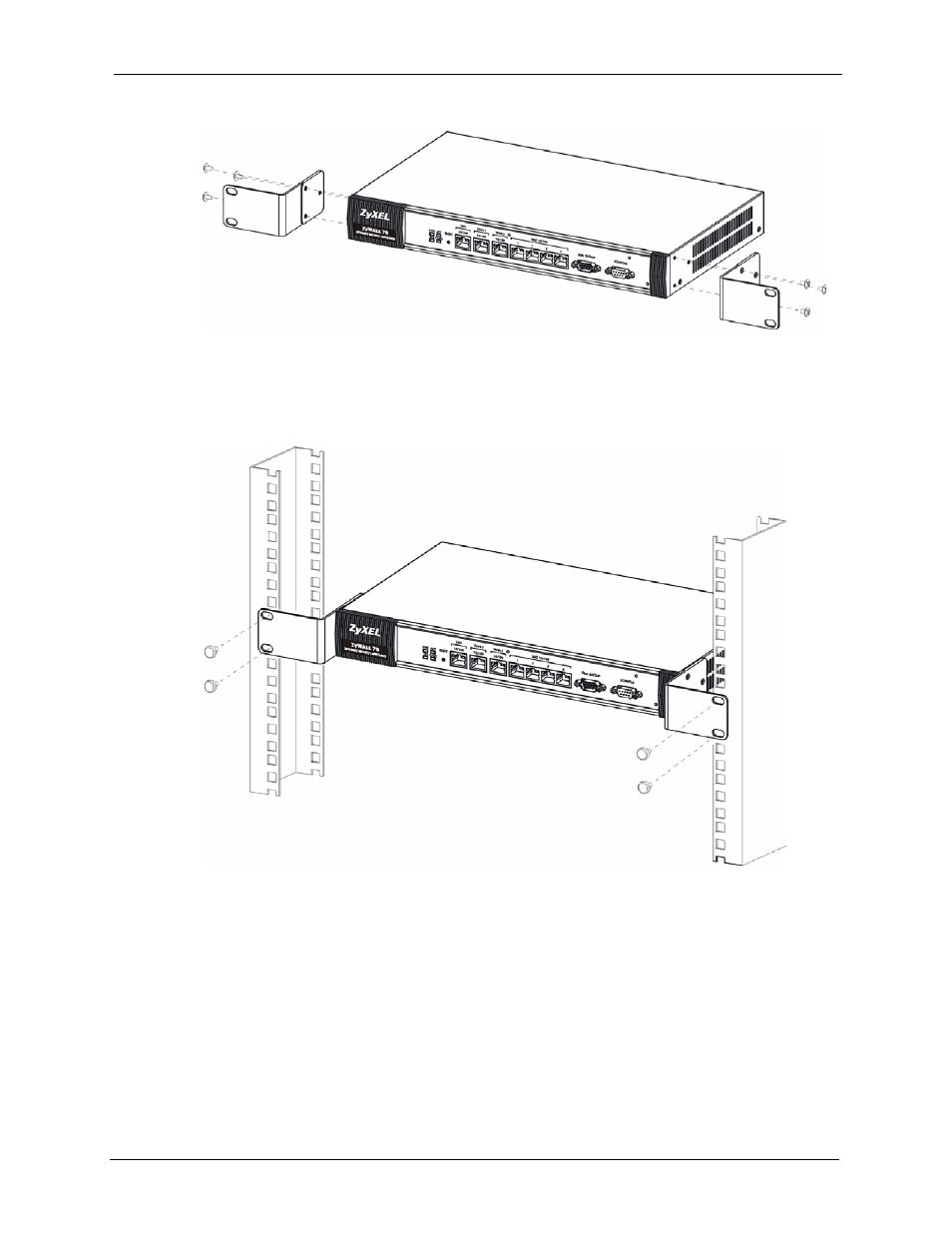

Figure 415 Attaching Mounting Brackets and Screws
3 After attaching both mounting brackets, position the ZyWALL in the rack by lining up
the holes in the brackets with the appropriate holes on the rack. Secure the ZyWALL to
the rack with the rack-mounting screws.
Figure 416 Rack Mounting
