477 Chapter 30 Logs Screens

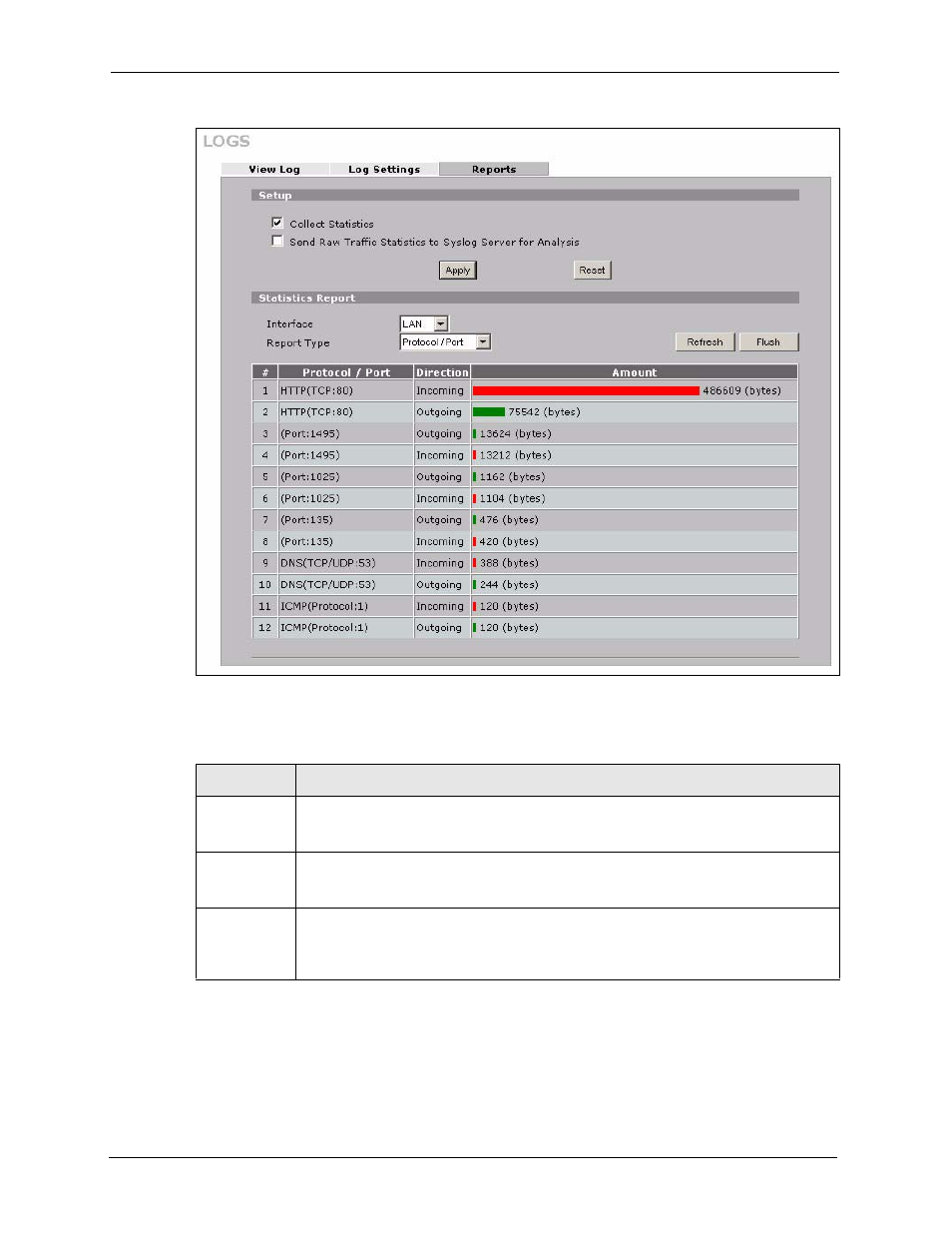

Figure 243 Protocol/Port Report Example
The following table describes the labels in this screen.
Table 169 Protocol/ Port Report
LABEL DESCRIPTION
Protocol/Port This column lists the protocols or service ports for which the most traffic has gone
through the ZyWALL. The protocols or service ports are listed in descending order with
the most used protocol or service port listed first.
Direction This field displays Incoming to denote traffic that is coming in from the WAN to the
LAN, DMZ or WLAN. This field displays Outgoing to denote traffic that is going out
from the LAN, DMZ or WLAN to the WAN.
Amount This column lists how much traffic has been sent and/or received for each protocol or
service port. The measurement unit shown (bytes, Kbytes, Mbytes or Gbytes) varies
with the amount of traffic for the particular protocol or service port. The count starts
over at 0 if a protocol or port passes the bytes count limit (see Table 171 on page 479 ).
