ZyWALL 5/35/70 Series User’s Guide
Chapter 52 Troubleshooting
658

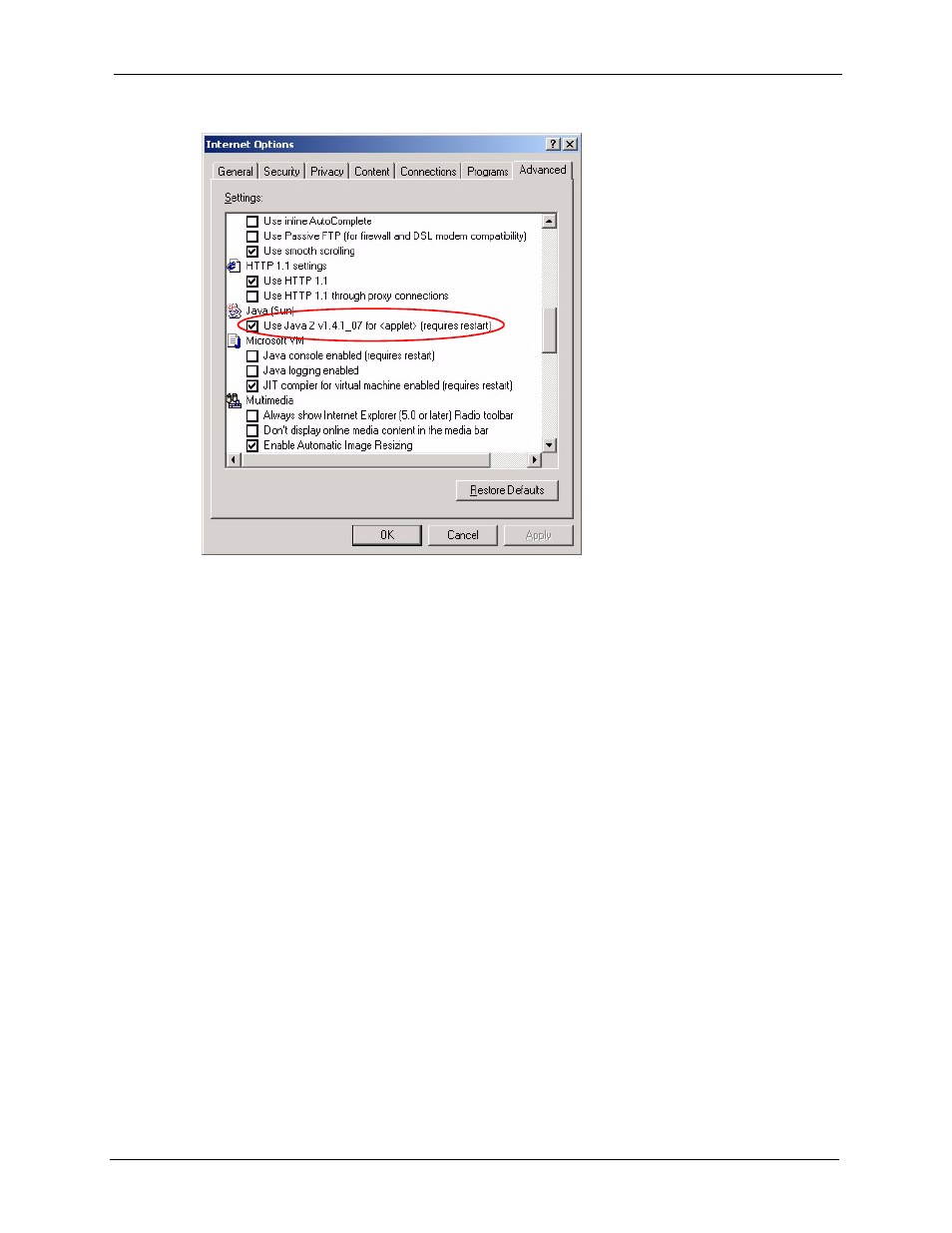

Figure 410 Java (Sun)
52.6 Packet Flow
The following is the packet check flow on the ZyWALL.
LAN/DMZ/WLAN to WAN: LAN/DMZ Data and Call Filtering (in SMT menu 21) ->
Firewall -> IDP -> Anti-Virus -> Anti-Spam -> Remote Node Data Filtering (in SMT menu
21) -> Content Filtering -> NAT
WAN to LAN/DMZ/WLAN: Remote Node Data Filtering (in SMT menu 21) -> NAT ->
Firewall -> IDP -> Anti-Virus -> Anti-Spam -> LAN/DMZ Data Filtering (in SMT menu 21) -
> Content Filtering
