Prestige 660RU-Tx Series User’s Guide
Chapter 1 Getting To Know Your Prestige 36

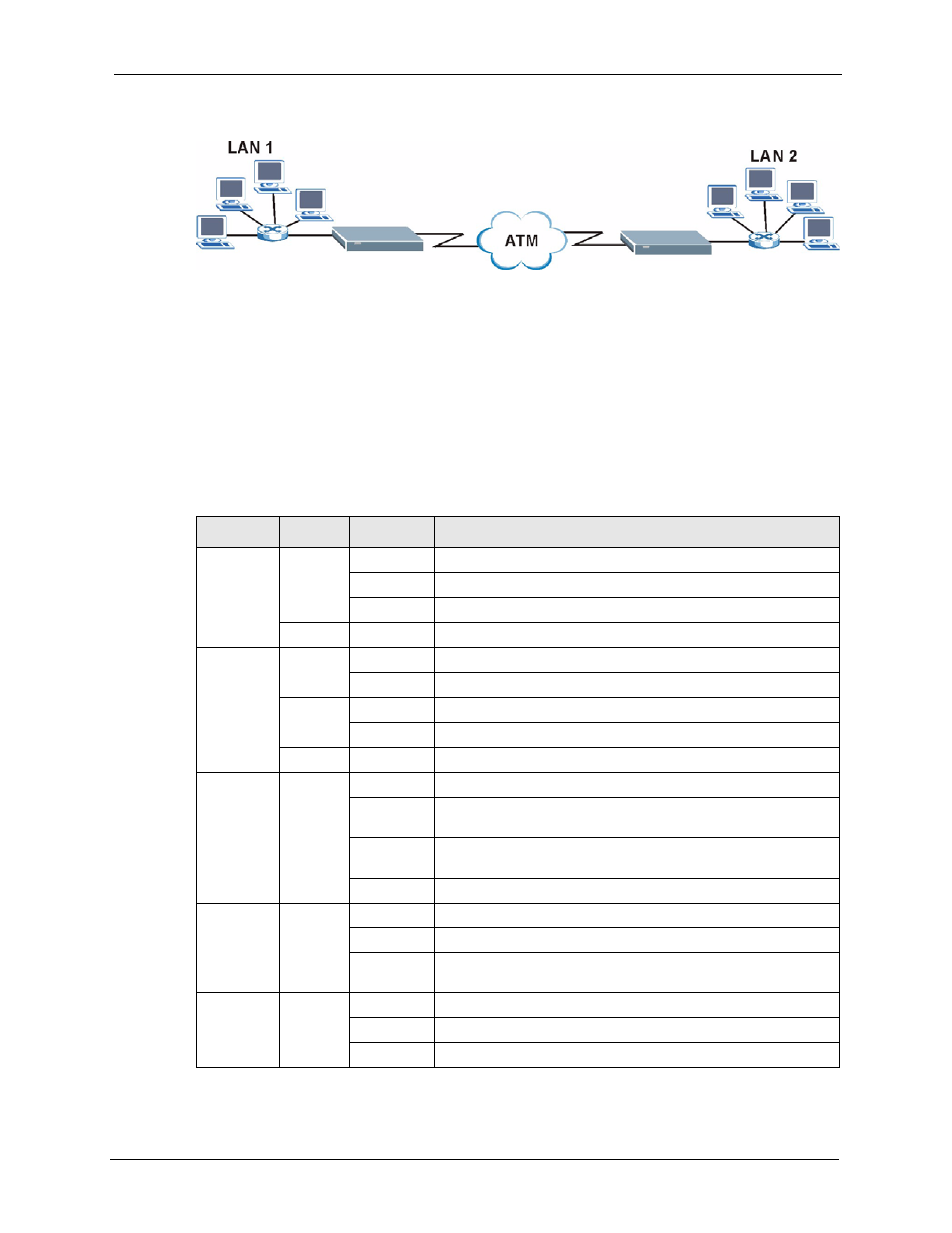

Figure 2 Prestige LAN-to-LAN Application
1.1.3 Prestige Hardware Installation and Connection
Refer to the Quick Start Guide for information on hardware installation and connection.
1.1.4 Front Panel LEDs
The following table describes the LEDs on the front panel.
Table 2 Front Panel LED Description
LED COLOR STATUS DESCRIPTION
PWR/SYS Green On The Prestige is receiving power and functioning properly.
Blinking The Prestige is rebooting.
Off The Prestige is not ready or has malfunctioned.
Red On The power to the Prestige is too low.
10/100M Green On The Prestige has a successful 10Mbps Ethernet connection.
Blinking The Prestige is receiving or sending data.
Amber On The Prestige has a successful 100Mbps Ethernet connection.
Blinking The Prestige is receiving or sending data.
Off The LAN is not connected.
DSL Green On The Prestige is linked successfully to a DSLAM.
Blinking
(Slow)
The Prestige is initializing the DSL line.
Blinking
(Fast)
The Prestige is sending or receiving non-PPP traffic.
Off The DSL link is down.
PPP Amber On The Prestige has a PPP (PPPoA or PPPoE) connection.
Blinking The Prestige is sending or receiving PPPoA or PPPoE traffic.
Off The Prestige does not have a PPP (PPPoA or PPPoE)
connection.
USB Green On The Prestige has an USB connection.
Blinking The Prestige is sending or receiving data via the USB port.
Off The Prestige does not have an USB connection.
