Chapter 4 The Web Configurator

XGS-4528F User’s Guide

52

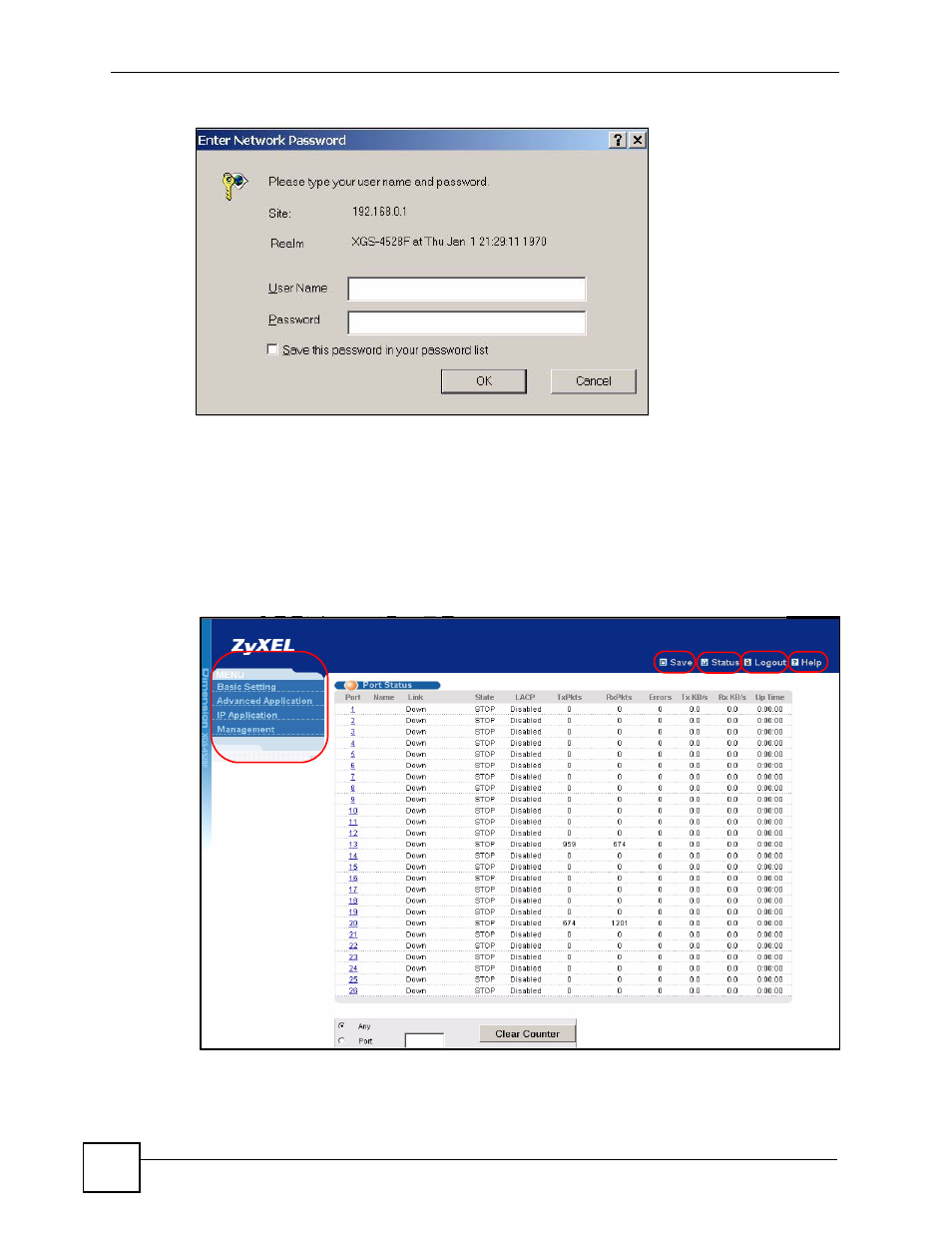

Figure 15 Web Configurator: Login

4 Click OK to view the first web configurator screen.

4.3 The Status Screen

The Status screen is the first screen that displays when you access the web configurator.
The following figure shows the navigating components of a web configurator screen.

Figure 16 Web Configurator Home Screen (Status)

A - Click the menu items to open submenu links, and then click on a submenu link to open the
screen in the main window.

A

B

D

C

E
