Chapter 8 VLAN
XGS-4528F User’s Guide
100
The port-based VLAN setup screen is shown next. The CPU management port forms a VLAN
with all Ethernet ports.
8.11.1 Configure a Port-based VLAN
Select Port Based as the VLAN Type in the Switch Setup screen and then click VLAN
from the navigation panel to display the following screen. Select either All Connected or Port
Isolated from the drop-down list depending on your VLAN and VLAN security requirements.
If VLAN members need to communicate directly with each other, then select All Connected.
Select Port Isolated if you want to restrict users from communicating directly. Click Apply to
save your settings.
The following screen shows users on a port-based, all-connected VLAN configuration.

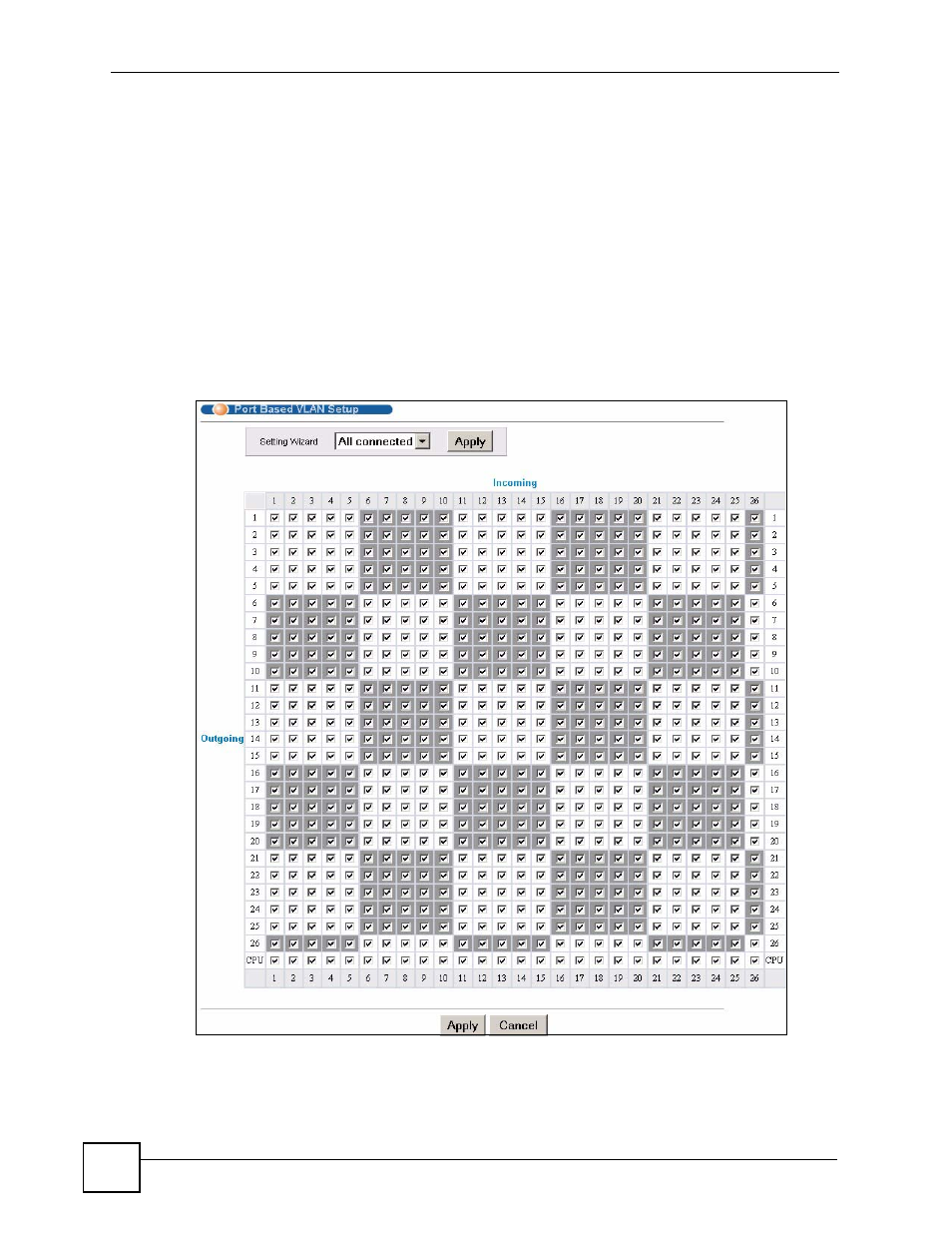

Figure 41 Advanced Application > VLAN > Port Based VLAN Setup (All Connected)
The following screen shows users on a port-based, port-isolated VLAN configuration.
