Chapter 32 DHCP
XGS-4528F User’s Guide
260
32.2 DHCP Status
Click IP Application > DHCP in the navigation panel. The DHCP Status screen displays.

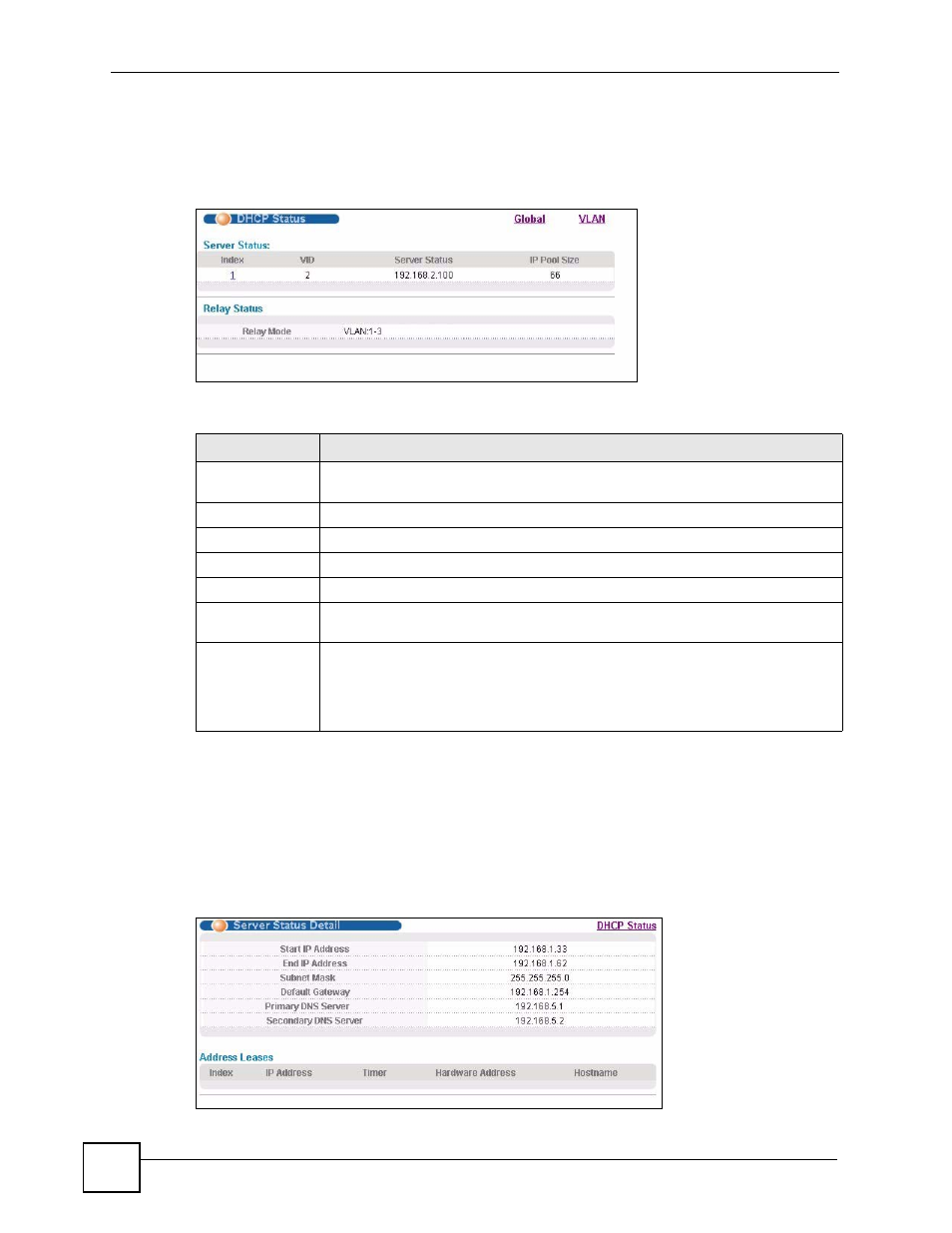

Figure 144 IP Application > DHCP Status
The following table describes the labels in this screen.
32.3 DHCP Server Status Detail
Click IP Application > DHCP in the navigation panel and then click an existing index
number of a DHCP server configuration to view the screen as shown. Use this screen to view
details regarding DHCP server settings configured on the Switch.
Figure 145 IP Application > DHCP > DHCP Server Status Detail
Table 101 IP Application > DHCP Status
LABEL DESCRIPTION
Server Status This section displays configuration settings related to the Switch’s DHCP server
mode.
Index This is the index number.
VID This field displays the VLAN ID for which the Switch is a DHCP server.
Server Status This field displays the starting DHCP client IP address.
IP Pool Size This field displays the number of IP addresses that can be assigned to clients.
Relay Status This section displays configuration settings related to the Switch’s DHCP relay
mode.
Relay Mode This field displays:
•
None - if the Switch is not configured as a DHCP relay agent.
• Global - if the Switch is configured as a DHCP relay agent only.
• VLAN - followed by a VLAN ID if it is configured as a relay agent for specific
VLAN(s).
