Chapter 28 OSPF
XGS-4528F User’s Guide
233

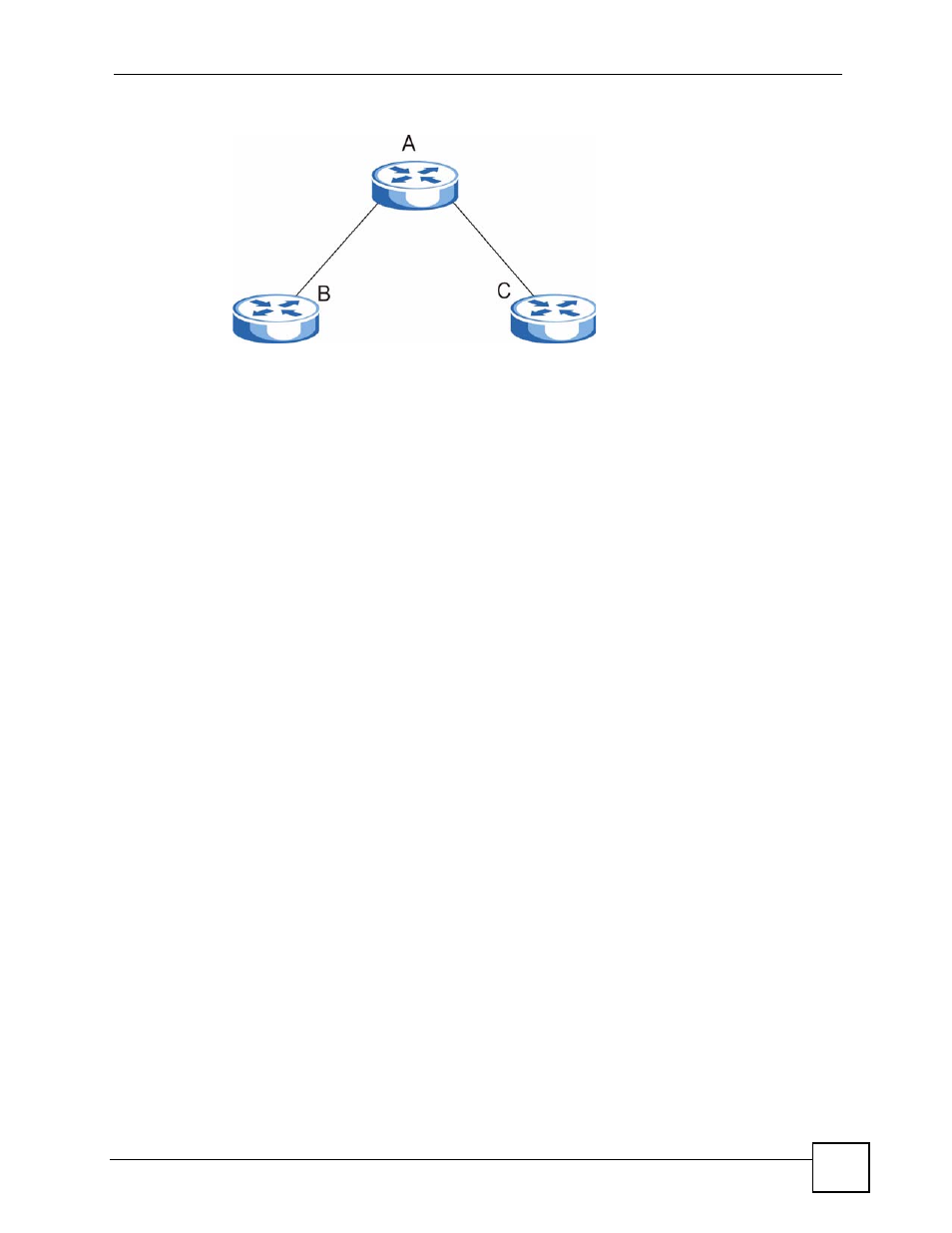

Figure 120 OSPF Router Election Example
You can assign a priority to an interface which determines whether this router will be elected
to be a DR or BDR. The router with the highest priority becomes the DR, while a router with a
priority of 0 does not participate in router elections. In
Figure 120 on page 233 you can assign
a priority of 0 to routers B and C, thereby ensuring they do not become DR or BDR and assign
a priority of 1 to router A to make sure that it does become the DR.
28.1.5 Configuring OSPF
To configure OSPF on the Switch , do the following tasks
1 Enable OSPF
2 Create OSPF areas
3 Create and associate interface(s) to an area
4 Create virtual links to maintain backbone connectivity.
28.2 OSPF Status
Use this screen to view current OSPF status. Click IP Application > OSPF in the navigation
panel to display the screen as shown next. See
Section 28.1 on page 231 for more information
on OSPF.
