ZyXEL Communications XGS-4528F - Manual (Page 143)

Chapter 16 Port Authentication
XGS-4528F User’s Guide
143
16.2 Port Authentication Configuration
To enable port authentication, first activate the port authentication method(s) you want to use
(both on the Switch and the port(s)), then configure the RADIUS server settings in the Auth
and Acct > Radius Server Setup screen.
To activate a port authentication method, click Advanced Application > Port
Authentication in the navigation panel. Select a port authentication method in the screen that
appears.

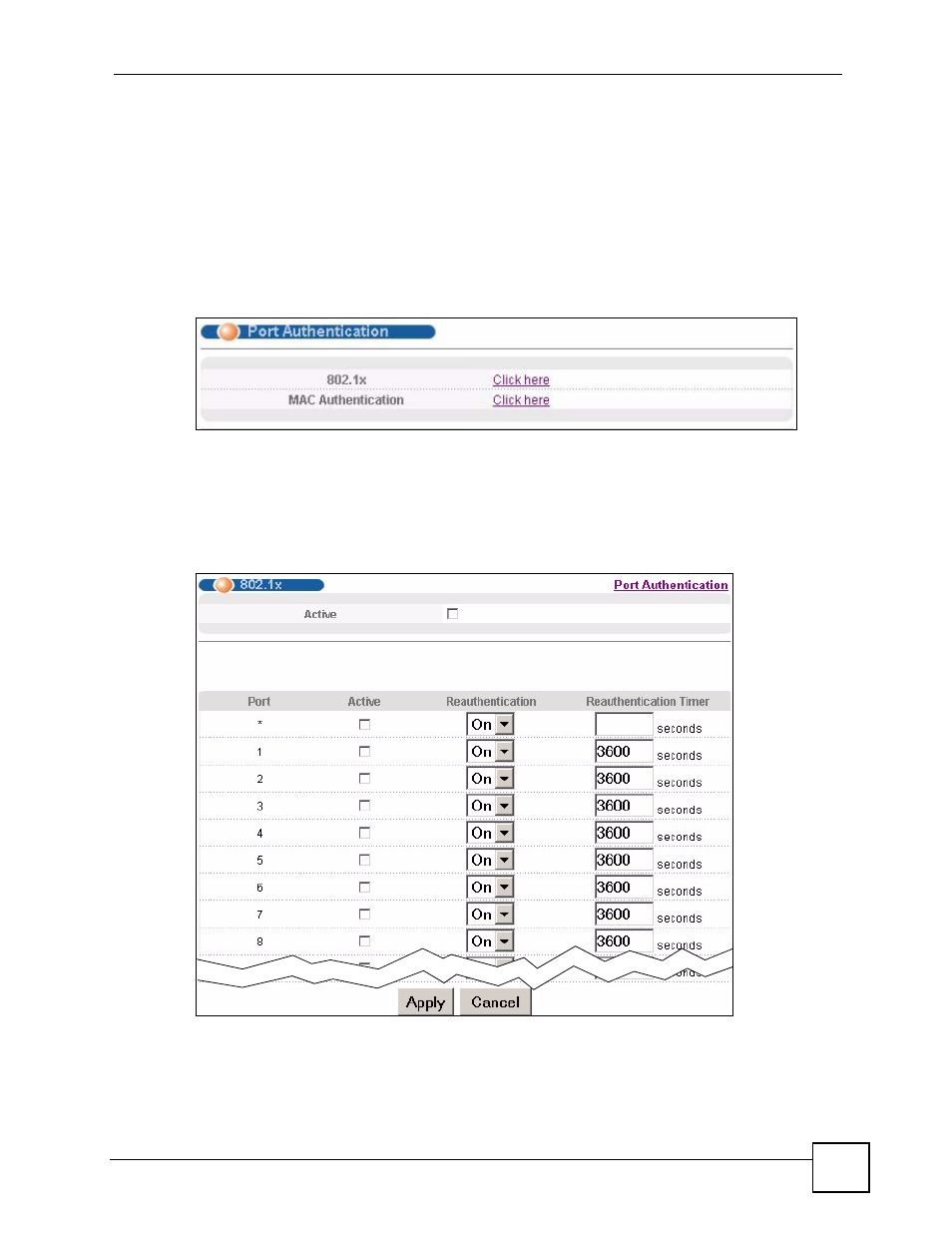

Figure 68 Advanced Application > Port Authentication
16.2.1 Activate IEEE 802.1x Security
Use this screen to activate IEEE 802.1x security. In the Port Authentication screen click
802.1x to display the configuration screen as shown.
Figure 69 Advanced Application > Port Authentication > 802.1x
