Chapter 28 OSPF
XGS-4528F User’s Guide
238
28.4.1 View OSPF Area Information Table
The bottom of the OSPF Configuration screen displays a summary table of all the OSPF
areas you have configured.

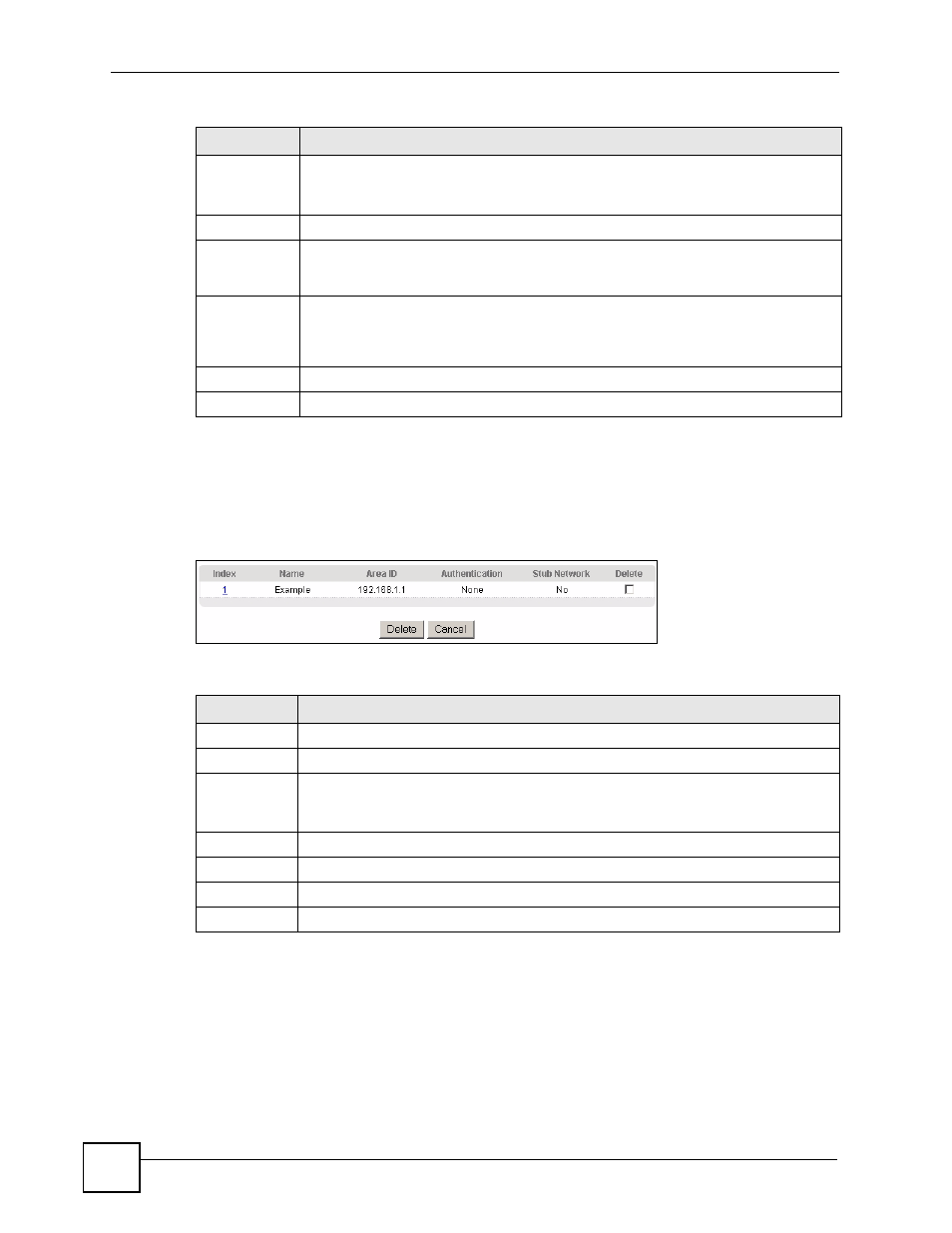

Figure 124 IP Application > OSPF Configuration: Summary Table
The following table describes the related labels in this screen.
28.5 Configuring OSPF Interfaces
To configure an OSPF interface, first create an IP routing domain in the IP Setup screen (see
for more information). Once you create an IP routing domain, an OSPF
interface entry is automatically created. See
for more information on
OSPF.
Stub Network
Select this option to set the area as a stub area.
If you enter 0.0.0.0 in the Area ID field, the settings in the Stub Area fields are
ignored.
No Summary
Select this option to set the Switch to not send/receive LSAs.
Default Route
Cost
Specify a cost (between 0 and 16777214) used to add a default route into a stub area
for routes which are external to an OSPF domain. If you do not set a route cost, no
default route is added.
Add
Click Add to save your changes to the Switch’s run-time memory. The Switch loses
these changes if it is turned off or loses power, so use the Save link on the top
navigation panel to save your changes to the non-volatile memory when you are done
configuring.
Cancel
Click Cancel to begin configuring this screen afresh.
Clear
Click Clear to set the above fields back to the factory defaults.
Table 90 IP Application > OSPF Configuration: Area Setup (continued)
LABEL
DESCRIPTION
Table 91 IP Application > OSPF Configuration: Summary Table
LABEL
DESCRIPTION
Index
This field displays the index number of an area.
Name
This field displays the descriptive name of an area.
Area ID
This field displays the area ID (that uses the format of an IP address in dotted decimal
notation) that uniquely identifies an area.
An area ID of 0.0.0.0 indicates the backbone.
Authentication This field displays the authentication method used (None, Simple or MD5).
Stub Network
This field displays whether an area is a stub network (Yes) or not (No).
Delete
Click Delete to remove the selected entry from the summary table.
Cancel
Click Cancel to clear the Delete check boxes.
