Chapter 40 IP Table

XGS-4528F User’s Guide

318

40.2 Viewing the IP Table

Click Management > IP Table in the navigation panel to display the following screen.

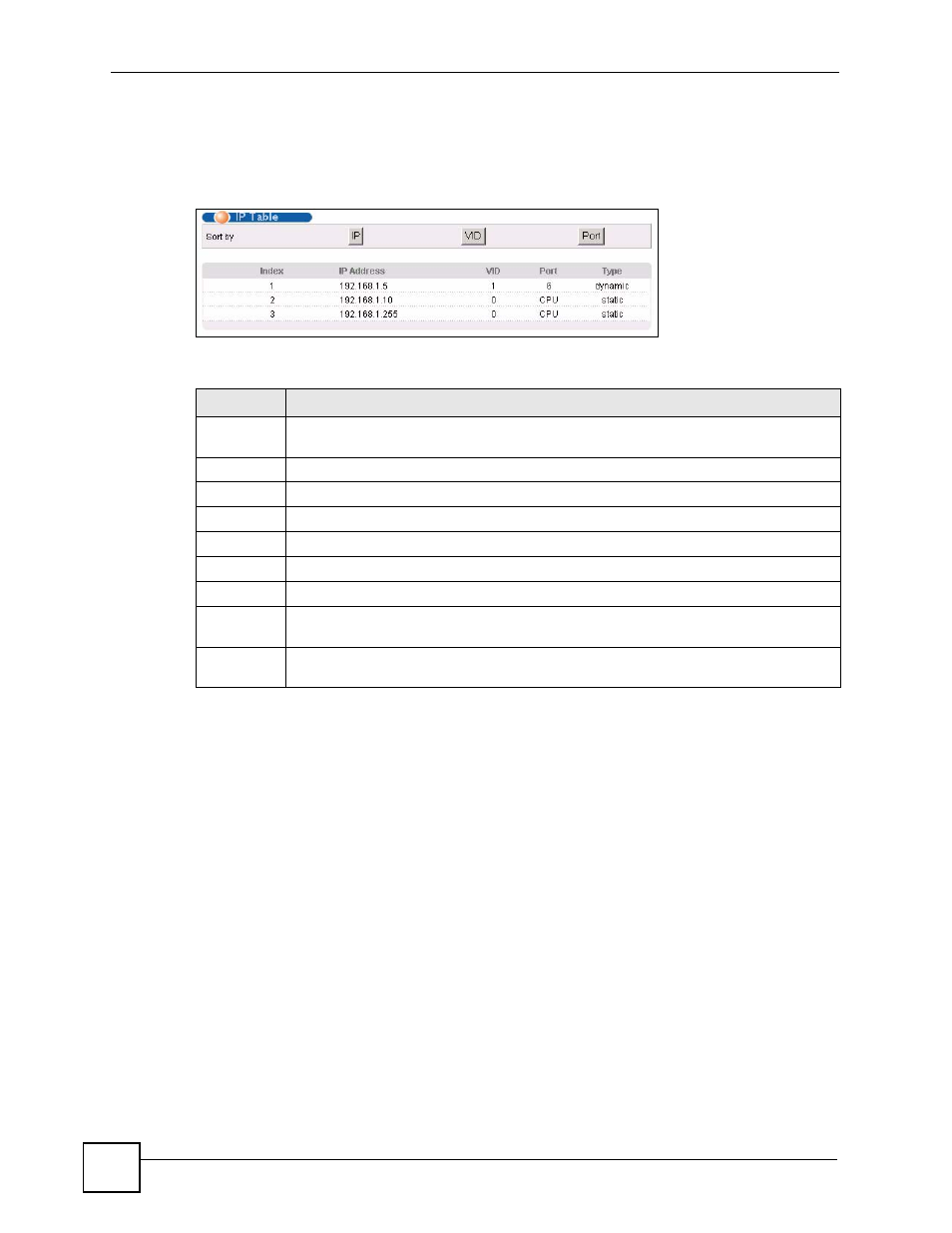

Figure 198 Management > IP Table

The following table describes the labels in this screen.

Table 134 Management > IP Table

LABEL

DESCRIPTION

Sort by

Click one of the following buttons to display and arrange the data according to that

button type. The information is then displayed in the summary table below.

IP

Click this button to display and arrange the data according to IP address.

VID

Click this button to display and arrange the data according to VLAN group.

Port

Click this button to display and arrange the data according to port number.

Index

This field displays the index number.

IP Address

This is the IP address of the device from which the incoming packets came.

VID

This is the VLAN group to which the packet belongs.

Port

This is the port from which the above IP address was learned. This field displays CPU to

indicate the IP address belongs to the Switch.

Type

This shows whether the IP address is dynamic (learned by the Switch) or static

(belonging to the Switch).
