Chapter 11 Spanning Tree Protocol
XGS-4528F User’s Guide
117
11.6 Configure Multiple Rapid Spanning Tree Protocol
To configure MRSTP, click MRSTP in the Advanced Application > Spanning Tree
Protocol screen. See
Section 11.1 on page 107 for more information on MRSTP.

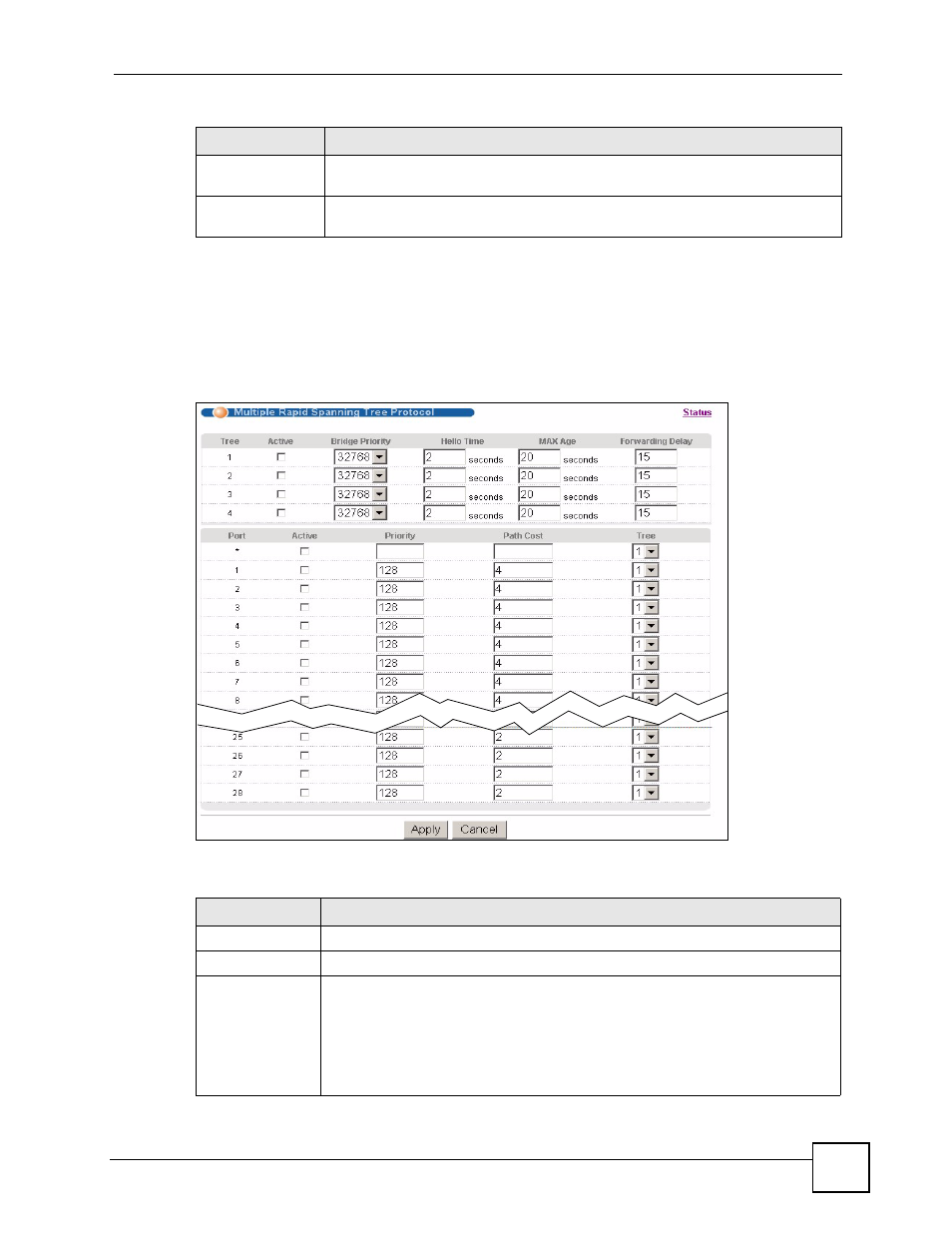

Figure 54 Advanced Application > Spanning Tree Protocol > MRSTP
The following table describes the labels in this screen.
Topology
Changed Times
This is the number of times the spanning tree has been reconfigured.
Time Since Last
Change
This is the time since the spanning tree was last reconfigured.
Table 28 Advanced Application > Spanning Tree Protocol > Status: RSTP (continued)
LABEL DESCRIPTION
Table 29 Advanced Application > Spanning Tree Protocol > MRSTP
LABEL DESCRIPTION
Status Click Status to display the MRSTP Status screen (see Figure 53 on page 116 ).
Tree This is a read only index number of the STP trees.
Active Select this check box to activate an STP tree. Clear this checkbox to disable an
STP tree.
Note: You must also activate Multiple Rapid Spanning Tree in the
Advanced Application > Spanning Tree Protocol >
Configuration screen to enable MRSTP on the Switch.
