Menu Tree
Introduction Printer Options Menu Tree Technical Info Error Messages Troubleshooting
3

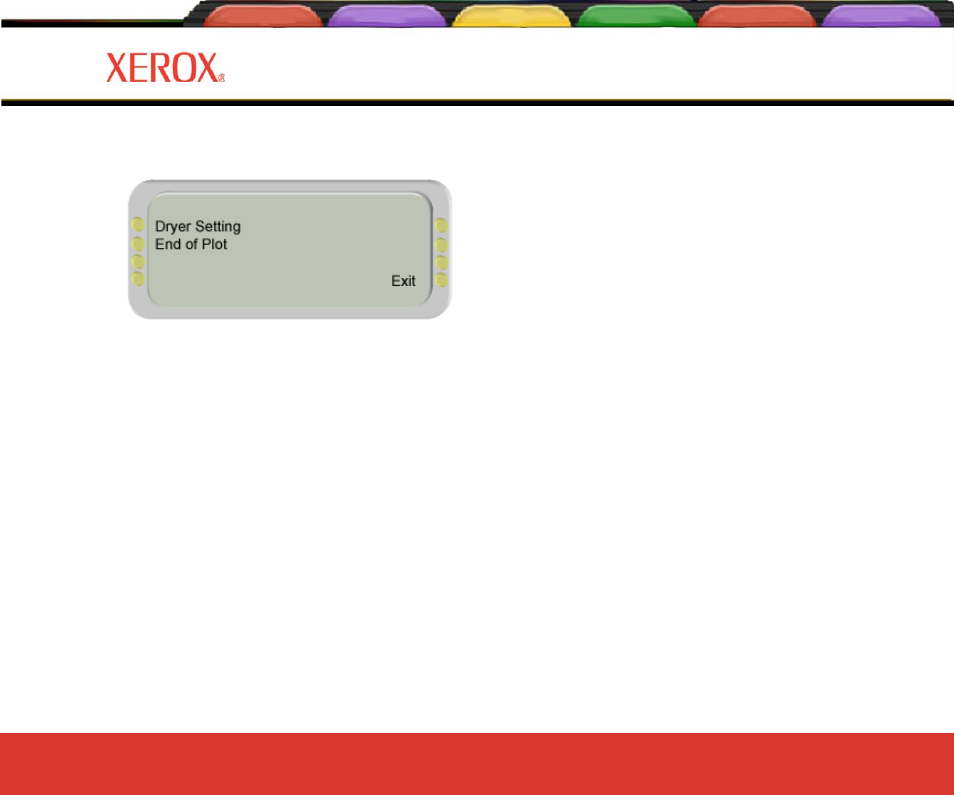

Dryer Menu
Dryer Setting provides access to a selection screen for 12 different dryer/fan settings.
End of Plot provides access to a selection screen in which you can define how the end of a plot is dried. At
the completion of a print job, End of Plot (EOP) Dry ON with Rewind enables the printer to
automatically advance the media at the printing speed 12 inches to allow the image to fully
pass the heater. The media is then fed back into the printer at 25% of the normal reserve speed
to avoid cockling on the retract move. Dry ON without Rewind allows the media to be ad-
vanced over the heater, but there may be blank media between prints. End of Print Dry OFF
does not perform this at job completion and should be used when multiple plots are being
printed.
Exit returns to the Setup menu.
