Page 21 O
PERATING
M
ANUAL
REMOTE
B A ANT
KEY BACKUP
LIN
CAT DVS-2
BAND DATA
+13.8V TRV TX GND RX ANT
PACKET RTTY PTT
EXT
ALC EXT SPKR PATCH AF OUT
GND OFF
OFF IN O U T
CW
SIDETONE ON
A C C
ON
OUTPUT
DC 13.8V
200 mA
INPUT
DC 13.8V
20 A
INPUT
AC 100-120V ~
50-60Hz 6A FUSE
T8A
DC IN ~ AC IN
C
O
M
2
~
A
C
I
N
G
N
D
C
A
T

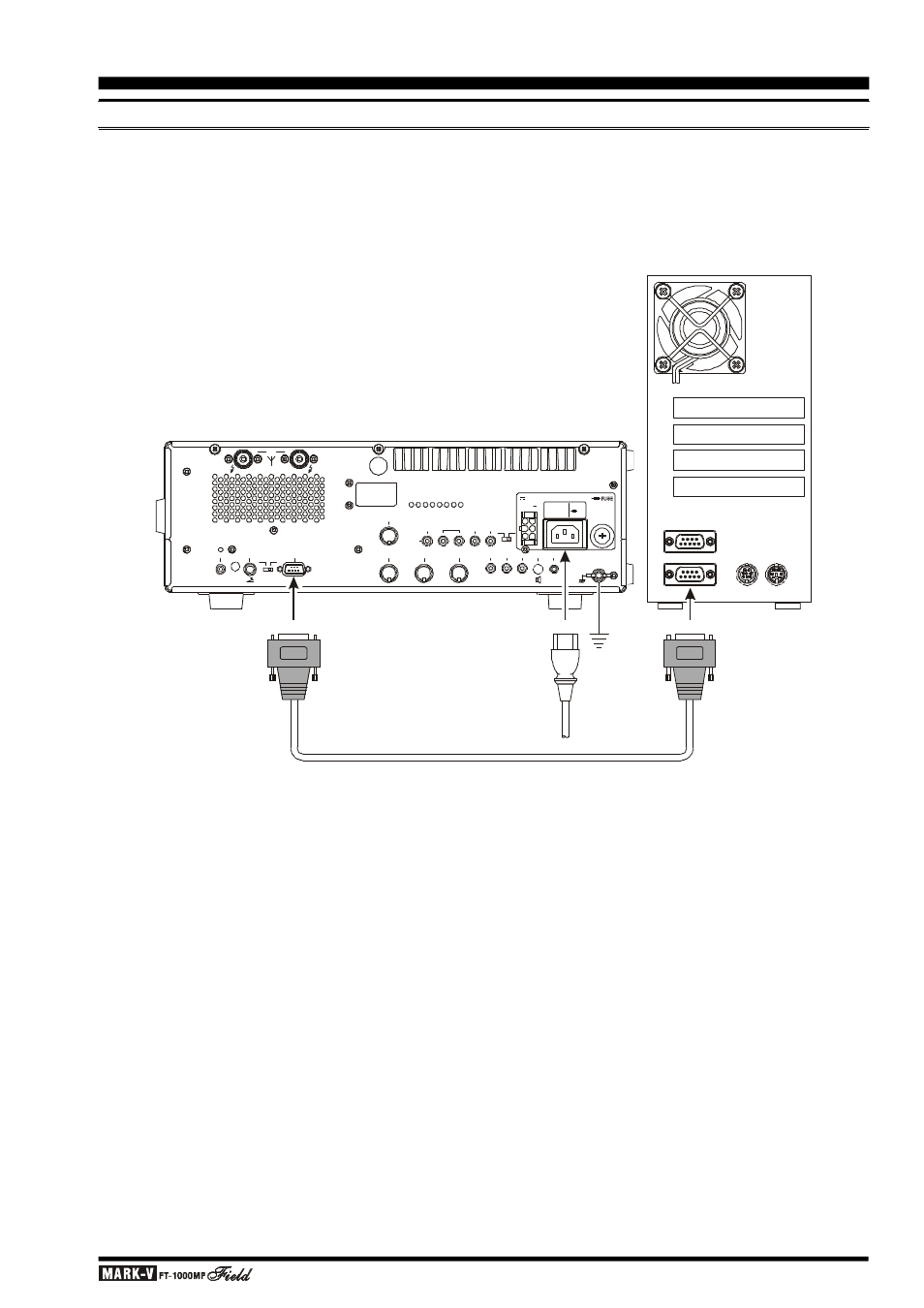

RS-232C Cable
A
CCESSORY
I
NSTALLATION
P
ERSONAL
C
OMPUTER
I
NTERFACING FOR
C
ONTEST
S
OFTWARE
,
ETC
.
The MARK-V FT-1000MP Field features a built-in
level converter, allowing direct connection from the rear-
panel
CAT jack to the serial port of your computer,
without the need for any external converter box.
When your software requests serial port configura-
tion information, set it for “4800,N,8,2” (4800 baud, No
Parity, 8 Data Bits, and 2 Stop Bits). Be certain to con-
figure and activate any required “TSR” (Terminate-and-
Stay-Resident) utilities before beginning computer-con-
trolled transceiver operation (your software’s instruc-
tion manual will describe any such requirement).
Details regarding the programming protocols for the
CAT system may be found beginning on page 86.
