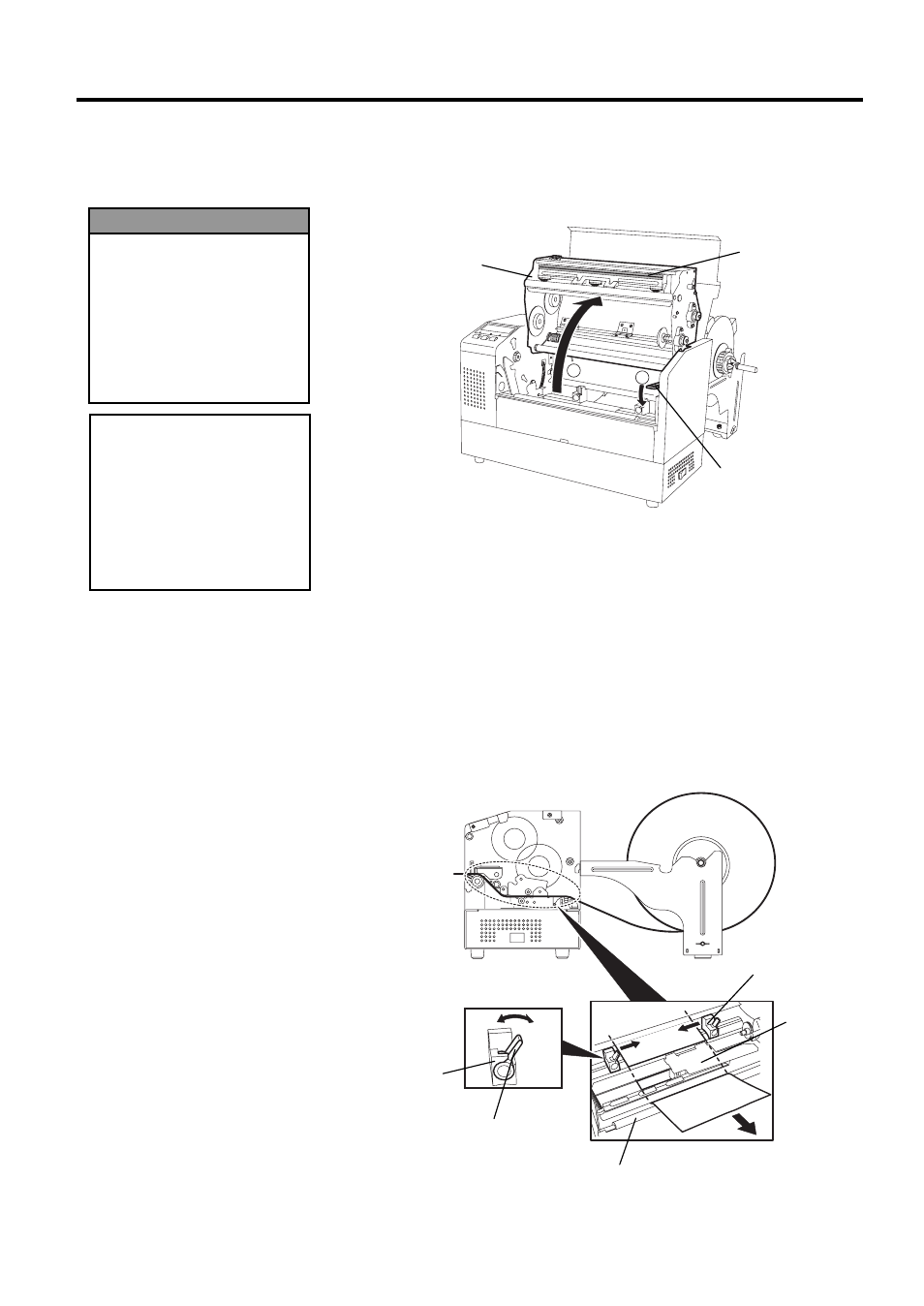

2. PRINTER SETUP ENGLISH VERSION EO1-33028
2.7 Loading the Media
E2-10
2.7.3 Loading Media into the
Printer (Cont.)
2. Release the Print Head Block by pressing down on the Head Block
Release Lever
c
as shown below.
3. Raise the Print Head Block to its fully open position as shown by the
arrow
d
in the above diagram.
4. Release the locking levers on the two paper guides as shown in the
figure below.
5. Grasp the right hand Paper Guide and move it to the right to open the
Paper Guides wide enough to accept the media.
6. Feed the media between the two guides.
7. Feed the paper under the Upper Sensor Ass’y and pull the paper until
it extends past the Platen. (until it extends past the cutter outlet when
the optional cutter is attached.)
8. Grasp the right Paper Guide and move it to the left to close both Paper
Guides and automatically center the media.
9. Press the Paper Guide Locking Levers to lock the Paper Guides in
place.
CAUTION!
Be careful not touch the
Print Head Element when
raising the Print Head
Block. Failure to do this
may cause missing dots
by static electricity or other
print quality problems.
•
The Print Head may
become hot. Do not
touch the Print Head.
•
Risk of injuries. Do not
touch moving parts.
Disconnect the mains
before maintenance of
ribbon and media.
WARNING!
1
2
Print Head Block
Print Head Element
Head Block
Release Lever
Lock Free
Paper Guide
Platen
Paper Guide
Locking Lever
Upper Sensor
Ass’y
Paper Guide
