2. PRINTER SETUP ENGLISH VERSION EO1-33028
2.3 Assembling the Accessories
E2- 3
2.3 Assembling the
Accessories
2.3.1 Assembling the Supply
Holder Frame
The following procedure outlines the steps required to assemble the
Supply Holder Frame and attach the frame to the B-852 printer in
preparation for loading the media.

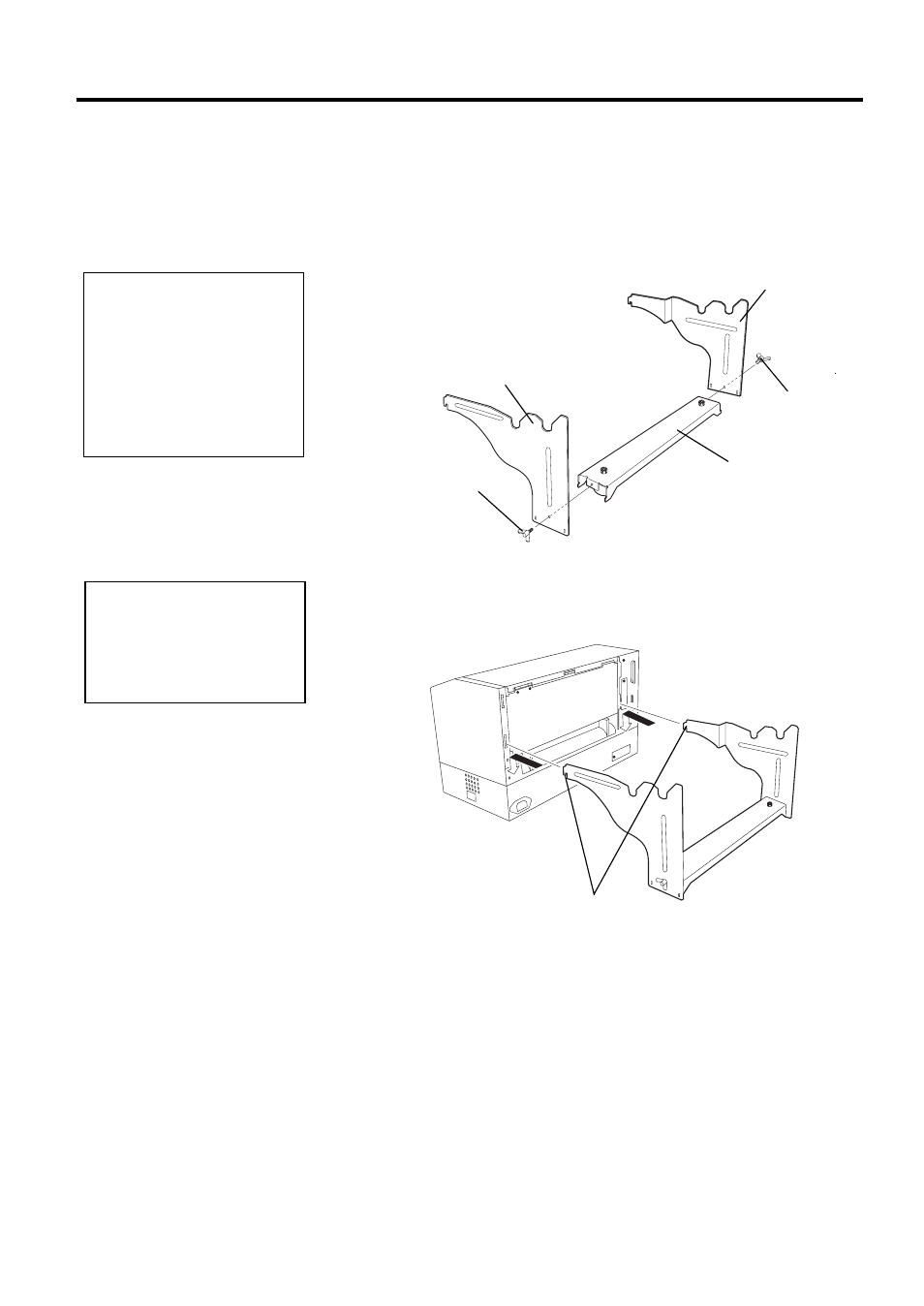

1. Assemble the Supply Holder Frame (L) and Supply Holder Frame (R)
to the Supply Holder Base using the two M-4X6 Wing Bolts supplied,
as shown below.
2. Attach the assembled Supply Holder Frame to the rear of the B-852
printer by inserting the hooks of the Frame into the two slots in the
rear of the printer as shown in the figure below.
NOTE:
Make sure that the two small
flanges at each end of the
Supply Holder Base fit into
the small rectangular holes at
the bottom of the Supply
Holder Frames before
tightening the Wing Bolts.
NOTE:
After attaching the supply
holder frame to the printer,
make sure that it is assembled
firmly.
Supply Holder Base
Supply Holder Frame (L)
Supply Holder Frame (R)
Wing Bolt
Wing Bolt
Hook
