(2) Reset mode
As shown in (1) above, non-reset and V-reset is available.
([Option]: Doesn’t come as standard. Contact our dealer / distributor for details)
(a) non-reset (Electronic shutter enabled)
VD doesn’t get reset after video readout. The interval of VD signal is as follows.
*Note: Under normal shutter mode, when non-reset is selected on partial scan,
electronic shutter is valid.
Please note that the exposure time is shortened than the setting value
when the external VD is input at shorter than the above VD interval.
(b) V-reset (Electronic shutter disabled)
VD does get reset after video readout. Under internal sync, the interval of VD signal is as
follows.
(3) Partial signal [Option]
Programmable mode input signal
(a) Input level LOW level: From 0 through 0.5V
HIGH level: From 4 through 5V
(b) Input impedance High impedance (10k
Ω)
(c) Polarity Positive (Hi: High-speed transfer)
Note: Items shown as [Option] in this document is not included in your purchase as standard
components. Contact our dealer / distributor for details.

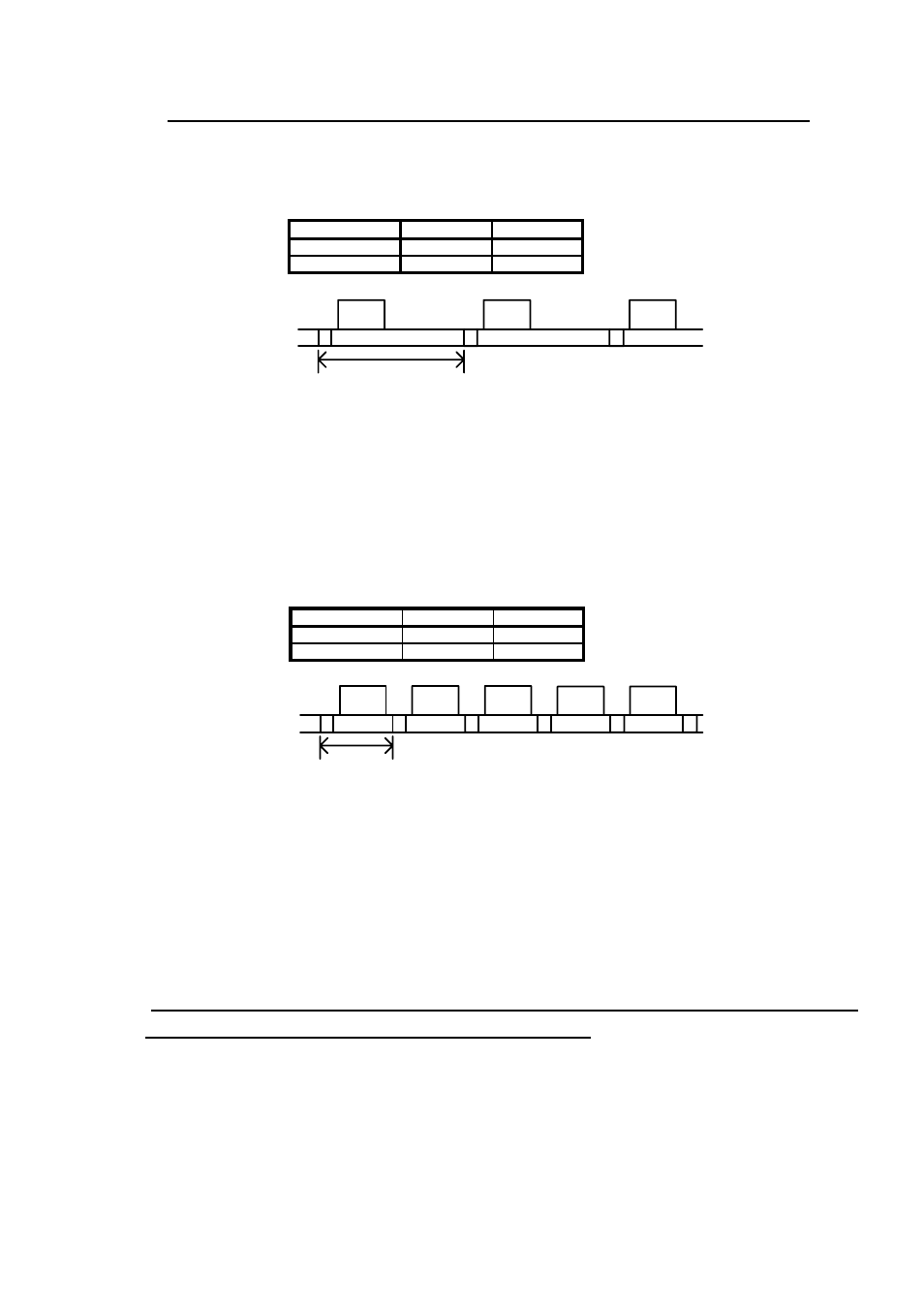

1/2 partial scan 1/4 partial scan
1/60s non-interlace 525H 525H
1/120s interlace 262.5H 262.5H
VIDEO OUT
Partial A Partial B Partial C
VD Interval
1/2 partial scan 1/4 partial scan
1/60s non-interlace 262H 131H
1/120s interlace 131.5H 65.5H
VIDEO OUT
Partial A Partial B Partial C Partial E Partial D
VD interval
D4130891A 27
