(5-4) Restart / Reset
The restart / reset function is available with the ext.VD signal. You can get an arbitrary
slower shutter speed than normal shutter and random trigger shutter.
Here are some notes;
*
The shutter speed (exposure time) is determined by ext. VD signal interval.
**
This function is enabled when the rear-panel shutter speed DIP SW is OFF.
*** Supply consecutive HD.
1/60s Non-interlace
1/120s 2:1 Interlace

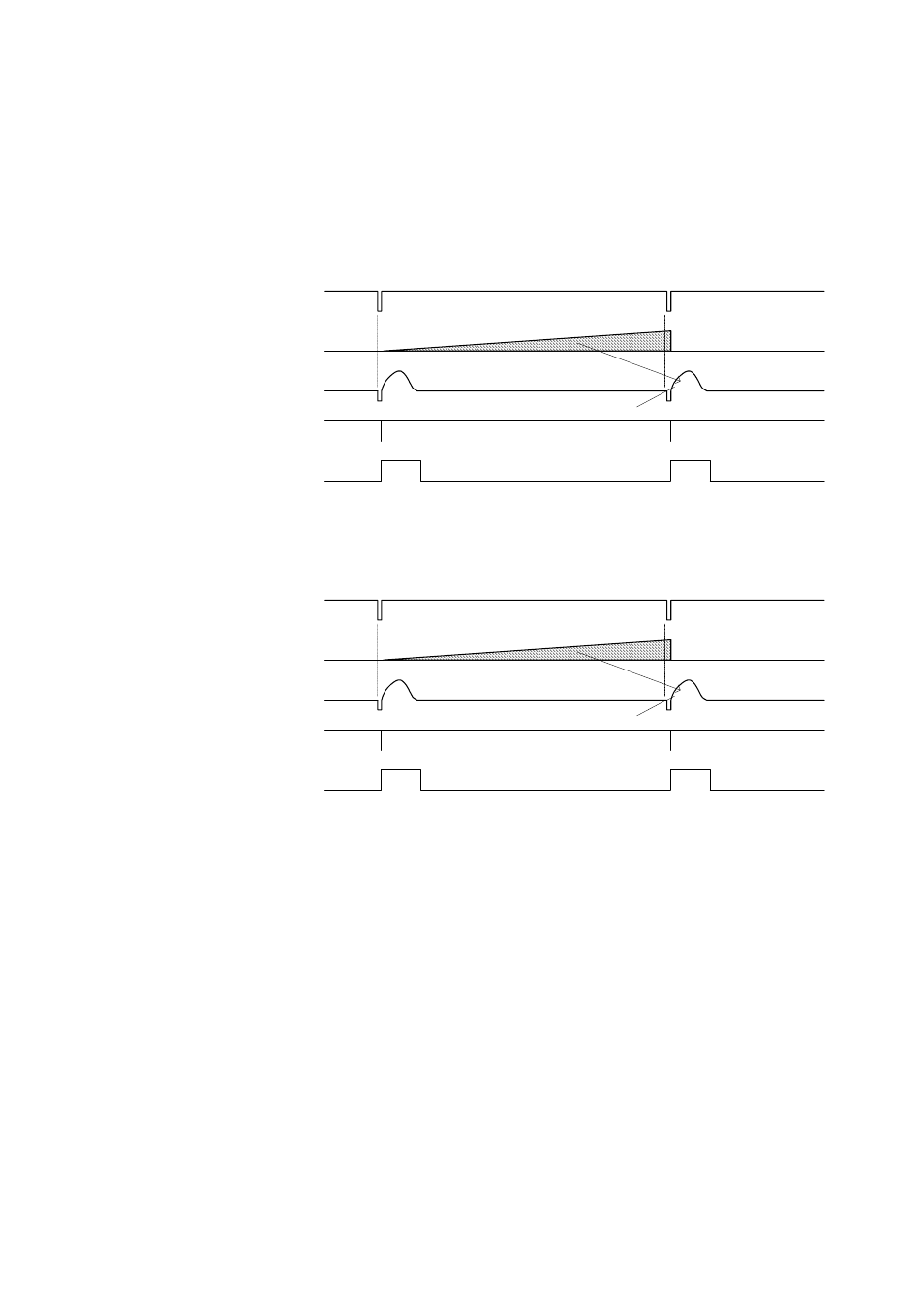

Video output field (ODD/EVEN) is determined by ext. VD falling edge and ext. HD
phase.
VIDEO OUT
CCD Exposure
EXT VD IN
WEN OUT
(Standard)
WEN OUT
[Option]
The exposure time is
determined by VD interval
ODD
phase
ODD
ODD
EVEN
phase
EVEN
EVEN
VIDEO OUT
CCD Exposure
EXT VD IN
WEN OUT
(Standard)
WEN OUT
[Option]
The exposure time is
determined by VD interval
