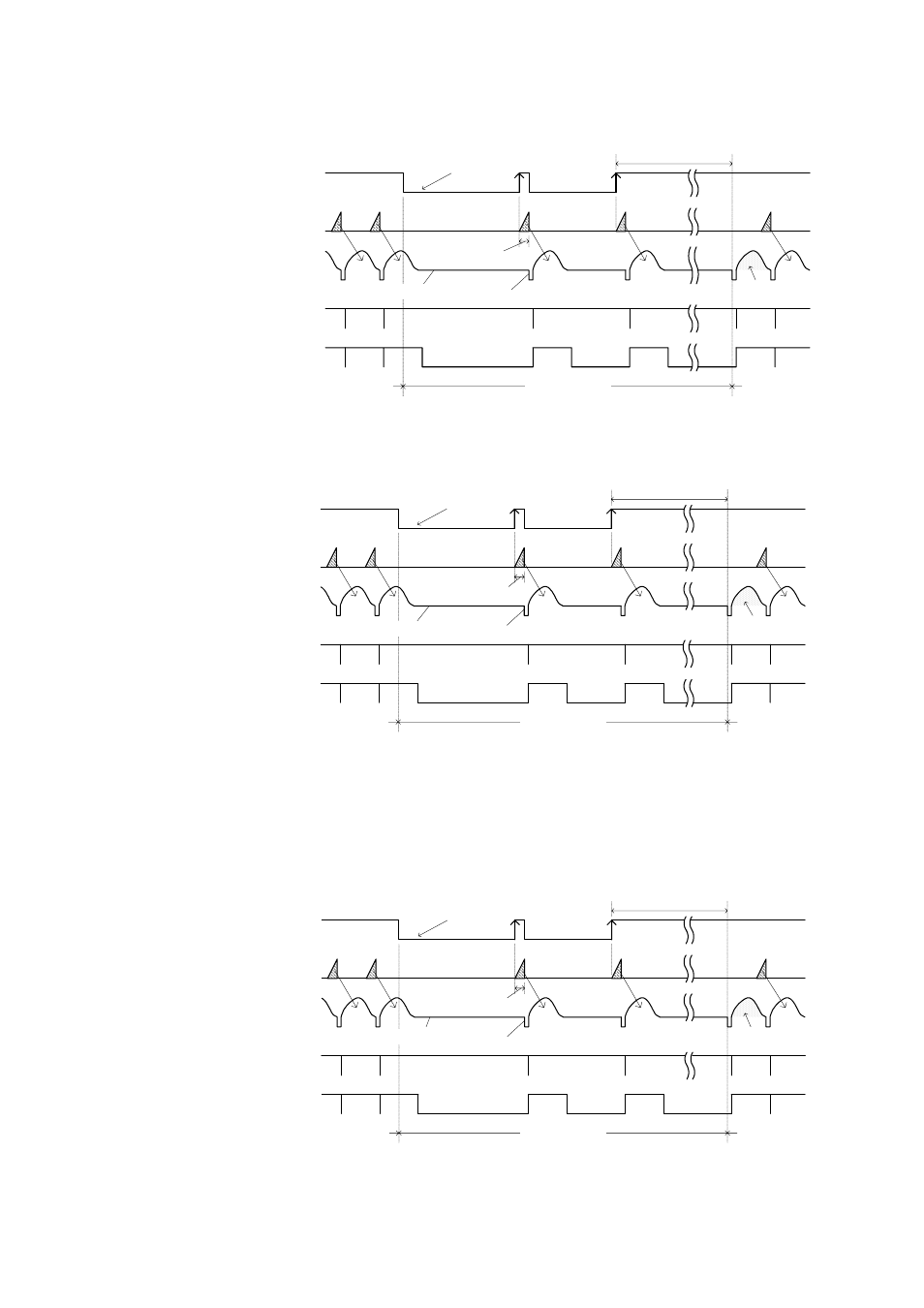

(c)V-reset mode (Under internal sync / external sync --- No VD IN)
Exposure starts at the timing of TRIG signal IN. After each exposure is completed, the
camera outputs video immediately by resetting VD. (HD is not reset)
1/60s Non-interlace
1/120s 2:1 Interlace
Irrespective of TRIG IN phase, the camera always outputs ODD field image.
(d) SYNC reset mode (Under internal sync)
Exposure starts at TRIG signal input timing, resets HD, and outputs video immediately
after exposure by resetting VD.
* Available under FIX mode only.
1/60s Non-interlace
VD,V-SYNC output for 1V only
VD,V-SYNC pause during standby
TRIG IN
(Positive)
VIDEO OUT
CCD Exposure
WEN OUT
(Standard)
WEN OUT
[Option]
TRIG IN not acceptable for
1V after mode chenge
Exposure time
(E-shutter speed or
pulse width)
Definite
Automatically returns to normal shutter
if fixed H level (after approx. 1/6s)
Normal shutter Random trigger shutter Normal shutter
ODD ODD ODD EVEN
ODD
EVEN
image ODD
ODD
TRIG IN
(Positive)
VIDEO OUT
CCD Exposure
WEN OUT
(Standard)
WEN OUT
[Option]
TRIG IN not acceptable for
1V after mode chenge
Exposure time
(E-shutter speed or
pulse width)
VD,V-SYNC output for 1V only VD,V-SYNC pause during standby
Normal shutter Random trigger shutter Normal shutter
Definite
Automatically returns to normal shutter
if fixed H level (after approx. 1/6s)
TRIG IN
(Positive)
VIDEO OUT
CCD Exposure
WEN OUT
(Standard)
WEN OUT
[Option]
Normal shutter Random trigger shutter
TRIG IN not acceptable for
1V after mode chenge
Exposure time
(E-shutter speed)
VD,V-SYNC output for 1V only
VD,V-SYNC pause during standby
Automatically returns to normal shutter
if fixed H level (after approx. 1/6s)
Definite
Normal shutter
D4130891A 10
