[External sync spec]
(1) Ext. sync input signal
HD/VD
(2) Input impedance
75-ohm / High impedance 10k-ohm (switching via rear-panel SW)
(Initial factory setting: High)
(3) Input level
From 2 through 5V (p-p) under high impedance input
From 2 through 4V (p-p) under 75-ohm input
(4) Interlace
1/60s non-interlace or 1/120s 2:1 interlace
(5) Polarity
Negative
(6) Pulse width
HD: 3.2 +/- 1 micro s (LOW)
VD: From 125 through 400 micro s (LOW)
(7) Repeating frequency
f
H
= 31.468kHz +/- 1%
f
V
= f
H
/262.5 or f
H
/525
(8) Phase difference
HD/VD: 0 +/- 5.0 micro s, 1/f
H
/2 +/- 5.0 micro s
[Shutter trigger spec]
Exposure-starting-cue signal in random trigger shutter mode
(1) Input level
LOW level: From 0 through 0.5V(p-p)
HIGH level: From 4 through 5V(p-p)
(2) Input impedance
High impedance (10k-ohm)
(3) Capture timing
Rising edge detection (Positive)
(Falling edge detection (Negative) as [Option])
(4) Pulse width
Minimum 2 micro s
Maximum 1/8s

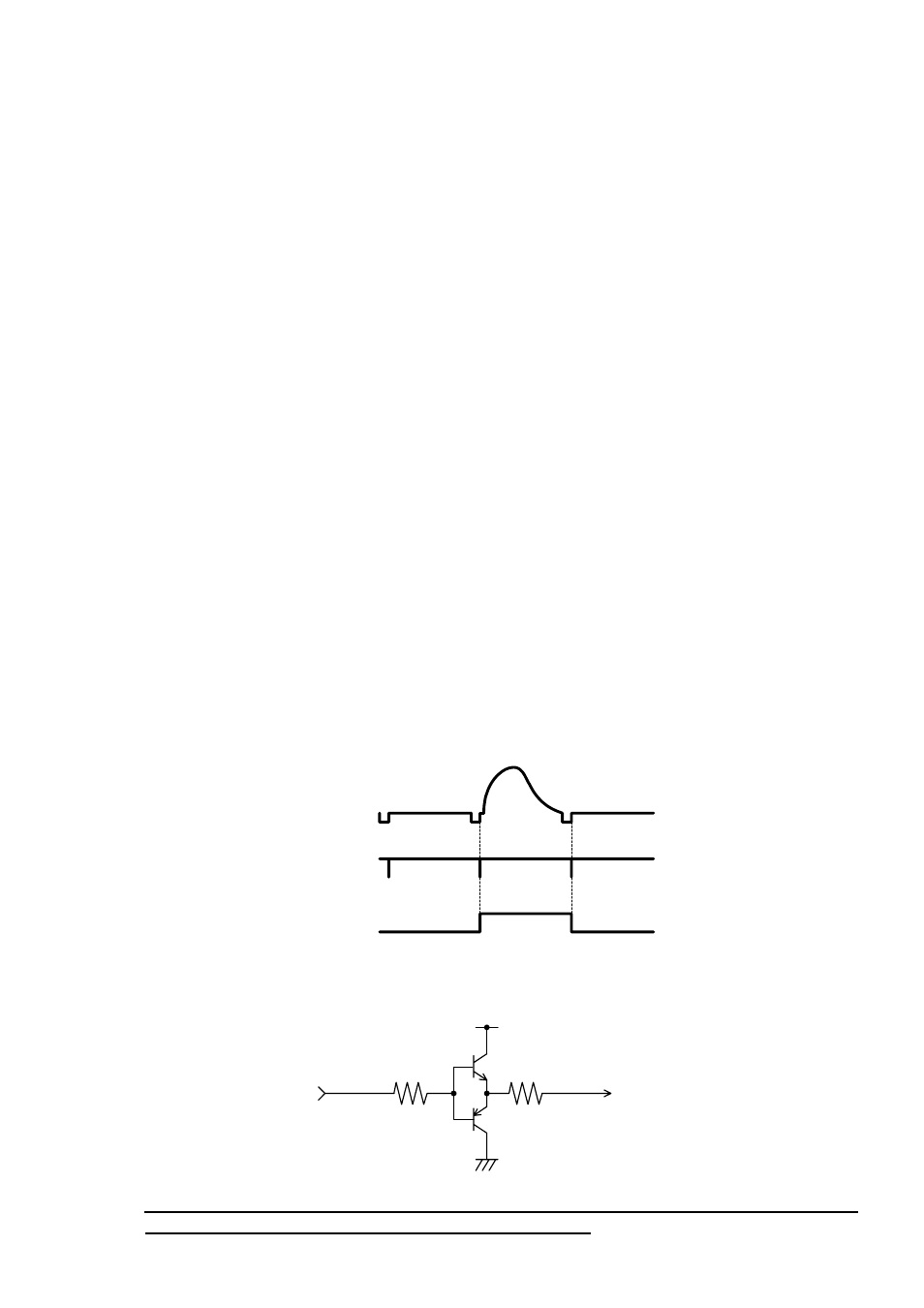

[Sync signal spec]
(1) Readout signal
WEN readout timing pulse
(2) Polarity
Negative (Positive under VIDEO output mode [Option])
(3) Pulse width
1H output (Available under VIDEO output mode [Option])
(4) Output circuit
* Set WEN termination to be high impedance.
Note: Items shown as [Option] in this document is not included in your purchase as standard
components. Contact our dealer / distributor for details.
WEN OUT
50
WEN
5V
D4130891A
