Installing the Equipment
Page 2-12 Reference Guide: TT128x High Definition Professional Receiver/Decoder
ST.RE.E10141.5
2.8.2 ASI Out
Two BNC sockets output ASI Transport Streams with a
maximum data rate of 160 Mbit/s.
NOTE…
These sockets are shared with the HD SDI output, under the control of Menu 5.1
Table 2.3: ASI Out Connector
Item Specification
Connector type BNC 75 Ω socket
Connector designation ASI/HDSDI OUT 1
ASI/HDSDI OUT 2
Pin-outs Centre
Shield
Video output
Ground/Chassis
2.8.3 Audio Outputs

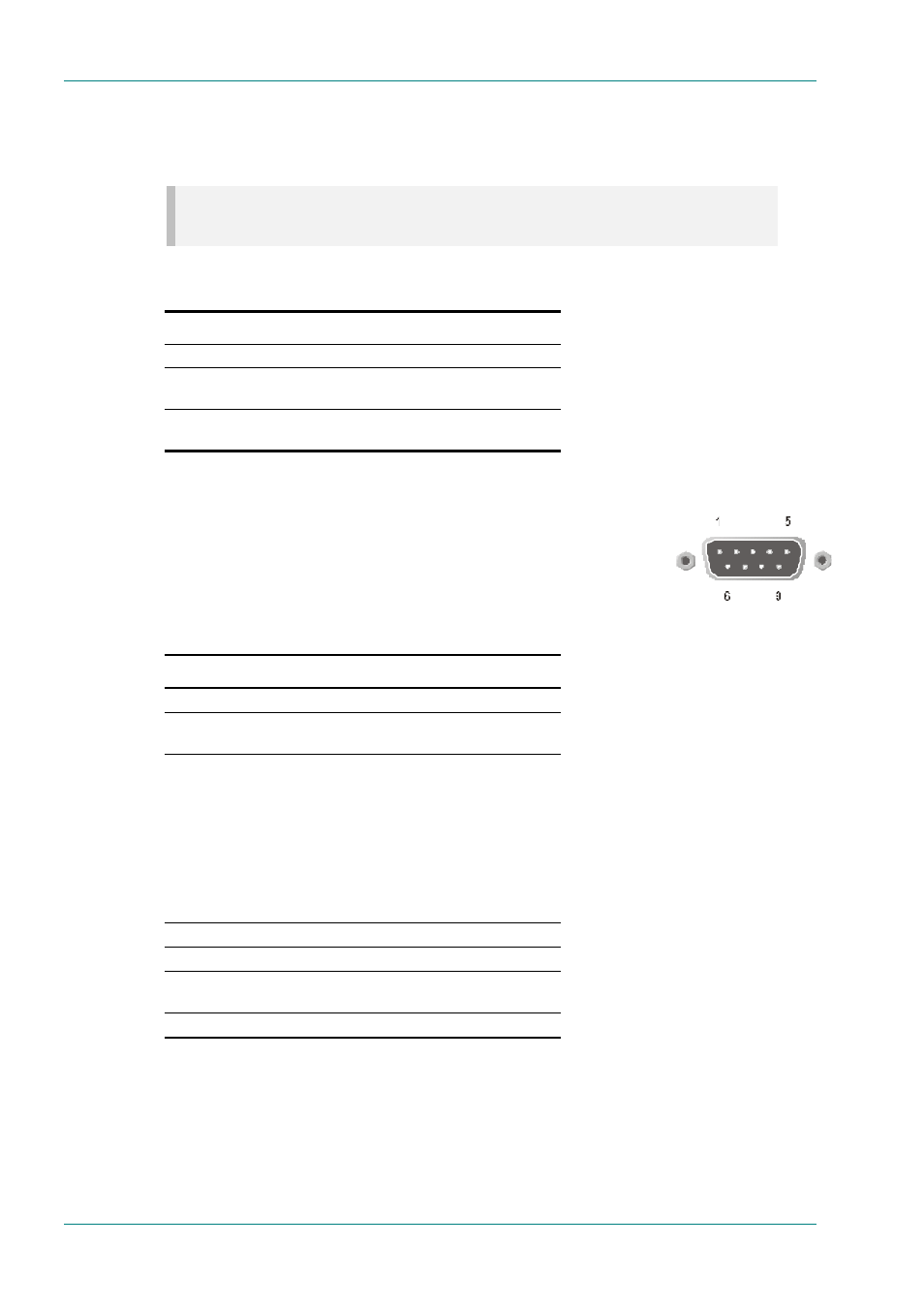

A pair of 9-way male D-type connectors provide two
stereo channels. Each connector carries a single channel
of a stereo pair in both analogue and digital form.
Audio control is through the Service Menu (Menu 3).
Table 2.4: Analogue Audio Connectors
Item Specification
Connector type 9-way, D-type, Male
Connector designations AUDIO 1
AUDIO 2
Pin-outs Pin 1  Digital audio +
Pin 2  Ground
Pin 3  Left +
Pin 4  Right +
Pin 5  Ground
Pin 6  Digital audio -
Pin 7  Ground
Pin 8  Left -
Pin 9  Right -
Nominal output impedance 50 Ω
Maximum data rate 3.072 Mbit/s
Analogue Output level +18 dBm nominal clipping level. Selectable
in range 12 to +24 dBm.
Load impedance ≥600 Ω balanced
AUDIO 1 / 2
