Projected Image Size
NOTE: Use the graph and
tables to help you determine
projected image sizes.

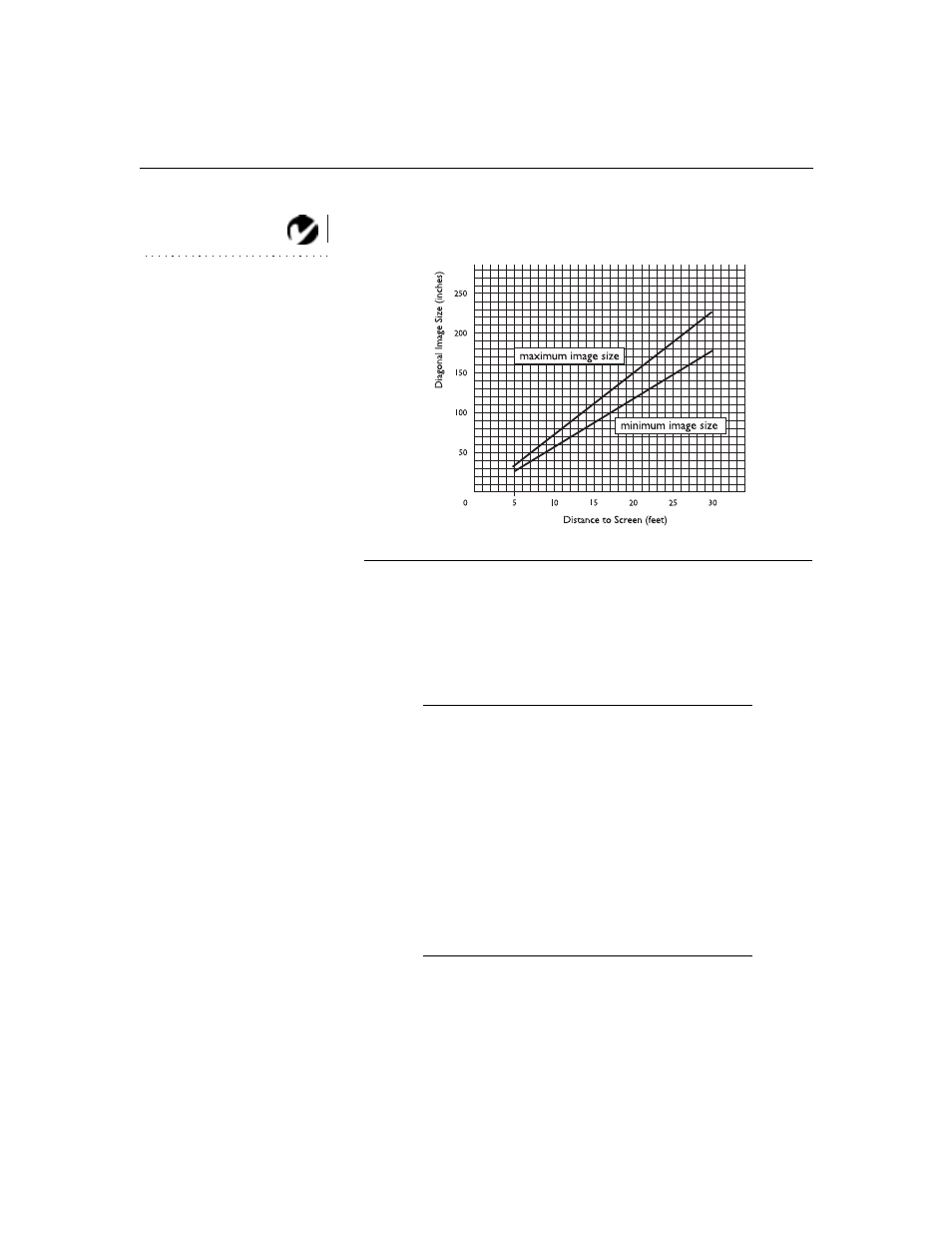

F IGURE 20
Projected image size
Table 1:
Image Size, Width and Height for TDP-B1-maximum image size
Distance to
Screen (feet)
Diagonal
(feet)
Width
(feet)
Height
(feet)
4.9 3.2 2.6 1.9
8 5.2 4.2 3.1
12 7.8 6.3 4.7
16 10.4 8.3 6.3
20 13.0 10.4 7.8
30 19.5 15.6 11.7
Table 2:
Image Size, Width and Height for TDP-B1-minimum image size
Distance to
Screen (feet)
Diagonal
(feet)
Width
(feet)
Height
(feet)
4.9 2.5 2.0 1.5
8 4.1 3.3 2.5
12 6.2 4.9 3.7
16 8.2 6.6 4.9
20 10.3 8.2 6.2
30 15.4 12.3 9.2
