Features and
Benefits
C
D
E
B
A
F
G
D
C
E
B
G
A
F
H

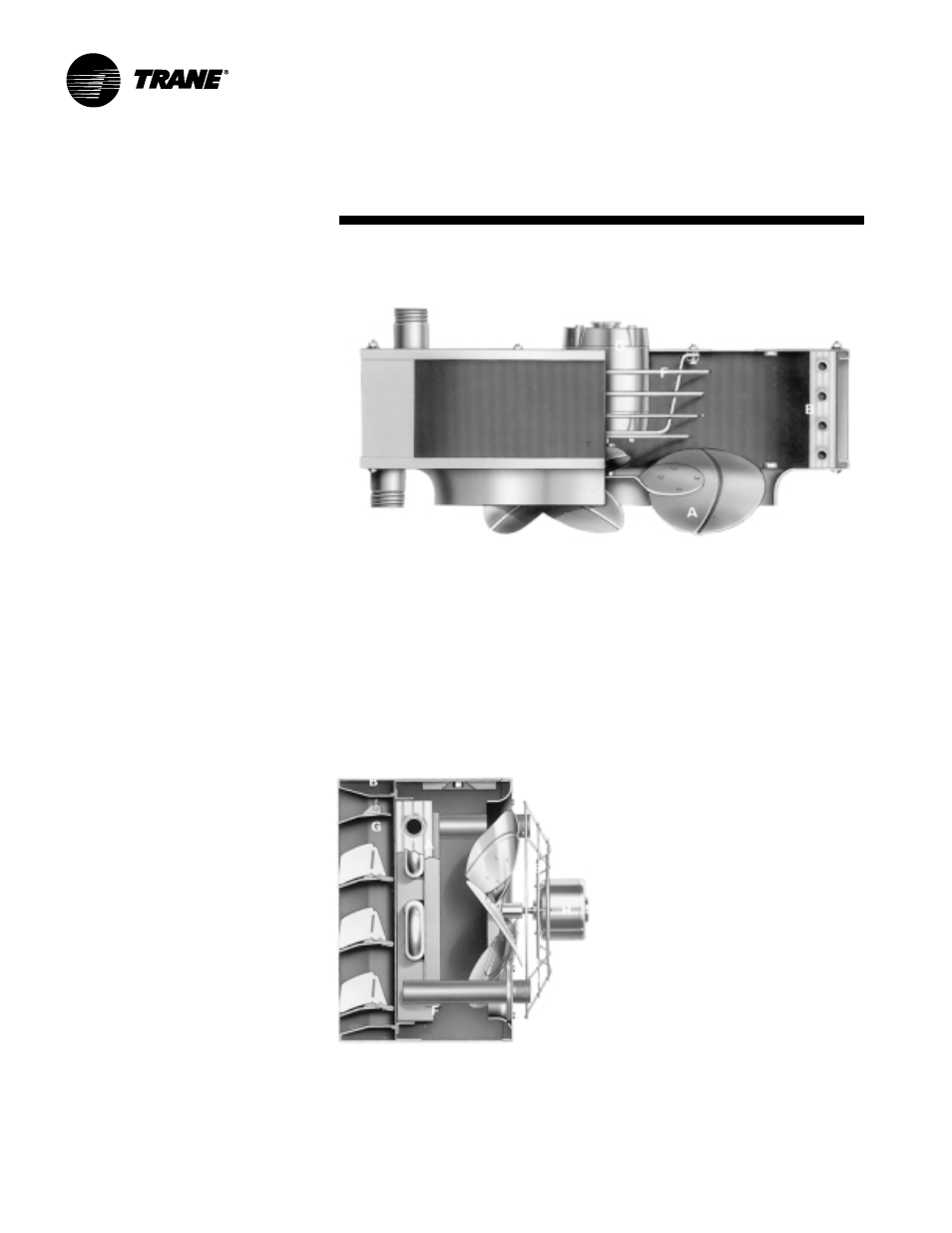

Model S
A
Exclusive, compact one-row
serpentine coil features high
performance Sigma-Flo fins.
B
One-piece wraparound casing with
picture-frame front panel combines
attractiveness with durability.
C
Heavy-gauge, one-piece back panel
can be easily removed for quick coil
access.
D
Rear connections and a compact
design provide more headroom than
conventional units.
E
Sturdy fan guard provides stronger
motor mount and quiet operation.
F
Unique coil supports anchor coil
tubes without restricting expansion.
G
Trane horizontal louvers stay in
position with the exclusive louver
keeper design.
H
Totally enclosed industrial design
motors feature built-in overload
protection.
Model P
A
Exclusive Trane designed aluminum fans
provide smooth, nonsurge performance.
This, in turn, provides efficient, quiet
operation.
B
High performance Sigma-Flo
® fins in a
one-row coil have more efficient heat
transfer characteristics than flat fin coils.
C
Steel pipe headers are electrically
induction-brazed to coil tubes.
D
Top panel features knockout air ports
that, when removed, convert the unit
from standard to low final air
temperature, higher cfm operation.
E
Bottom plate provides drawn fan orifice
to assure smooth airflow.
F
Sturdy motor mounts absorb vibration
and anchor the motor securely.
G
Totally enclosed industrial designed
motors feature built-in overload
protection.
