LED Status Color

Description

Power

On

Green

Power On

100M

On

Green

The port is operating at the speed of
100Mbps.

Off

In 10Mbps mode or no device attached

LNK /
ACT

On

Green

The port is successfully connecting
with the device.

Blinks Green

The port is receiving or transmitting
data.

Off

No device attached.

FDX /
COL

On

Orange

The port is operating in Full-duplex
mode.

Blinks Orange Collision of Packets occurs in the port.

Off

Half-duplex mode or no device
attached.

Table 2-1. The description of LED Indicator

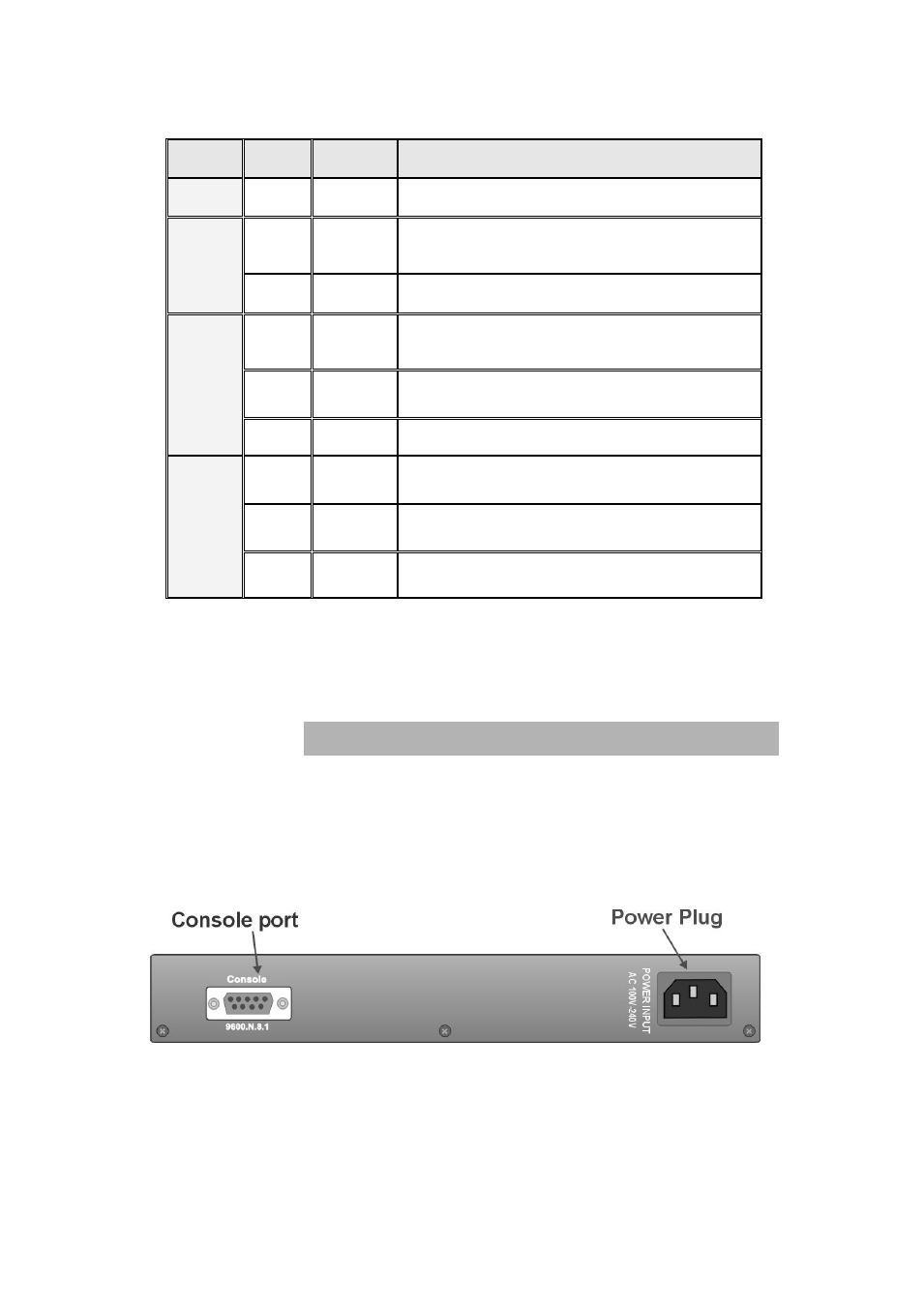

Rear Panel

The Console port and 3-pronged power plug are located at the Rear

Panel of the TE100-S810Fi as shown in Figure 2-8. The Switches will

work with AC in the range 100-240V AC, 50-60Hz.

Figure 2-7 The Rear Panel of the TE100-S810Fi
