25

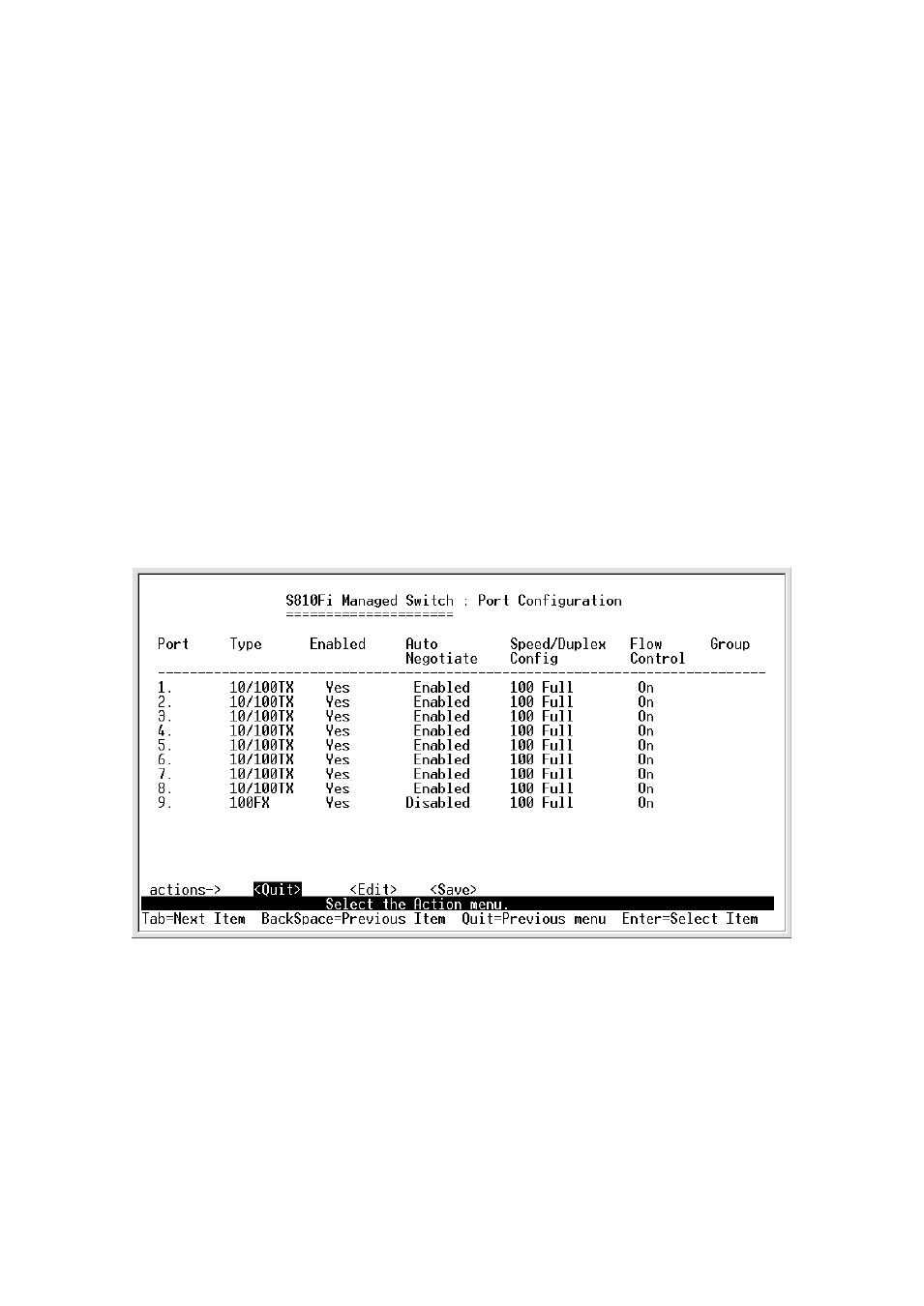

4-3-2. Port / Trunk Configuration
This page can change every port status and configure trunk group.
Press TAB key to change configure of per item.
1.Enabled: User can disable or enable this port control.
2.Auto Negotiate: User can set auto negotiation is enable or disable of
per port.
3.Speed/Duplex Config: User can set 100Mbps or 10Mbps speed on port
1~port 8, only 100Mbps on port 9, and set full-duplex or half-duplex mode.
4.Flow Control: User can set flow control function is enable or disable.
5.Group: User can set trunk group for port1~prot8. There are four trunk
groups to provided configure.
Actions->
: Exit the page of port configuration and return to previous menu.
: Configure all items. Finished configure press ESC to go back
action menu line.
: Save all configure value.
: Return to previous page to configure.
