switch venders.
IEEE 802.1Q VLAN uses a technique to insert a “tag” into
the Ethernet frames. Tag contains a VLAN Identifier (VID) that indicates
the VLAN numbers.
Support Protocol-based VLAN
In order for an end station to send packets to different VLANs, it itself has
to be either capable of tagging packets it sends with VLAN tags or
attached to a VLAN-aware bridge that is capable of classifying and tagging
the packet with different VLAN ID based on not only default PVID but also
other information about the packet, such as the protocol.

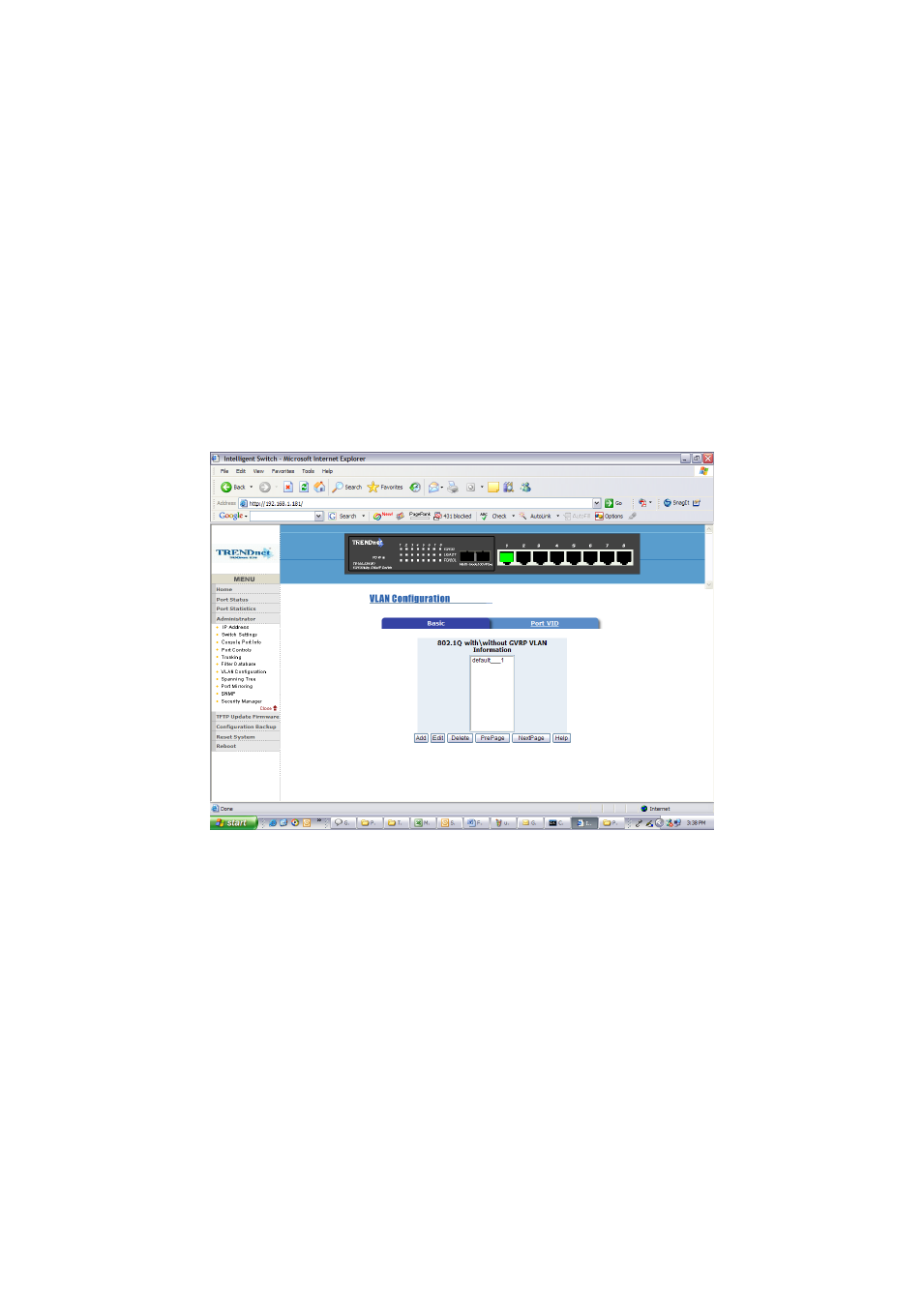

5-4-7-1. Basic
Create a VLAN and add tagged member ports to it.
1. From the main menu, click administrator -- VLAN configuration.
2. Click Add
3. Type a name for the new VLAN.
4. Type a VID (between 2-4094). The default is 1.
5. From the Available ports box, select ports to add to the switch and click
Add.
6. Click Apply
