13
Segment Application
For enterprise networks where large data broadcast are constantly
processed, this switch is suitable for department user to connect to the
corporate backbone.

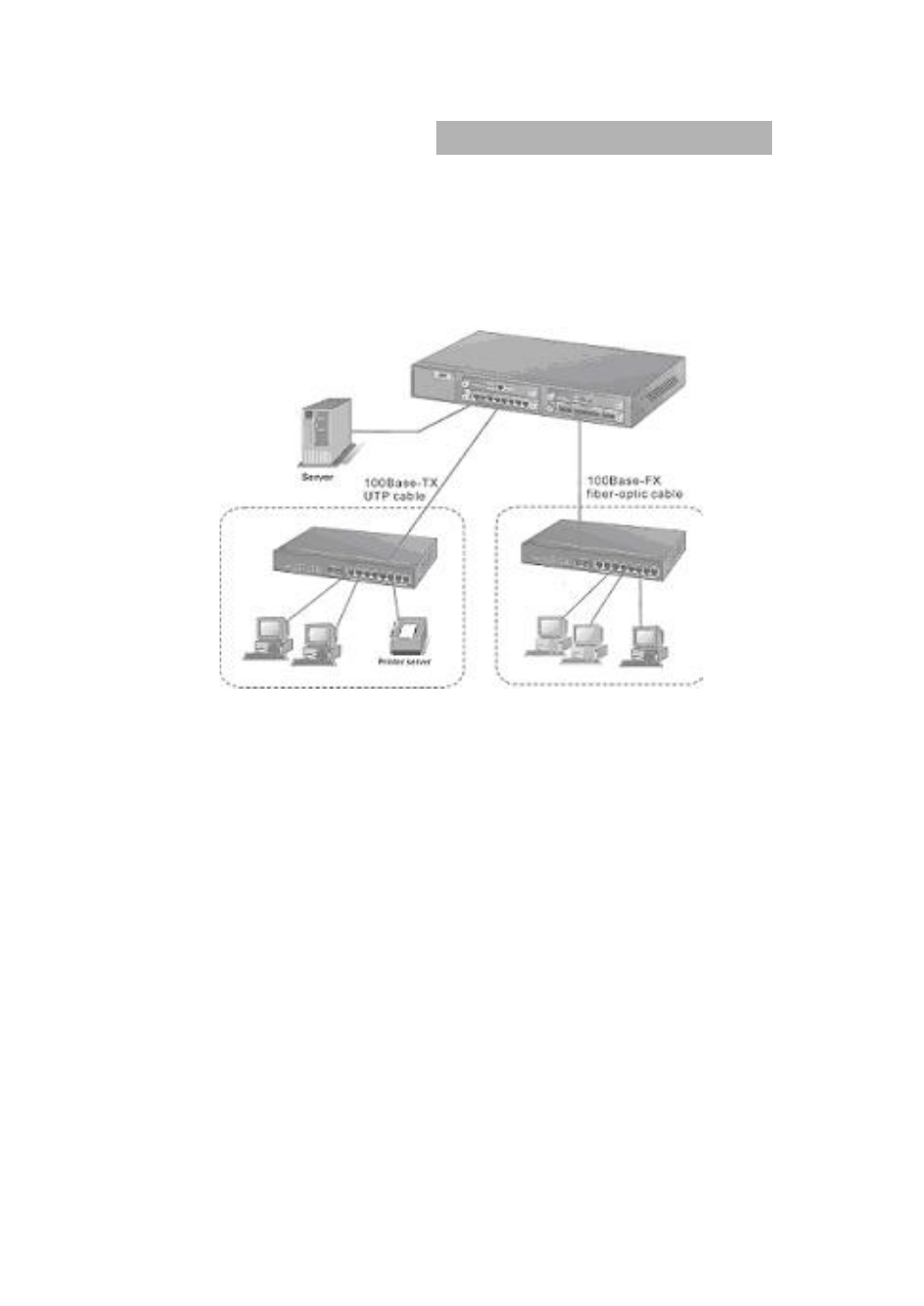

Figure 3-2 Segment Application
You can use the TE100-S810Fi to connect PCs, workstations, and
servers to each other by connecting these devices directly to the
Switch. All the devices in this network can communicate with each
other. Connecting servers to the backbone switch allow other users to
access the server’s data.
The Switch automatically learns node address, which are
subsequently used to filter and forward all traffic based on the
destination address. You can use any of the RJ-45 port of the
TE100-S810Fi to connect with another Switch or Hub to interconnect
each of your small switched workgroups to form a larger switched
network.
