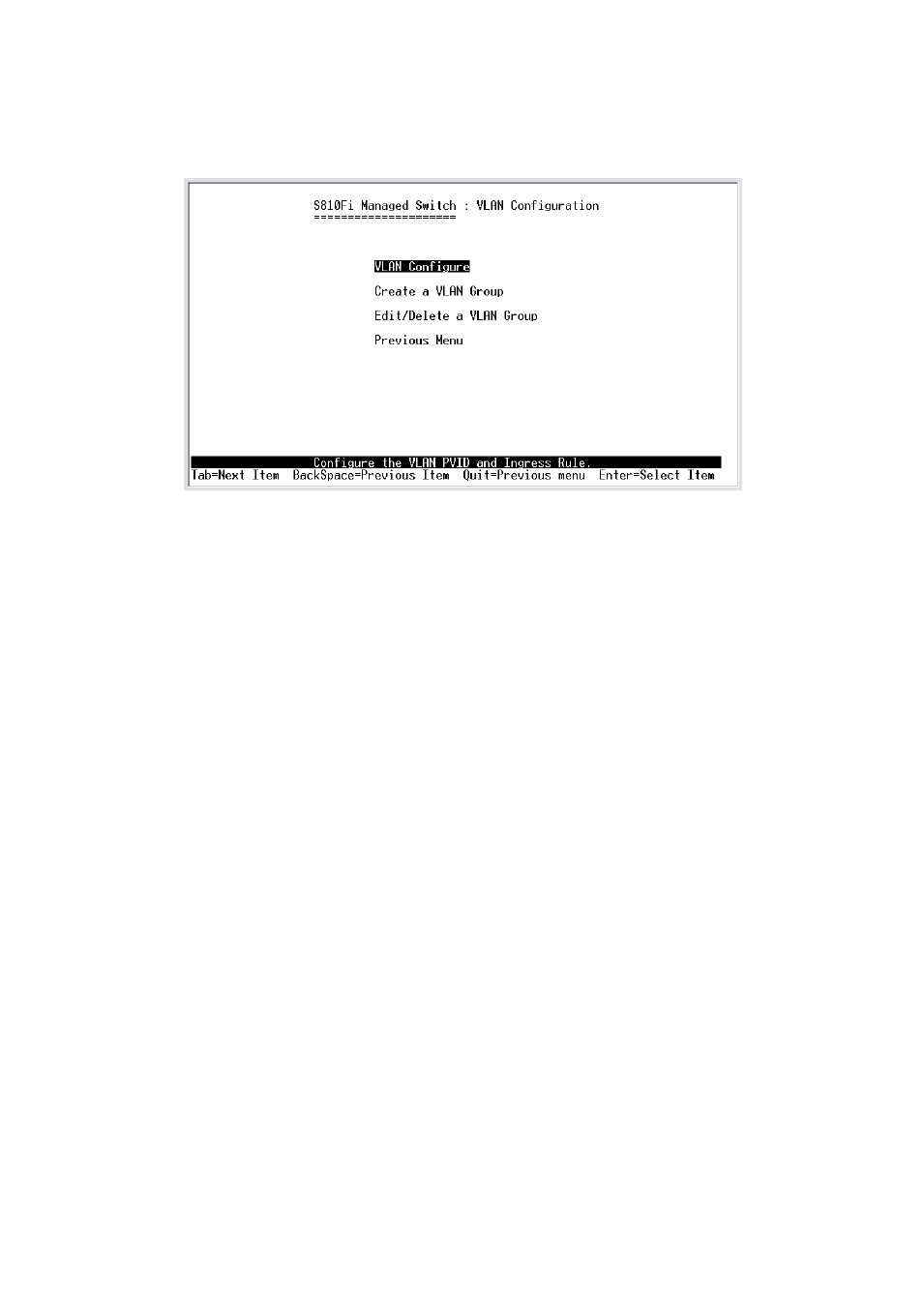

4-3-4. VLAN Configuration
4-3-4-1. VLAN Configure
1.PVID (Port VID): Set the port VLAN ID that will be assigned to untagged
traffic on a given port. This feature is useful for accommodating devices
that you want to participate in the VLAN but that don’t support tagging.
Only one untagged VLAN is allowed per port.
2.Ingress Filter 1: It
’s matches that Ingress Filtering Rule 1 on web.
Forward only packets with VID matching this port’s configured VID. Press
Space key to choose forward or drop the frame that VID not matching this
port’s configured VID.
3.Ingress Filter 2: It matches that Ingress Filtering Rule 2 on web. Drop
untagged frame.
Press Space key to choose drop or forward the untagged frame.
